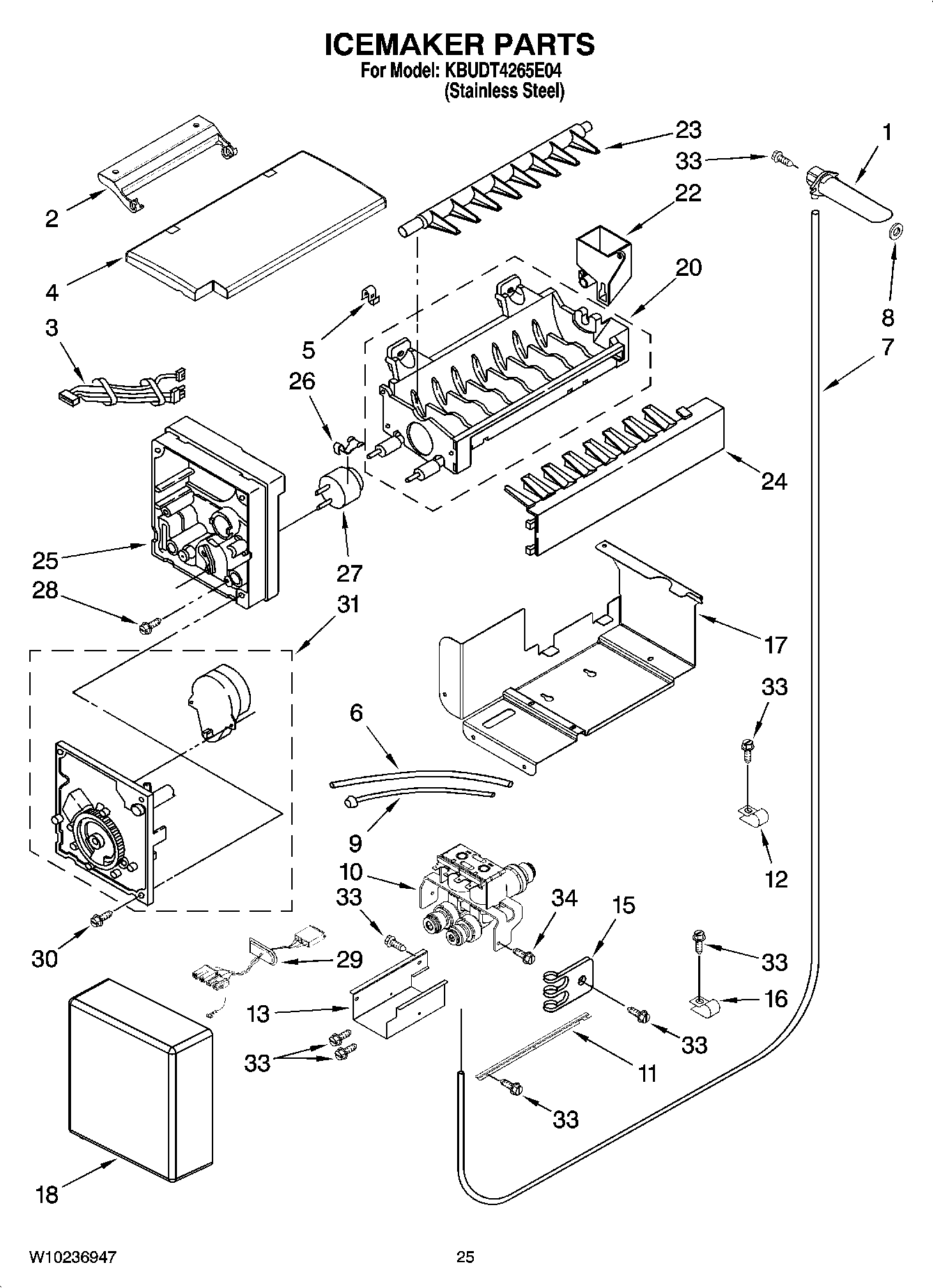

KBUDT4265E04 15 – ICEMAKER PARTS

Products

Position	Product
	Cleaner, Stainless Steel
	Following Parts Not Illustrated (Optional Parts Only)
1	W10460127 Whirlpool Refrigerator Inlet Tube
2	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
3	Wire Assembly, Icemaker
4	Cover, Icemaker
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	Water Tube
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WP2317883 Whirlpool Water Inlet Valve
11	Support, Valve
12	W10833902 Whirlpool Refrigerator Clamp
13	Shield, Valve
15	WP488366 Whirlpool Refrigerator Clamp
16	Clamp, Tube
17	2252228 Whirlpool Refrigerator Bracket
18	Cover
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	Wire Assembly (Water Valve)
30	WP681249 Whirlpool Screw Assembly
31	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
33	W11624204 Whirlpool Screw
34	WP489069 Whirlpool Compactor Screw
100	WPW10277448 Whirlpool Icemaker Assembly
