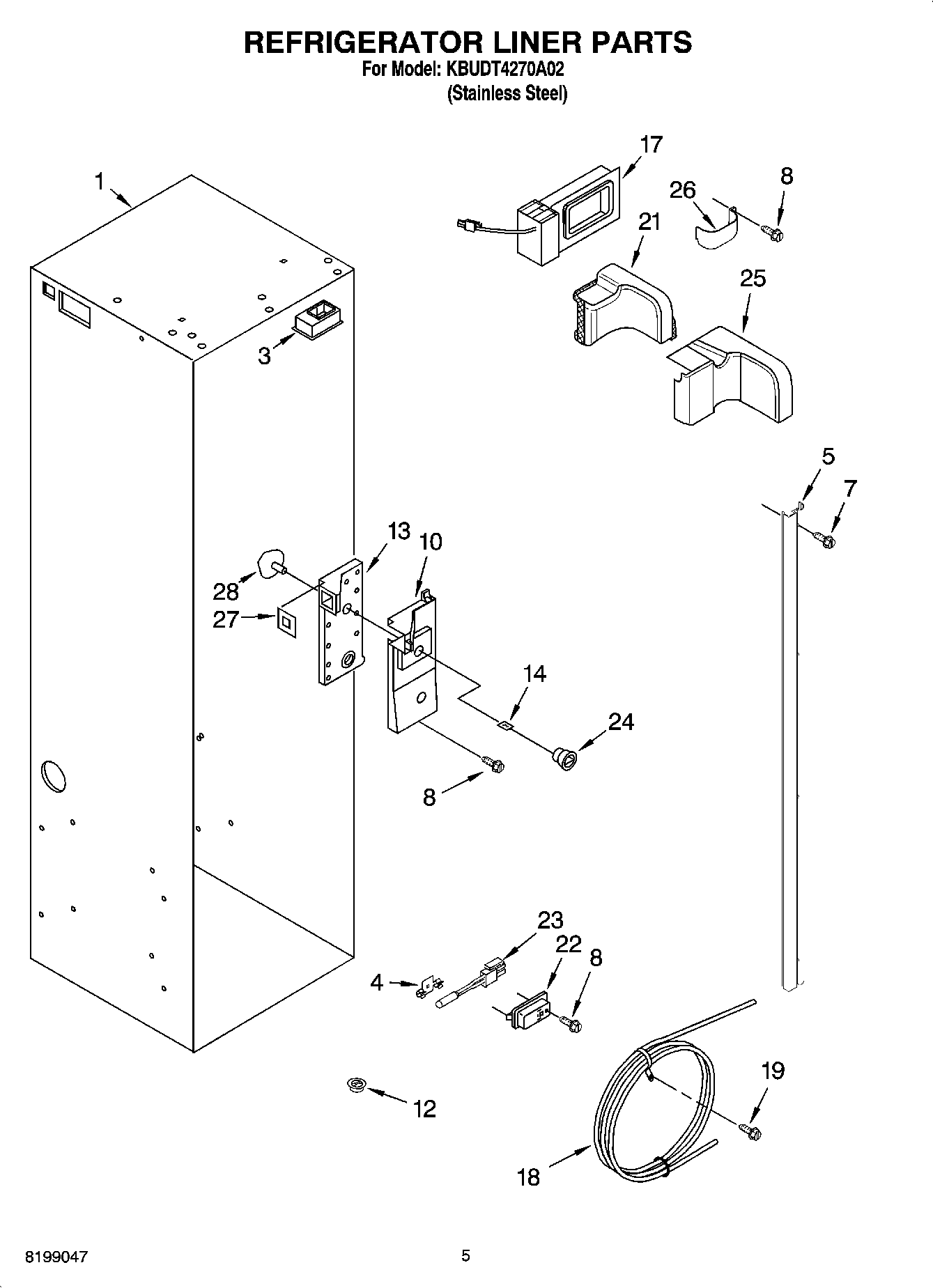

KBUDT4270A02 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	2208970 Whirlpool Refrigerator Air Duct
4	Clip, Thermistor
5	Ladder, Shelf (Right Side)
5	Ladder, Shelf (Left Side)
7	SCREW
8	WP488729 Whirlpool Refrigerator Door Screw
10	Meat Pan, Air Duct Cover
12	2171846 Whirlpool Refrigerator Release Valve
13	Meat Pan, Air Duct
14	Retainer, Knob
17	WP2221296 Whirlpool Air Baffle
18	WP2256126 Whirlpool Refrigerator Reservoir
19	Screw (2)
21	Diffuser Assembly
22	1116793 Whirlpool Refrigerator Cover
23	WP2188820 Whirlpool Refrigerator Thermistor
24	Control Knob, Meat Pan
25	2309087 Whirlpool Refrigerator Cover
26	2003577 Whirlpool Refrigerator Guard
27	Seal, Air Duct
28	Damper Control, Meat Pan
