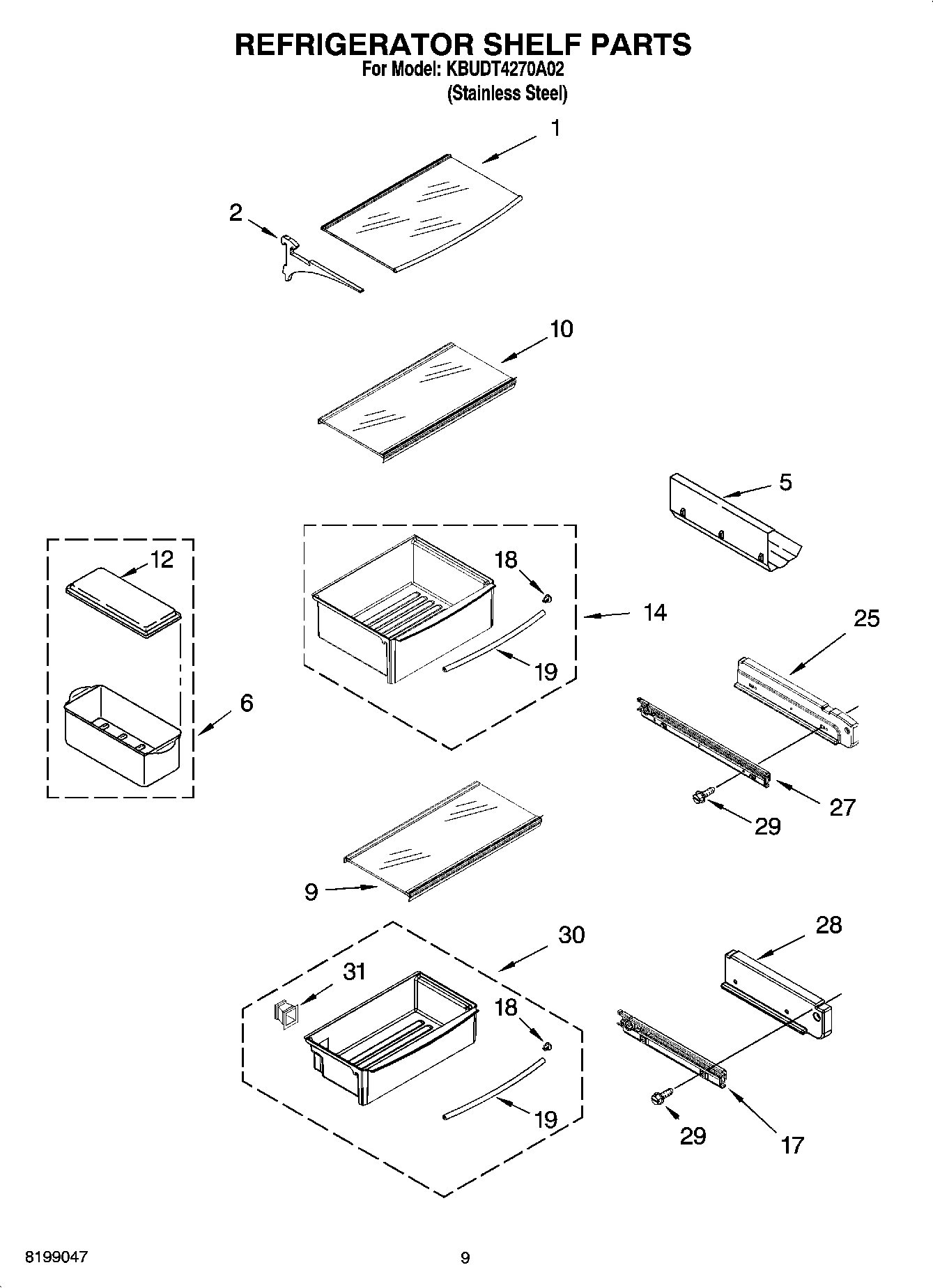

KBUDT4270A02 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Glass-Shelf Assy.
2Sidearm, Shelf (8)
5W10777924 Whirlpool Refrigerator Wine Rack
6Egg Bin Assembly
9Cover, Meat Pan
10Cover, Crisper
12Cover
14Crisper Pan (2)
17Glide, Short (Right Side)
17Glide, Short (Left Side)
18Trim-Endcap, Handle
19Trim, Handle
25Spacer, Crisper (Right Side)
25Spacer, Crisper (Left Side)
27Glide, Long (Left Side (2))
27Glide, Long (Right Side (2))
28Spacer, Meat Pan (Left Side)
28Spacer, Meat Pan (Right Side)
29WP488729 Whirlpool Refrigerator Door Screw
30Pan Assembly Meat
31Duct, Meat Pan
