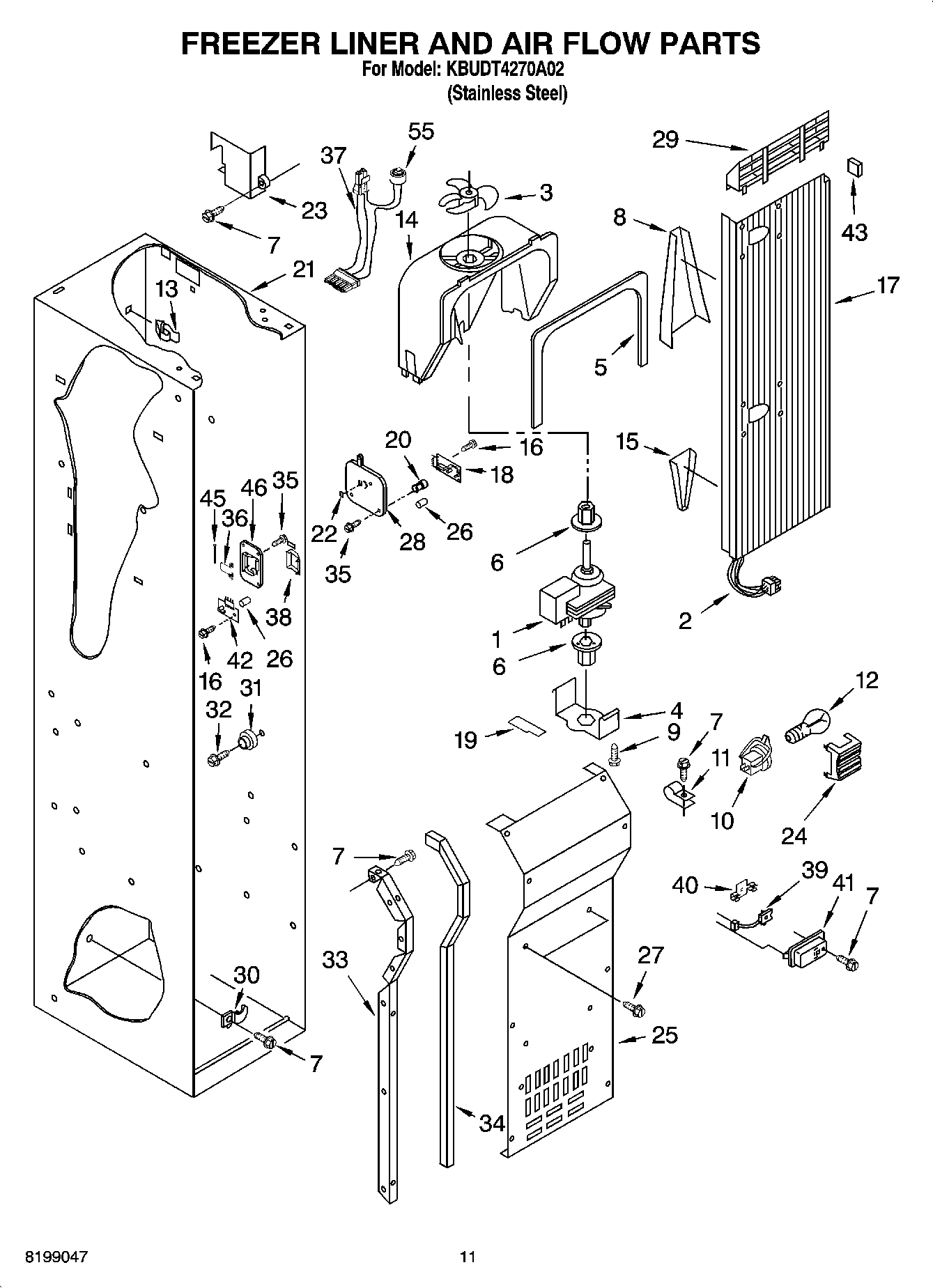

KBUDT4270A02 08 – FREEZER LINER AND AIR FLOW PARTS

KBUDT4270A02 08 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

KBUDT4270A02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1WP2315548 Whirlpool Refrigerator Evaporator Motor
2Harness, Wire
3WP2169142 Whirlpool Fan Blade
4WP2155590 Whirlpool Refrigerator Retainer
5WP2302817 Whirlpool Refrigerator Gasket
6WP2176759 Whirlpool Refrigerator Grommet
7W11624204 Whirlpool Screw
8Deflector, Air Duct
9WP489128 Whirlpool Refrigerator Screw
104387478 Whirlpool Refrigerator Light Socket
11Clamp, Tube
12W10887190 Whirlpool Refrigerator Light Bulb
132215823 Whirlpool Refrigerator Clip
14WP2182120 Whirlpool Refrigerator Scroll Fan
15Deflector, Air Duct
162006254 Whirlpool Refrigerator Screw
17Air Duct
192209066 Whirlpool Refrigerator Fan Block
198201798 Whirlpool Refrigerator Fan Block
20WP2198643 Whirlpool Refrigerator Lens
21Liner (Not A Serviceable Part)
22Slide, Icemaker Shut Off
23Cover, Air Outlet
24Light Shield
25Cover, Evaporator
26Tube, P.C. Board
27WP488729 Whirlpool Refrigerator Door Screw
282259496 Whirlpool Cover Assembly
29Diffuser, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WP3400806 Whirlpool Screw
332259355 Whirlpool Refrigerator Evaporator Rail
33Evaporator, Cover Rail (Left Side)
342220904 Whirlpool Refrigerator Gasket
35WPW10142283 Whirlpool Refrigerator Screw
36WP2198635 Whirlpool Refrigerator Spring
37Harness, Evap Fan (Includes Item 55)
38WP2198633 Whirlpool Refrigerator Flipper
39WP2188820 Whirlpool Refrigerator Thermistor
40Clip, Thermistor
411116793 Whirlpool Refrigerator Cover
42W10757851-includeCORE Whirlpool Electronic Control+Core
43Gasket, Air Baffle
45WP2198634 Whirlpool Door Pin
46Cover, Emitter
55WP2306462 Whirlpool Refrigerator Bimetallic Defrost
