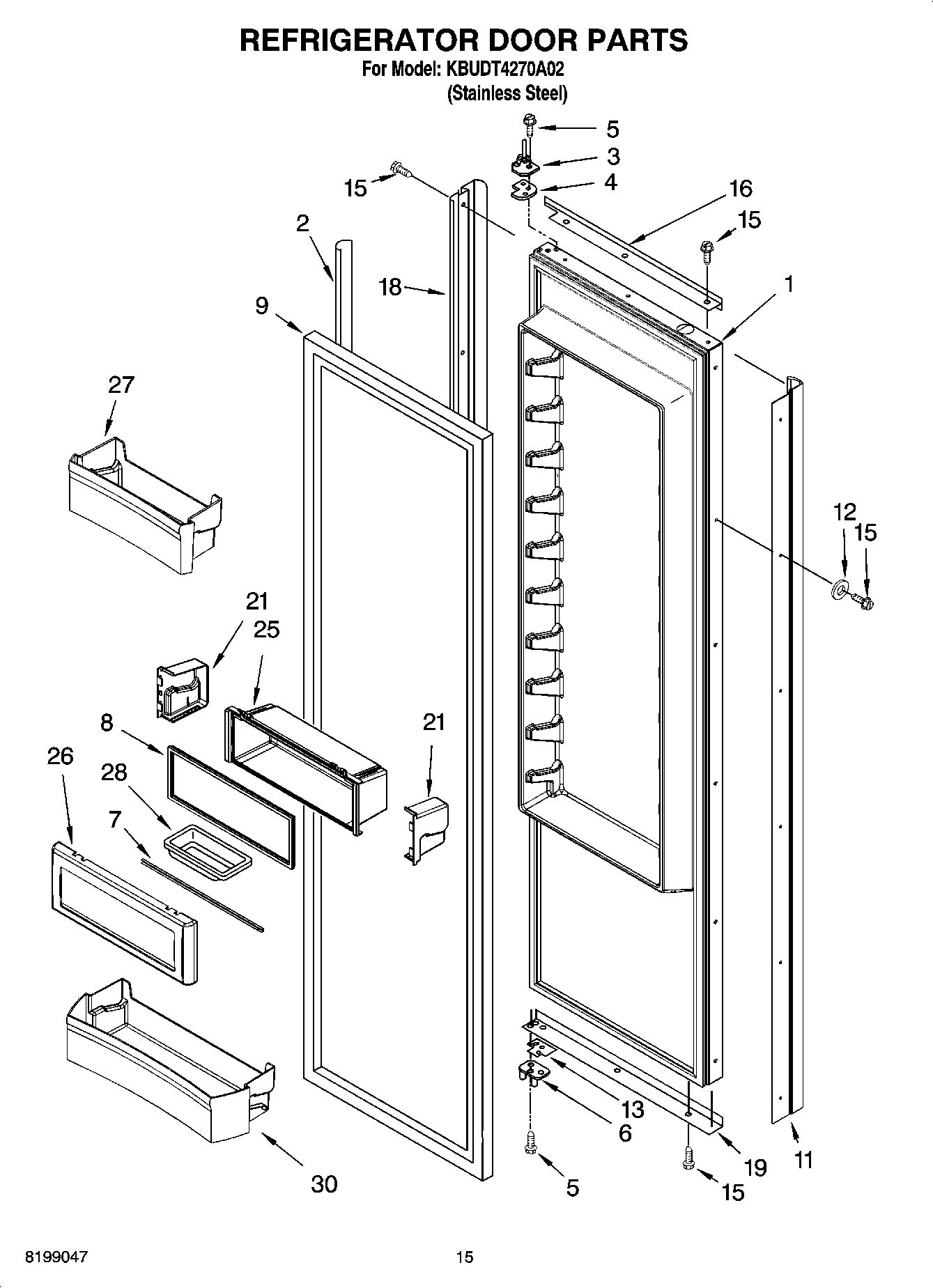

KBUDT4270A02 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Cover, Screw
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11448696 Whirlpool Refrigerator Bin
8	Gasket, Utility Bin
9	WP2266902 Whirlpool Refrigerator Door Gasket
11	Handle, Door (Etched Aluminum)
12	Washer
13	Door Spacer, Bottom
15	WP8281250 Whirlpool Refrigerator Screw
16	Trim (Top) (Etched Aluminum)
18	Trim-Door, (Hinge Side)
19	Trim (Bottom) (Etched Aluminum)
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
25	W10323042 Whirlpool Cantilever Bin
26	W11553221 Whirlpool Refrigerator Door Compressor
27	Door Shelf
28	Butter Tray
30	Shelf, Door
