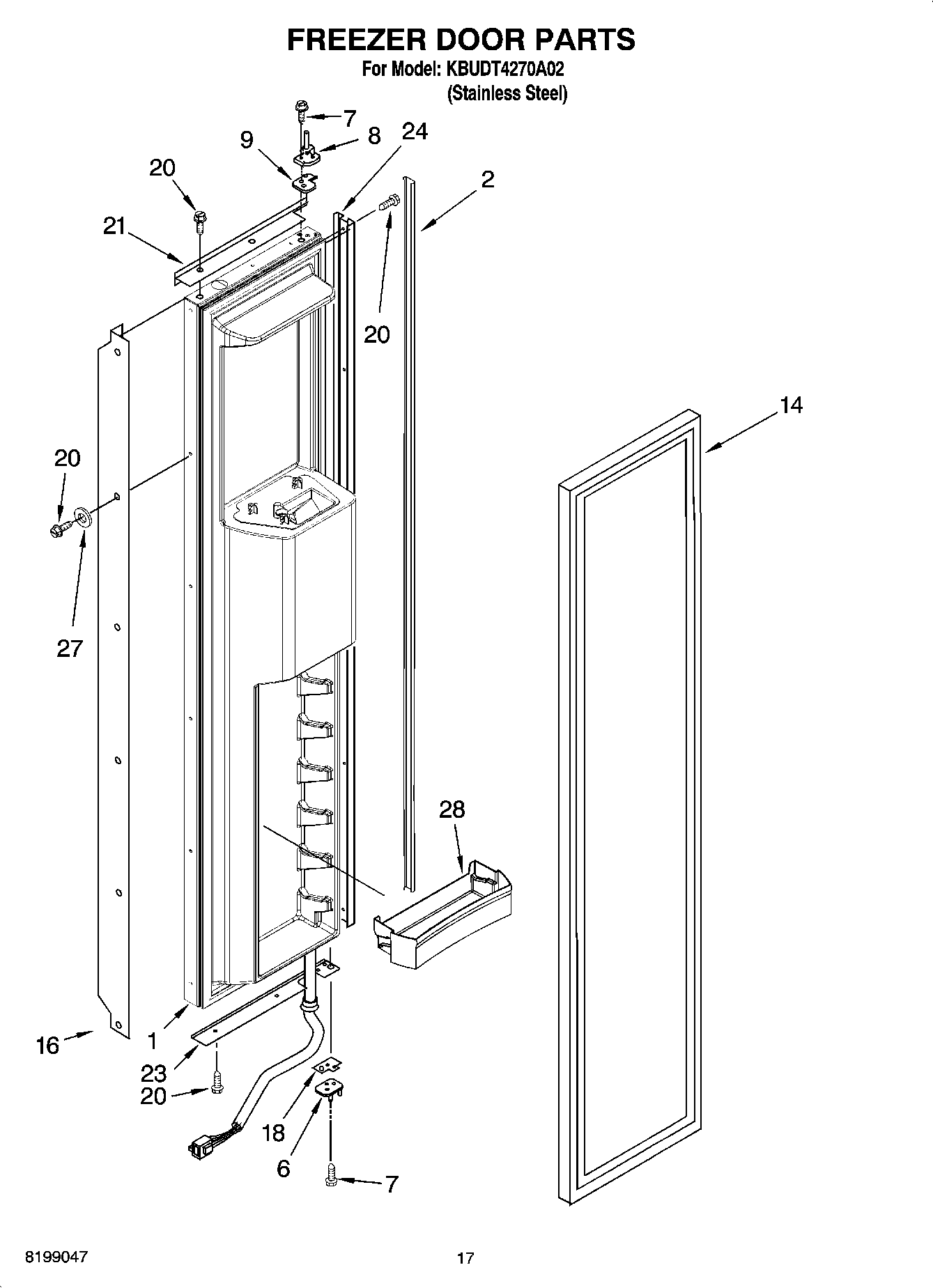

KBUDT4270A02 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door, Service (Includes Dispenser Items)
2Cover, Screw
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14WP2266905 Whirlpool Refrigerator Door Gasket
16Handle, Door (Etched Aluminum)
18Door Spacer, Bottom
20WP8281250 Whirlpool Refrigerator Screw
212005020 Whirlpool Refrigerator Door Trim
23Trim (Bottom) (Etched Aluminum)
24Trim-Door, (Hinge Side)
27Washer
28Bin, Shelf F.C. (3)
28F.C. (3)
