KBUDT4270A02 12 – DISPENSER AND FRONT PARTS

KBUDT4270A02 12 – DISPENSER AND FRONT PARTS

Written by

in

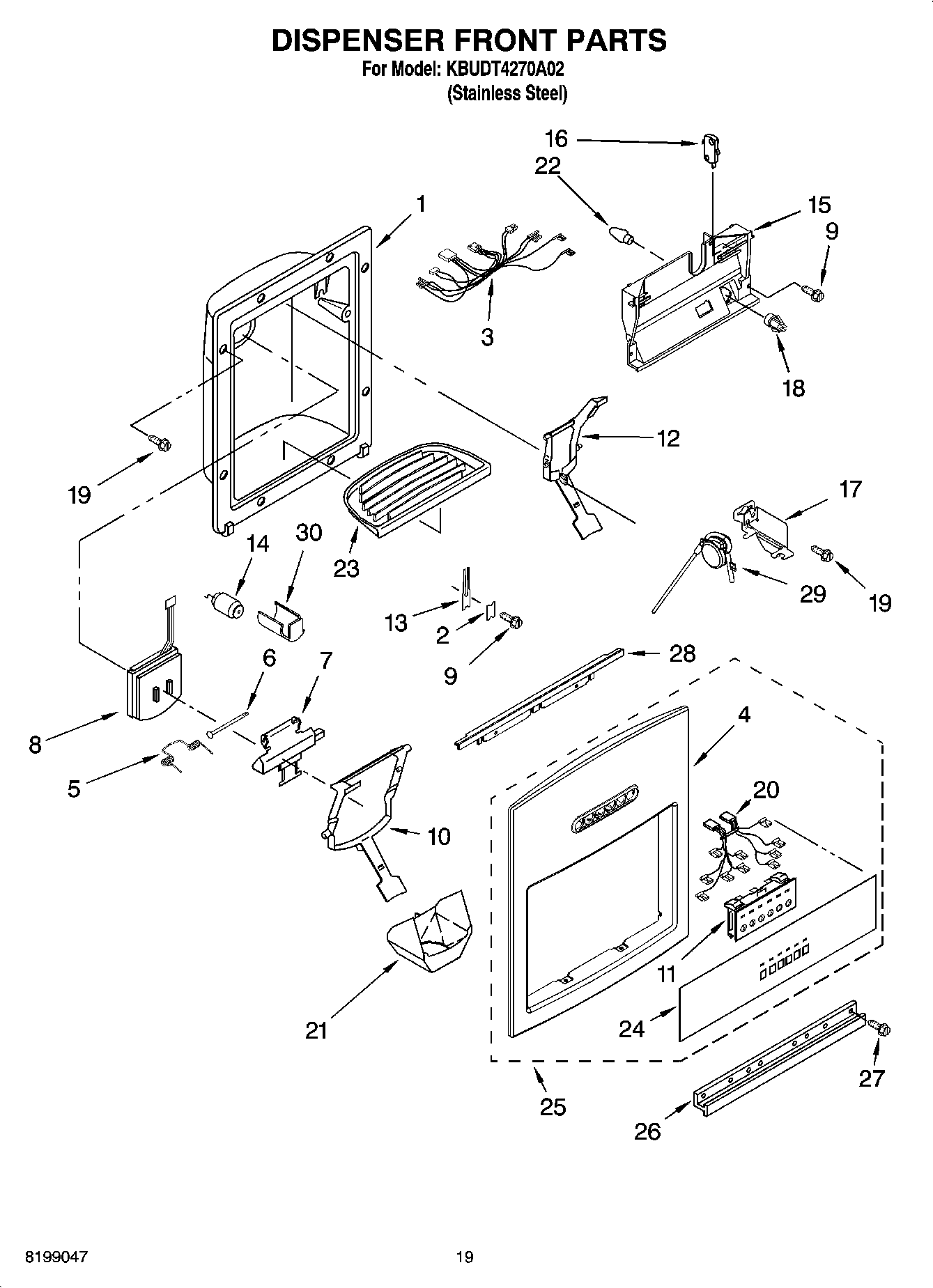

KBUDT4270A02 12 – DISPENSER AND FRONT PARTS

Products

PositionProduct
1Housing, Dispenser (Not Serviced)
2WP2195051 Whirlpool Refrigerator Clip
3Wire Assembly
4Cover, Dispenser (Not Serviced- Order Item 25)
5WPW10224328 Whirlpool Refrigerator Spring
6WP2196195 Whirlpool Refrigerator Door Pin
7Door Mechanism Assembly
8WP2180353 Whirlpool Dispenser Door
9WP3400906 Whirlpool Refrigerator Screw
10Lever, Ice Dispenser
11Switch Assembly (Not Available Order 25)
12Lever, Water Dispenser
13WP2194719 Whirlpool Refrigerator Clip
14Delay Mechanism
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP2162361 Whirlpool Switch
172259209 Whirlpool Refrigerator Bracket
182180200 Whirlpool Refrigerator Socket
19WP489128 Whirlpool Refrigerator Screw
20Harness, Switch Jumper Assembly
21WP2180224 Whirlpool Dispenser Funnel Guide
22WP22002263 Whirlpool Dryer 10W Light Bulb
23Grille, Overflow
24Overlay, Cover (Not Available Order 25)
25Front Cover Assembly (Includes Items- 4,11,20 & 24)
26Trim, Front (Bottom)
27WP8281250 Whirlpool Refrigerator Screw
28Trim, Front (Top)
298201537 Whirlpool Water Tubing Assembly
30Sleeve, Delay Mechanism
