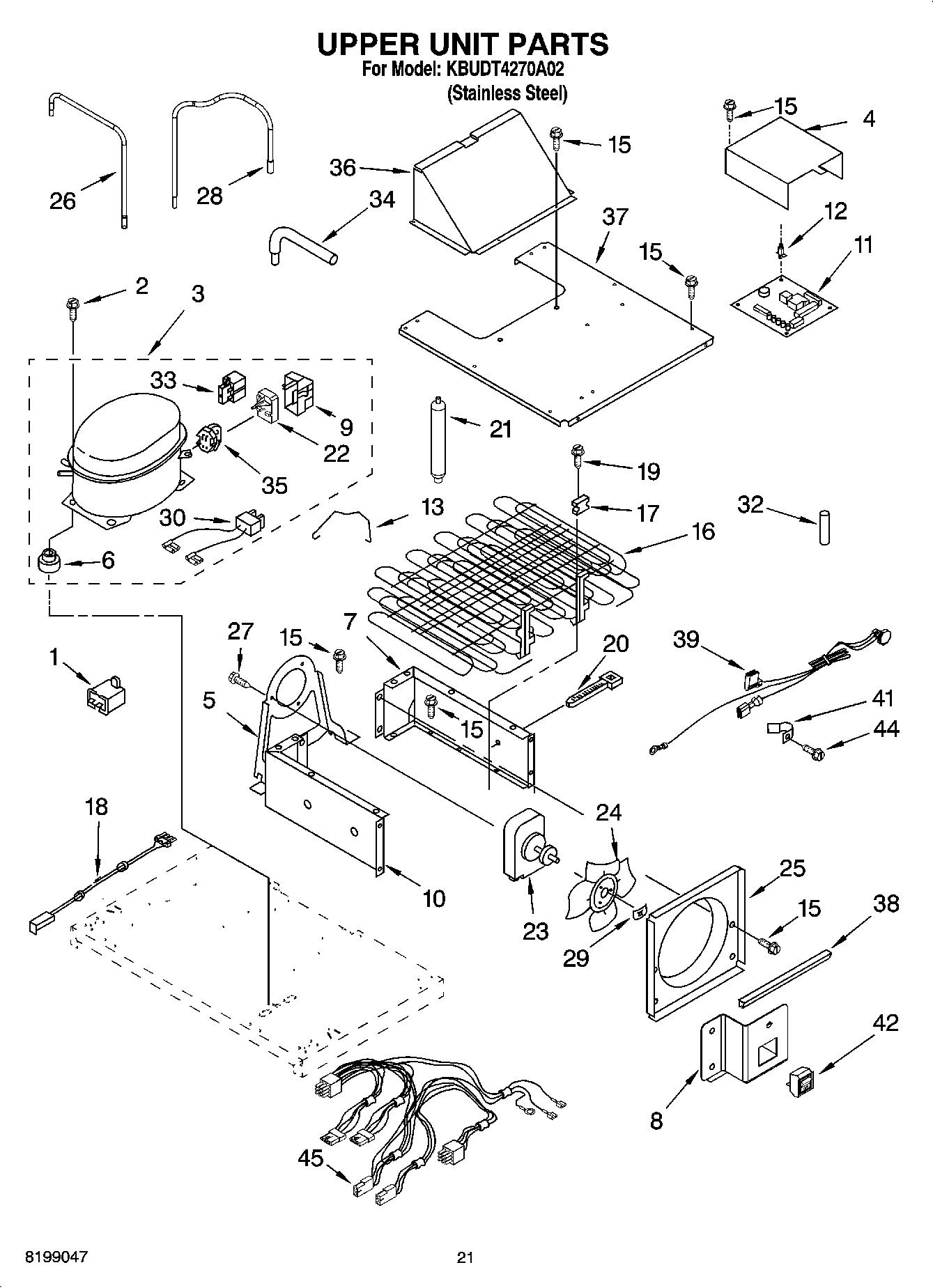

KBUDT4270A02 13 – UPPER UNIT PARTS

Products

Position	Product
1	WPW10662129 Whirlpool Refrigerator Run Capacitor
3	W10309994 Whirlpool Refrigerator Compressor
4	Housing, Control Board
5	Bracket, Fan Motor
6	876811 Whirlpool Grommet
6	WP4387558 Whirlpool Refrigerator Compressor Grommet
7	Shroud, Condenser (Right)
8	Bracket, Switch
9	WP2162358 Whirlpool Refrigerator Terminal Cover
10	Shroud, Condenser (Left)
11	Control Board
12	WP2203075 Whirlpool Refrigerator Spacer
13	Clip, Retaining
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	Grommet (4)
18	WP2187629 Whirlpool Refrigerator Wire Jumper
19	Screw
20	WPW10339879 Whirlpool Wire Tie
21	W10843121 Whirlpool Refrigerator Tube
22	WP2319792 Whirlpool Refrigerator Start Device
23	MOTOR-COND/INCL BLADE&BRKT
24	Blade, Fan
25	Orifice, Fan
26	Tube, Transition (Condenser/Drier)
27	8281160 Whirlpool Screw
28	Tube, Transition (Heat Loop)
29	WP486692 Whirlpool Refrigerator Nut
30	WP2172890 Whirlpool Refrigerator Wire
32	Sleeve, Condenser
33	W10920279 Whirlpool Refrigerator Start Relay
34	W10528578 Whirlpool Refrigerator Tube
35	WP2154697 Whirlpool Refrigerator Overload
36	Cover, Fan
37	Cover, Condenser
38	Grommet, Edge
39	Service Cord
41	549193 Whirlpool Refrigerator Power Clamp
42	WP2266802 Whirlpool Refrigerator Switch
44	W11624204 Whirlpool Screw
45	WPL ARI80432A4
45	WPL ARI80431A4
45	Wiring Harness, Unit Compartment
45	WPL ARI80433A2
45	VALVE, ACCESS (5/8“)
45	978030 Whirlpool Refrigerator Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	978026 Whirlpool Refrigerator Primary Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	VALVE, ACCESS (1/2“)
45	WP978025 Whirlpool Refrigerator Valve
