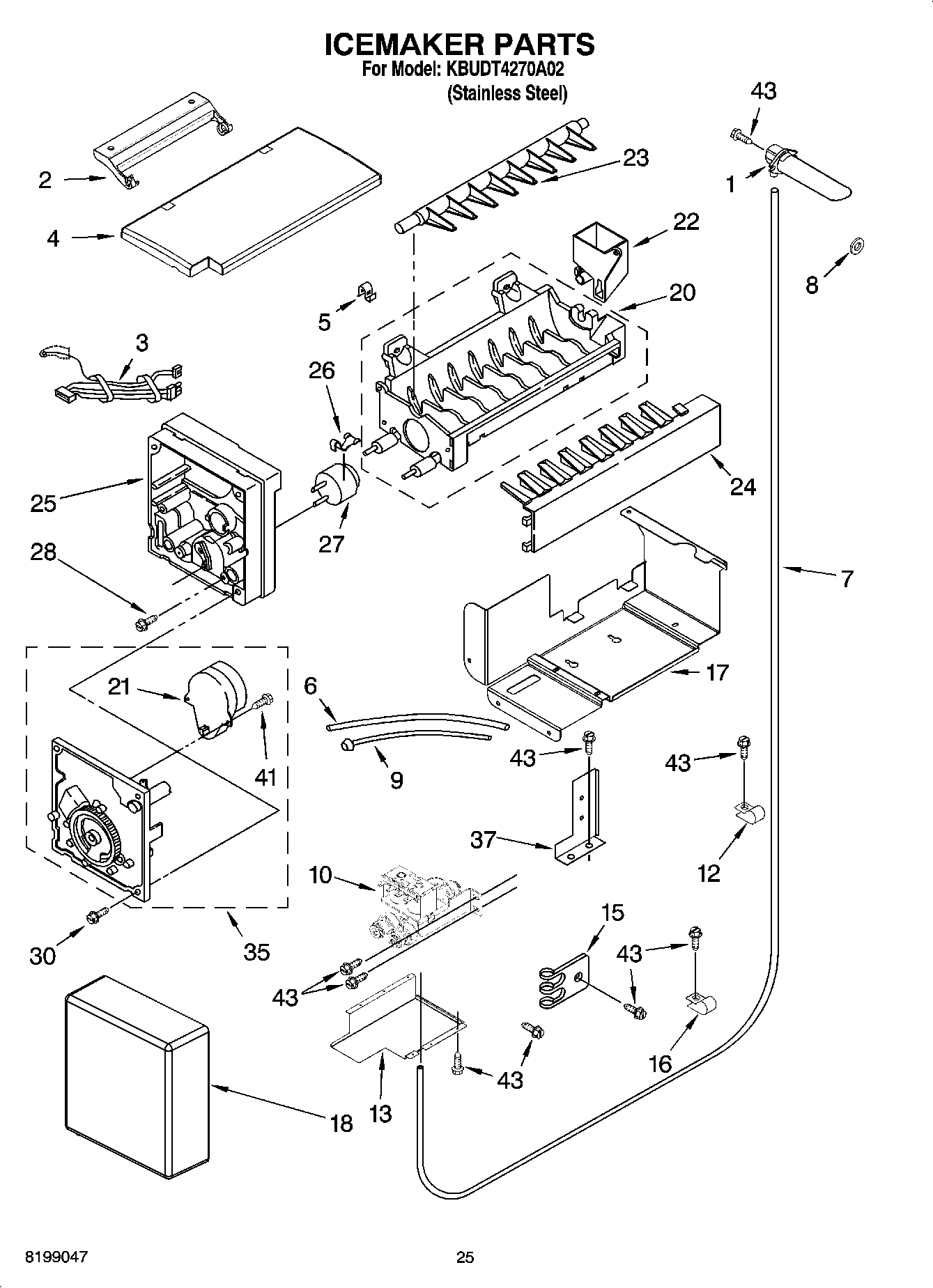

KBUDT4270A02 15 – ICEMAKER PARTS

Products

Position	Product
1	W10460127 Whirlpool Refrigerator Inlet Tube
2	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
3	Wire Assembly, Icemaker
4	Cover, Icemaker
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Water Inlet Tube Assembly
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WP2188786 Whirlpool Refrigerator Inlet Valve
12	W10833902 Whirlpool Refrigerator Clamp
13	Cover, Bottom
15	WP488366 Whirlpool Refrigerator Clamp
16	Clamp, Tube
17	2252228 Whirlpool Refrigerator Bracket
18	Cover
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
37	Water Valve Mounting Bracket
41	489136 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
100	WPW10277448 Whirlpool Icemaker Assembly
100	Complete Ice- Container Assembly
100	FOLLOWING PARTS NOT ILLUSTRATED
100	(Optional Parts Only)
