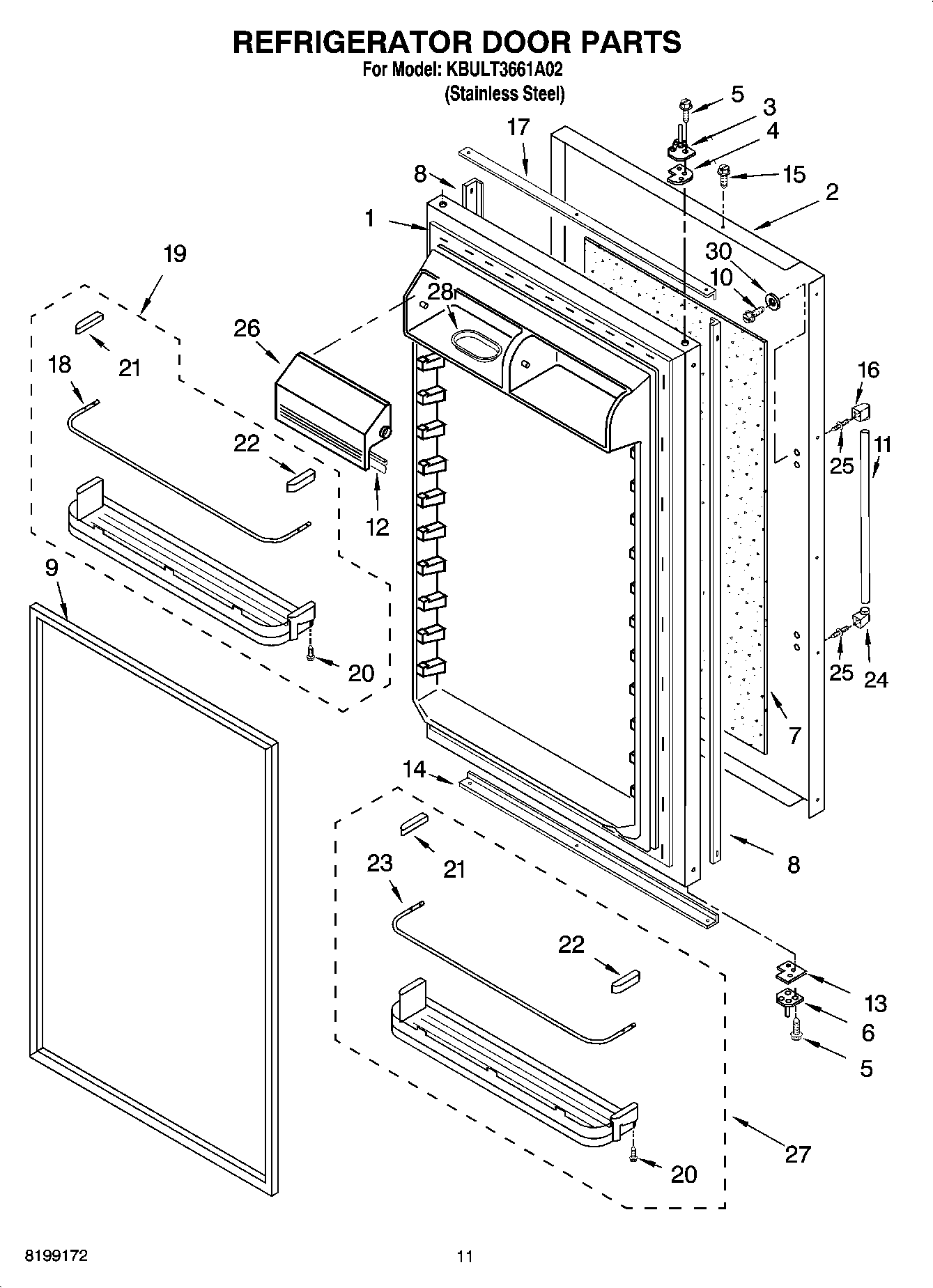

KBULT3661A02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Skin, Door (Stainless Steel)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Filler, Foam
8	Spacer, Door Edge – Side (2)
9	2302709 Whirlpool Refrigerator Door Gasket
10	WP308544 Whirlpool Screw
11	Handle-Bar, Door (Stainless Steel)
12	Gasket (2)
13	SPACER, HINGE (BOTTOM)
14	SPACER, DOOR EDGE (BOTTOM)
15	WP8281250 Whirlpool Refrigerator Screw
15	W10851443 Whirlpool Refrigerator Screw
16	Endcap, Handle
17	SPACER, DOOR EDGE (TOP)
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
24	Endcap, Handle
25	Screw, Set
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
30	W10903204 Whirlpool Refrigerator Washer
