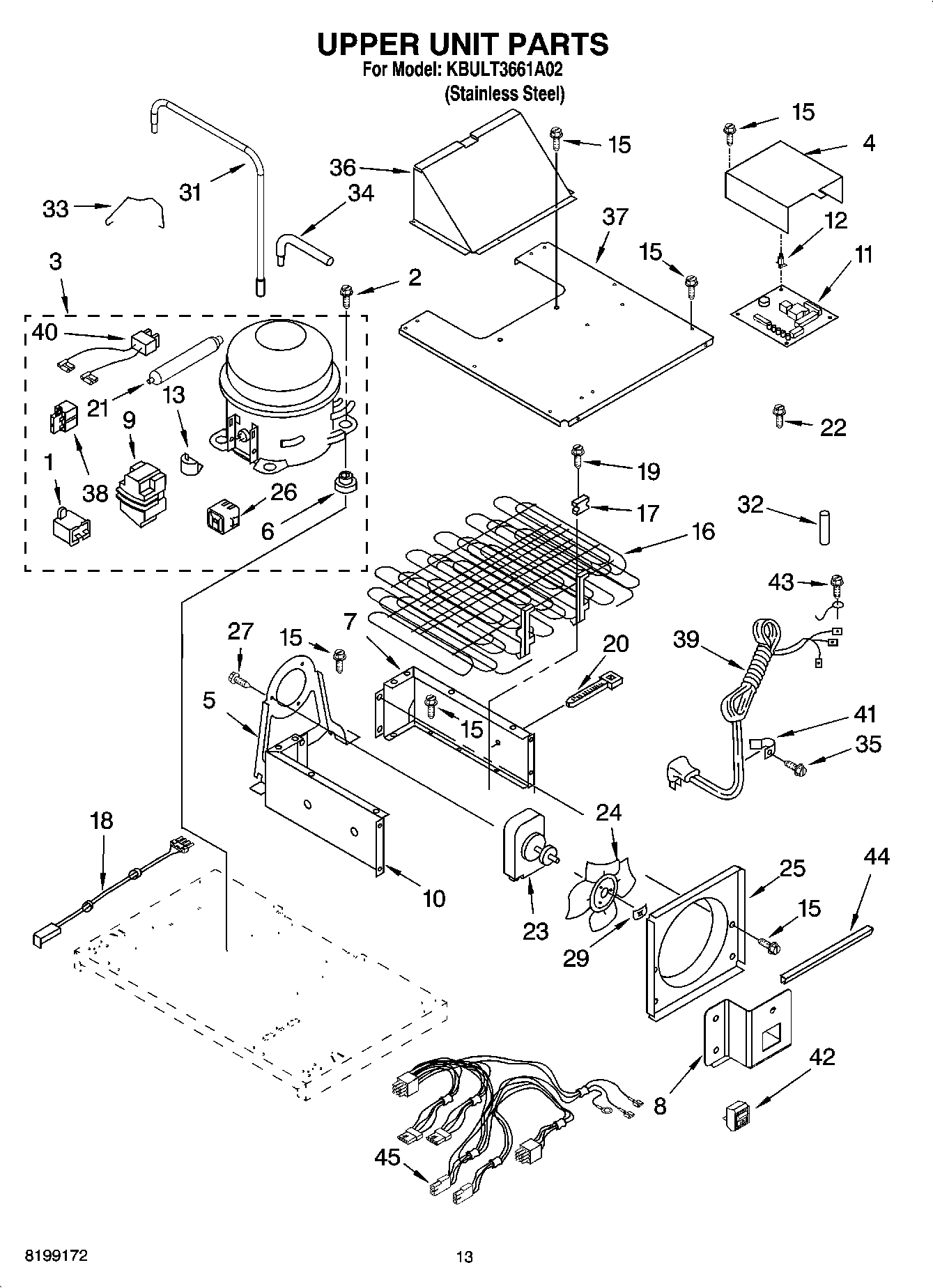

KBULT3661A02 08 – UPPER UNIT PARTS

Products

Position	Product
1	WPW10662129 Whirlpool Refrigerator Run Capacitor
3	W10309990 Whirlpool Refrigerator Compressor
4	Housing, Control Board
5	Bracket, Fan Motor
6	876811 Whirlpool Grommet
6	WP4387558 Whirlpool Refrigerator Compressor Grommet
7	Shroud, Condenser (Right)
8	Bracket, Switch
9	WP2162358 Whirlpool Refrigerator Terminal Cover
10	Shroud, Condenser (Left)
11	Control Board
12	WP2203075 Whirlpool Refrigerator Spacer
13	WP2187145 Whirlpool Refrigerator Overload
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	Grommet (4)
18	WP2187629 Whirlpool Refrigerator Wire Jumper
19	WP488163 Whirlpool Refrigerator Screw
20	WPW10339879 Whirlpool Wire Tie
21	W10843121 Whirlpool Refrigerator Tube
22	Screw
23	MOTOR-COND/INCL BLADE&BRKT
24	Blade, Fan
25	Orifice, Fan
26	WPW10189190 Whirlpool Start Device
27	8281160 Whirlpool Screw
29	WP486692 Whirlpool Refrigerator Nut
31	Tube, Transition (Condenser/Drier)
32	Sleeve, Condenser
33	Clip, Retaining
34	W10528578 Whirlpool Refrigerator Tube
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	W10920279 Whirlpool Refrigerator Start Relay
39	Service Cord
40	WP2172890 Whirlpool Refrigerator Wire
41	549193 Whirlpool Refrigerator Power Clamp
42	WP2266802 Whirlpool Refrigerator Switch
43	WP489128 Whirlpool Refrigerator Screw
44	Grommet, Edge
45	VALVE, ACCESS (5/8“)
45	Wiring Harness, Unit Compartment
45	WPL ARI80440A6
45	VALVE, ACCESS (1/2“)
45	WP978025 Whirlpool Refrigerator Valve
45	978030 Whirlpool Refrigerator Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	978026 Whirlpool Refrigerator Primary Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	WPL ARI80441A2
