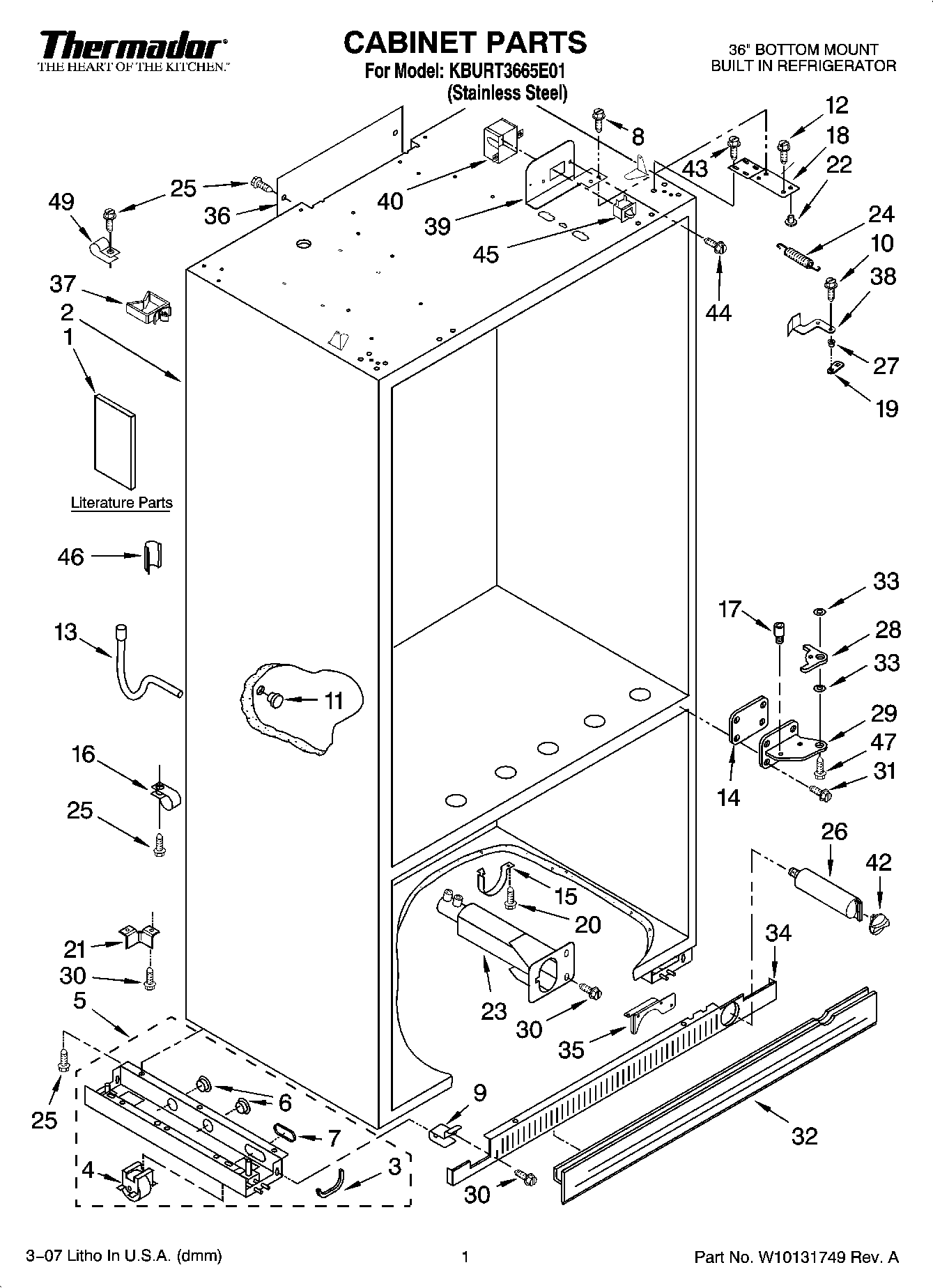

KBURT3665E01 01 – CABINET PARTS

KBURT3665E01 01 – CABINET PARTS

Written by

in

KBURT3665E01 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Energy Label
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
2Cabinet, (Not A Serviceable Part)
32307584 Whirlpool Refrigerator Grommet
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860229 Whirlpool Refrigerator Support
5W10860448 Whirlpool Refrigerator Support
6Grommet, Wiring
7Grommet, Flexible
8WP489399 Whirlpool Refrigerator Screw
9Mounting Bracket, Grille
10Screw
11Cap, Grommet
12WP8281164 Whirlpool Refrigerator Screw
13Tube, Drain Condensate
142207470 Whirlpool Refrigerator Hinge Shim
15Clamp, Filter Housing
16WP488366 Whirlpool Refrigerator Clamp
17Screw, Door Stop
182257644 Whirlpool Refrigerator Door Hinge
19Cam-Closer, Door
20WP489069 Whirlpool Compactor Screw
212006617 Whirlpool Refrigerator Bracket
22Bushing
23WP2209022 Whirlpool Refrigerator Housing
24WP2004517 Whirlpool Refrigerator Spring
25W11624204 Whirlpool Screw
26EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
27WP2316859 Whirlpool Refrigerator Bushing
28W10188434 Whirlpool Refrigerator Hinge Gap
292005101 Whirlpool Refrigerator Bottom Hinge
30WP489464 Whirlpool Refrigerator Screw
31W11474472 Whirlpool Screw
32WP2209024B Whirlpool Refrigerator Front Grille
33WP2006346 Whirlpool Refrigerator Washer
34Grille Base, Front
35Bracket, Mount (Water Filter)
362215612 Whirlpool Refrigerator Duct Cover
37CLIP, TUBE
38W10847927 Whirlpool Refrigerator Extension
392221097 Whirlpool Refrigerator Bracket
402215938 Whirlpool Refrigerator Switch Cover
42WP2186494B Whirlpool Refrigerator Filter Cap
43W11189635 Whirlpool Refrigerator Screw
44WP965173 Whirlpool Dishwasher Screw
45W11384469 Whirlpool Door Switch
469791833 Whirlpool Refrigerator Clip
47WP8533980 Whirlpool Refrigerator Screw
49W10833902 Whirlpool Refrigerator Clamp
