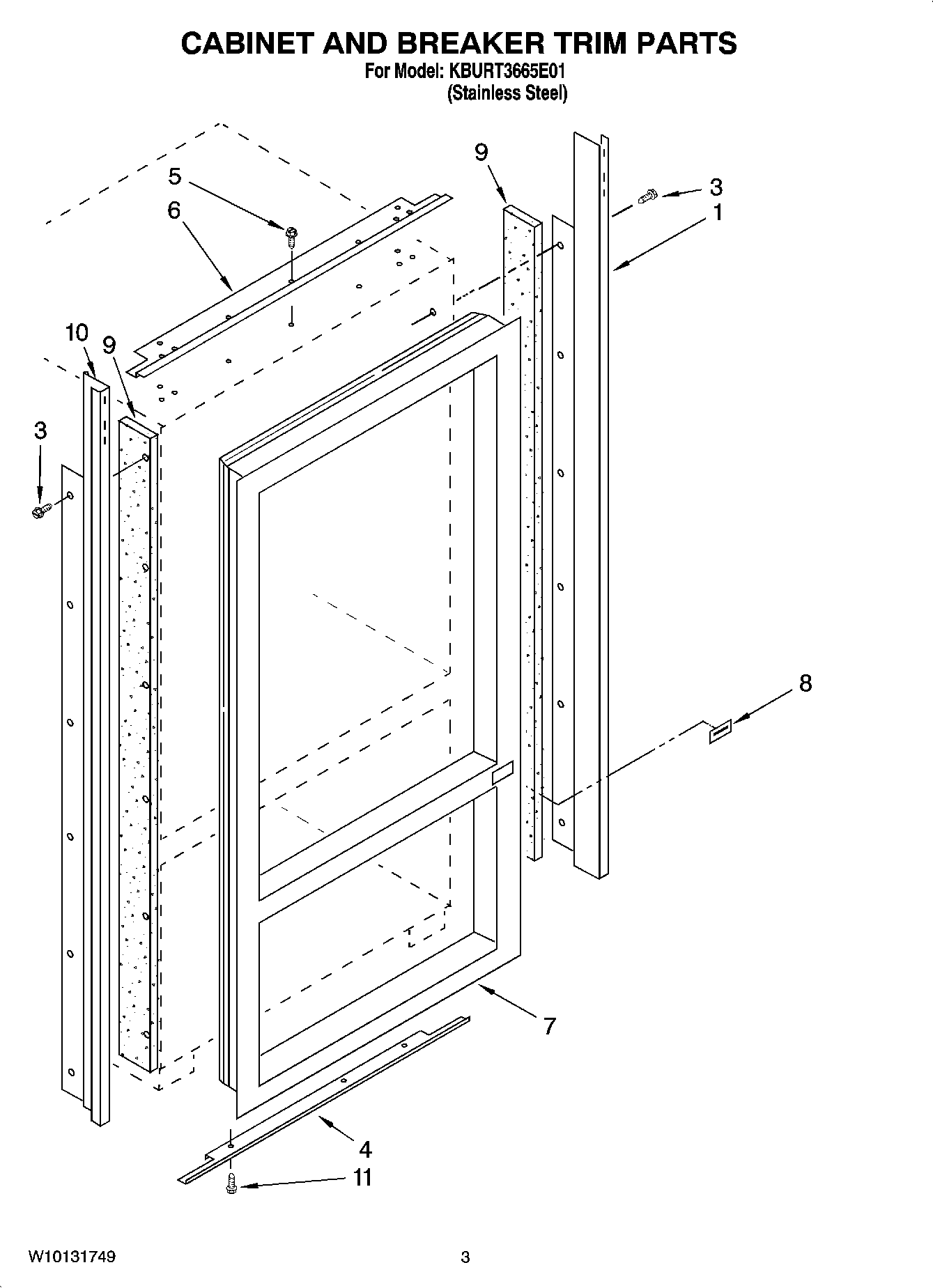

KBURT3665E01 02 – CABINET AND BREAKER TRIM PARTS

Products

PositionProduct
1Cabinet Trim, Right Side (Stainless Steel)
3WP1163283 Whirlpool Air Conditioner Screw
42316686 Whirlpool Refrigerator Cabinet Trim
5W11624204 Whirlpool Screw
6Cabinet Trim, Top
7Breaker Trim (Not Serviced)
8Cover, Hinge
9Seal, Side Trim
10Cabinet Trim, Left Side (Stainless Steel)
11WP489464 Whirlpool Refrigerator Screw
