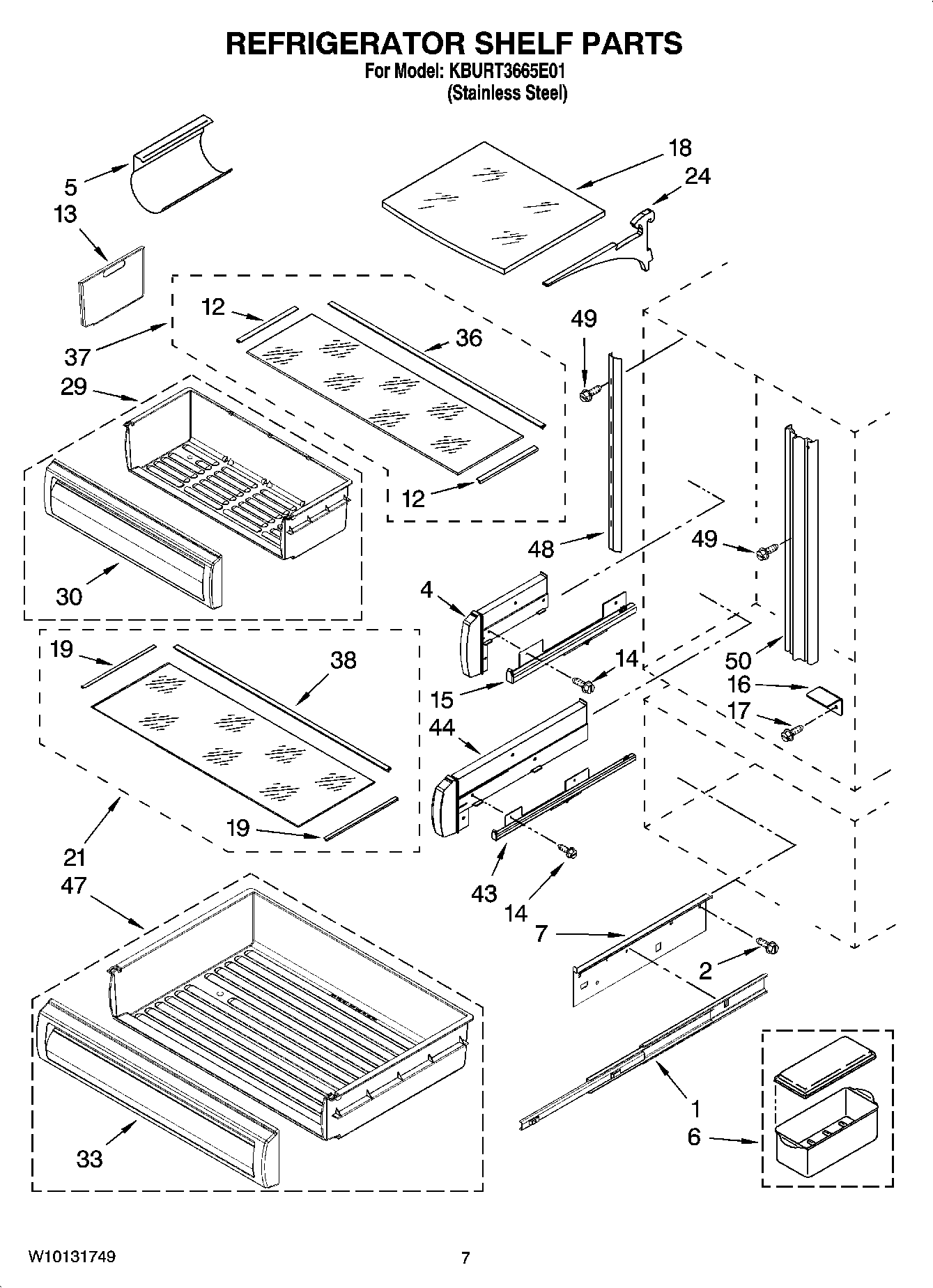

KBURT3665E01 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Slide, Freezer Basket (Left Side)
1	Slide, Freezer Basket (Right Side)
4	Spacer, Crisper (Left Side)
4	Spacer, Crisper (Right Side)
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Egg Bin Assembly
7	Bracket, Freezer Basket (Right Side)
7	Bracket, Freezer Basket (Left Side)
12	Trim-Glass, Side
13	Divider, Crisper Pan
14	WP3400886 Whirlpool Refrigerator Screw
15	2302952 Whirlpool Refrigerator Slide
15	2302953 Whirlpool Refrigerator Slide
16	Support, Crisper Cover
17	WP8533928 Whirlpool Refrigerator Screw
18	Assembly, Glass Shelf (4)
19	Trim-Glass, Side
21	Assembly, Deli Shelf
24	Sidearm, Shelf (8)
29	WP2256375 Whirlpool Refrigerator Crisper Pan
30	2256374 Whirlpool Front Pan
33	Front, Deli Pan
36	Trim-Glass, Rear
37	Assembly, Crisper Shelf
38	Trim-Glass, Rear
43	Slide, Deli (Right Side)
43	Slide, Deli (Left Side)
44	Spacer, Deli (Right Side)
44	Spacer, Deli (Left Side)
47	Deli Pan Assembly (Includes 33)
48	Ladder, Shelf Side (2)
49	2006475 Whirlpool Refrigerator Screw
50	Ladder, Shelf Center
