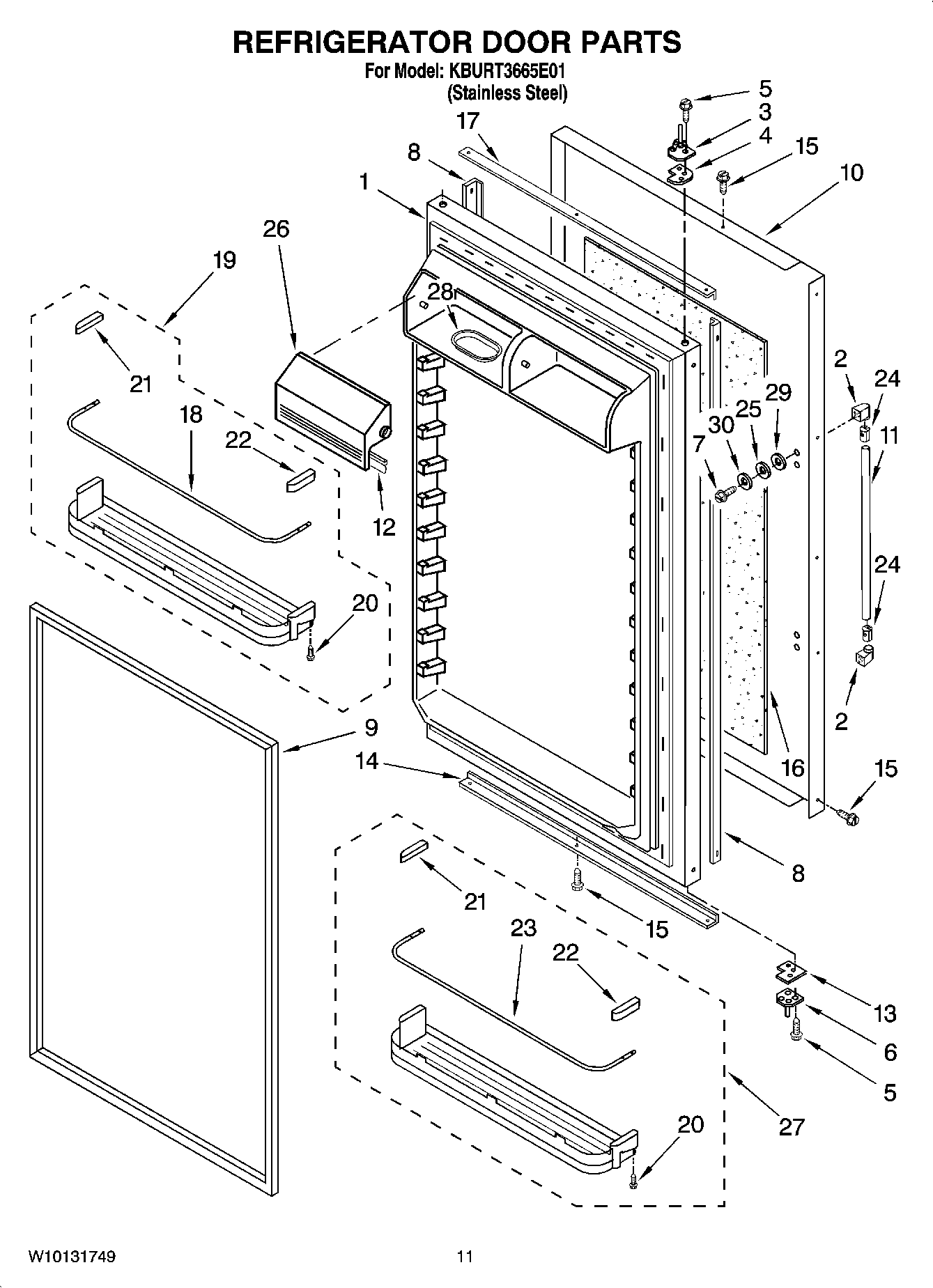

KBURT3665E01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Endcap, Handle (Left)
2	Endcap, Handle (Right)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	WP308544 Whirlpool Screw
8	Spacer, Door Edge – Side (2)
9	2302709 Whirlpool Refrigerator Door Gasket
10	Skin, Door
11	Handle, Door
12	Gasket (2)
13	SPACER, HINGE (BOTTOM)
14	SPACER, DOOR EDGE (BOTTOM)
15	WP8281250 Whirlpool Refrigerator Screw
16	Filler, Door
17	SPACER, DOOR EDGE (TOP)
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
24	Sleeve, Threaded
25	Washer (2)
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
29	Washer, Handle (2)
30	W10903204 Whirlpool Refrigerator Washer
