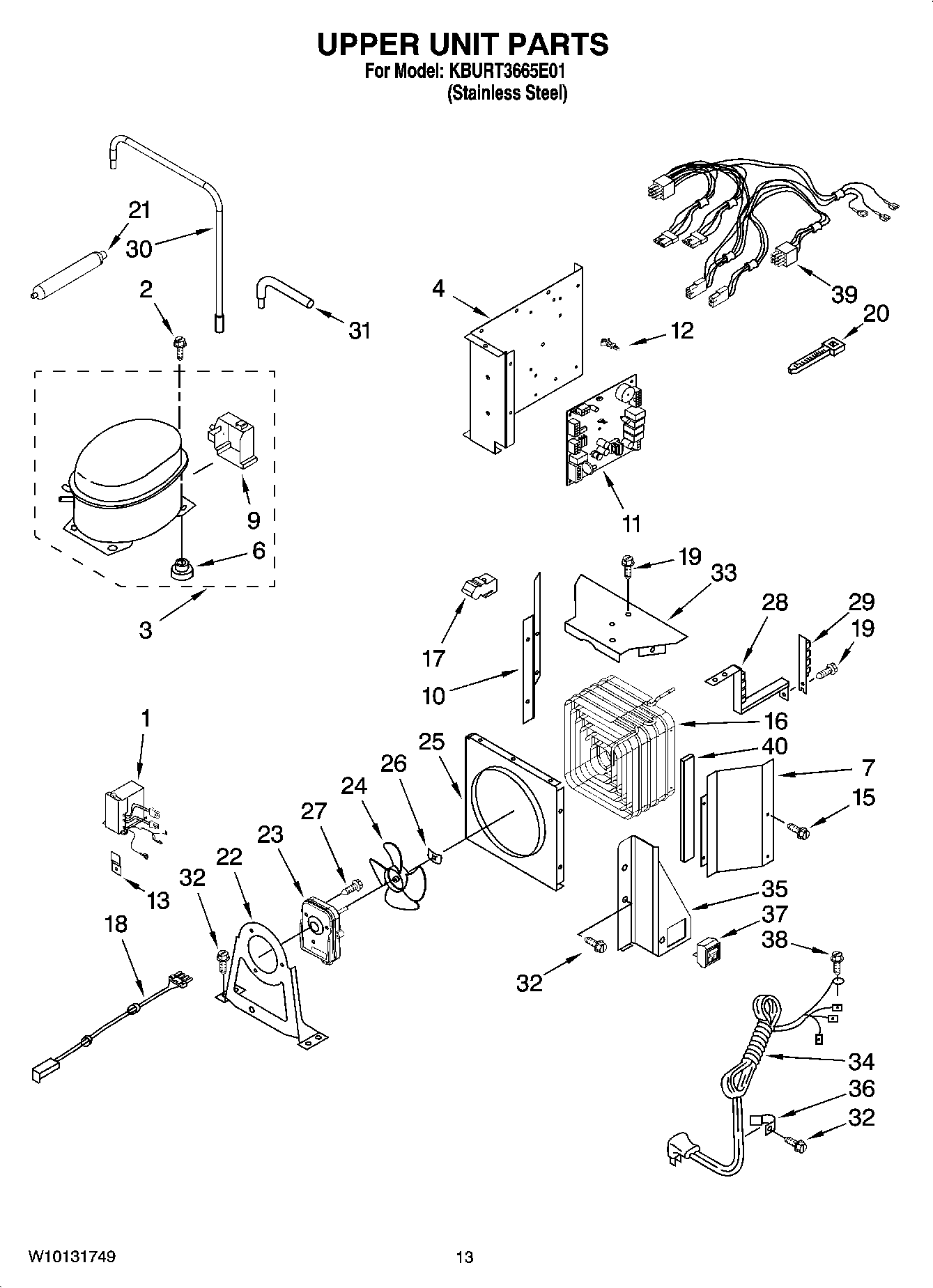

KBURT3665E01 08 – UPPER UNIT PARTS
Written by
in
KBURT3665E01 08 – UPPER UNIT PARTS
Products
Position
Product
1
W10629033 Whirlpool Refrigerator Inverter Control Box
3
W10841139 Whirlpool Refrigerator Compressor
4
Housing, Control Board
6
876811 Whirlpool Grommet
7
Support, Condenser (Right)
9
2215676 Whirlpool Refrigerator Terminal Cover
10
Support, Condenser (Left)
11
W10219463 Whirlpool Control Board + Core
12
WP2203075 Whirlpool Refrigerator Spacer
13
2256328 Whirlpool Bracket Assembly
15
WP489069 Whirlpool Compactor Screw
16
2307998 Whirlpool Refrigerator Condenser
17
2309431 Whirlpool Grommet
18
2310207 Whirlpool Wire Harness
19
WP489399 Whirlpool Refrigerator Screw
20
WPW10339879 Whirlpool Wire Tie
21
WPW10143759 Whirlpool Dryer Filter
22
Bracket, Fan Motor
23
MOTOR-COND/INCL BLADE&BRKT
24
Blade, Fan
25
Orifice, Fan
26
WP486692 Whirlpool Refrigerator Nut
27
8281160 Whirlpool Screw
28
BRACKET, VIBRATION (CONDENSER)
29
ARM, VIBRATION (CONDENSER)
30
2307566 Whirlpool Refrigerator Tube
31
W10528578 Whirlpool Refrigerator Tube
32
W11624204 Whirlpool Screw
33
Cover, Condenser
34
WP2310251 Whirlpool Refrigerator Power Cord
35
W10185556 Whirlpool Refrigerator Bracket
36
549193 Whirlpool Refrigerator Power Clamp
37
WP2266802 Whirlpool Refrigerator Switch
38
WP489128 Whirlpool Refrigerator Screw
39
Wire Harness, Unit Compartment
40
VALVE, ACCESS (5/8“)
40
Following Parts Not Illustrated and Optional Parts Not Included
40
VALVE, ACCESS (1/2“)
40
876764 Whirlpool Refrigerator Primary Valve
40
978027 Whirlpool Refrigerator Primary Valve
40
978030 Whirlpool Refrigerator Valve
40
2309432 Whirlpool Seal Strip
40
WP978025 Whirlpool Refrigerator Valve
40
978026 Whirlpool Refrigerator Primary Valve
40
REFRIGERANT CHARGE 6.00 oz. (R-134A)
←
