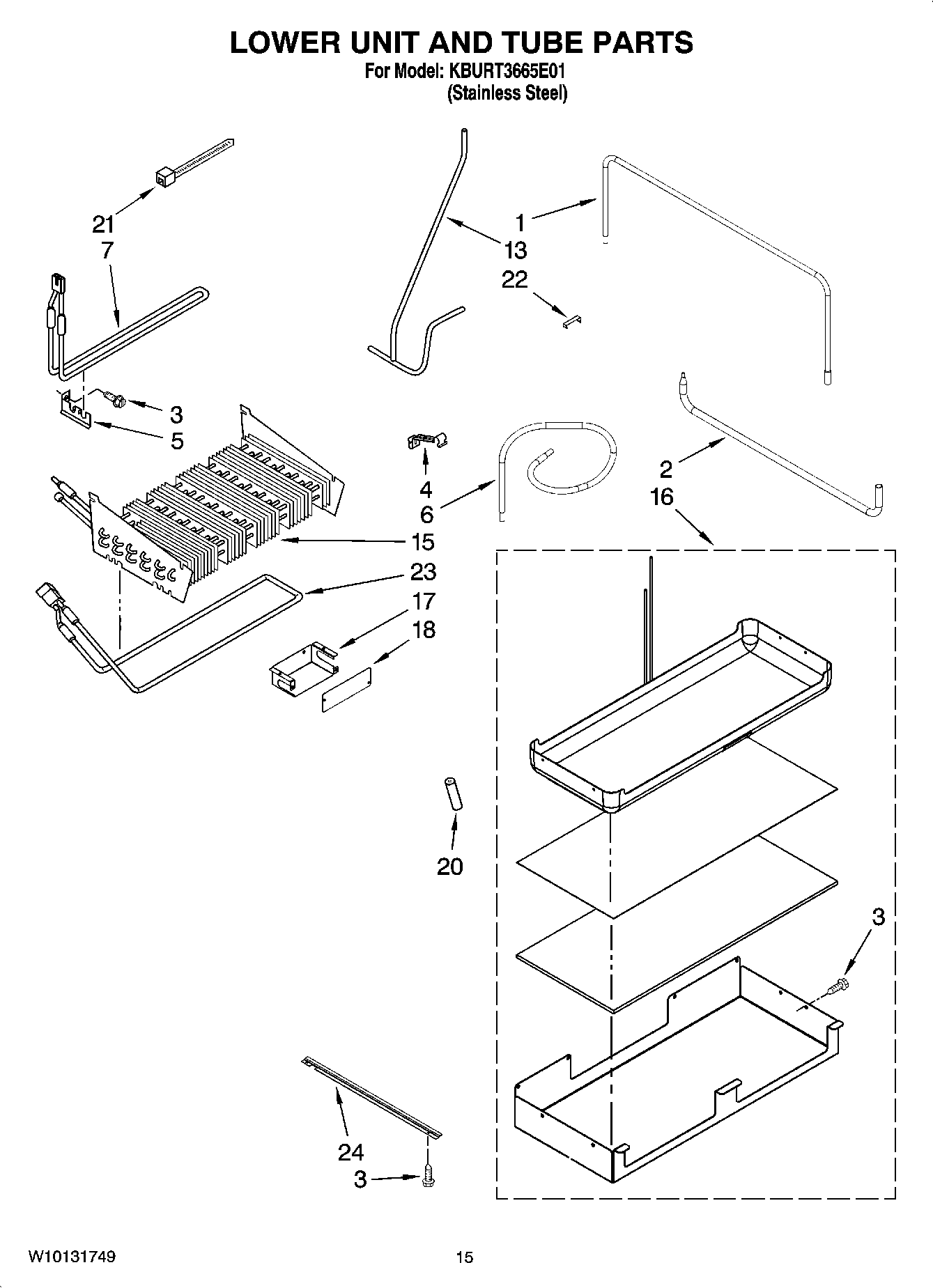

KBURT3665E01 09 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Tube, Transition (Condenser)
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
4Clamp, Heater (2)
5Support, Heater
6Tube, Suction
7Heater, Defrost (Rear)
132309073 Whirlpool Refrigerator Tube
15Evaporator
16WPW10281063 Whirlpool Refrigerator Heater Pan
17Cover, Box
18Cover, Wiring
202215648 Whirlpool Refrigerator Dampener
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
23Heater, Defrost (Front)
242320554 Whirlpool Bracket
