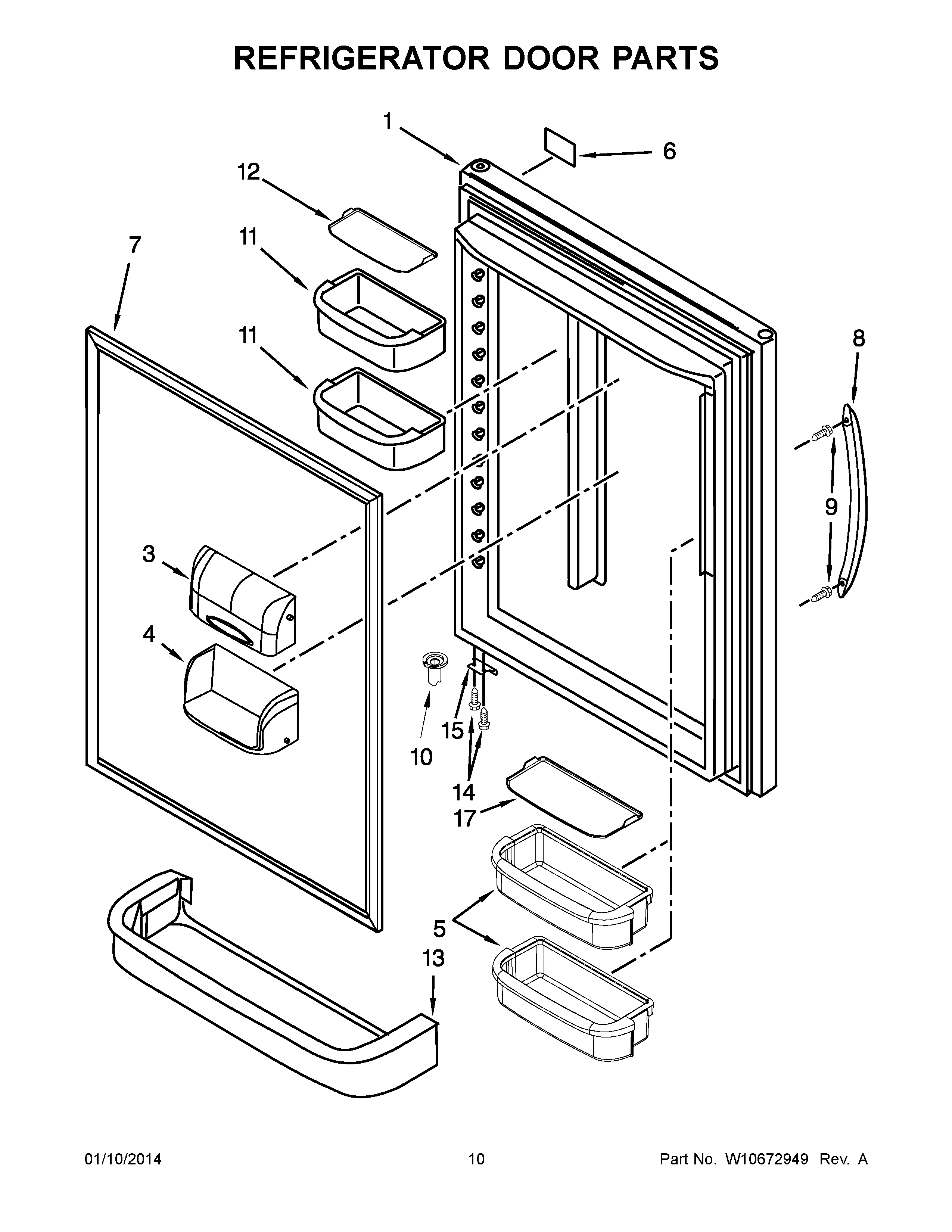

KBWS19KCMS00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13109402BQ Whirlpool Refrigerator Black Foam In Place Door
1	13107553SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
1	13109402WQ Whirlpool Refrigerator Door FIP White
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WPW10243393 Whirlpool Dishwasher Nameplate
6	WPW10243392 Whirlpool Dishwasher Nameplate
6	WPW10243391 Whirlpool Refrigerator Nameplate
7	W11676571 Whirlpool Refrigerator FIP Gasket
7	WPW10443309 Whirlpool Refrigerator Door Gasket
7	WPW10436245 Whirlpool Refrigerator FIP Gasket
8	HANDLE, DOOR (WHITE)
8	WPW10586526 Whirlpool Refrigerator Handle
8	HANDLE, DOOR (BLACK)
9	WPW10661886 Whirlpool Refrigerator Door Handle Screw
10	WP12028505AP Whirlpool Closing Cam
10	WP67003638 Whirlpool Closing Cam
10	WP67003639 Whirlpool Refrigerator Closer
11	WPW10351081 Whirlpool Refrigerator Cantilever Bin
12	W11408990 Whirlpool Refrigerator Mat
13	67001139 Whirlpool Refrigerator Shelf Trim
14	WP98165 Whirlpool Screw
15	12968202W Whirlpool Refrigerator Door Stop
15	W11401472 Whirlpool Refrigerator Door Stop
15	W11708403 Whirlpool Door Stop
17	WPW10450021 Whirlpool Refrigerator Mat
