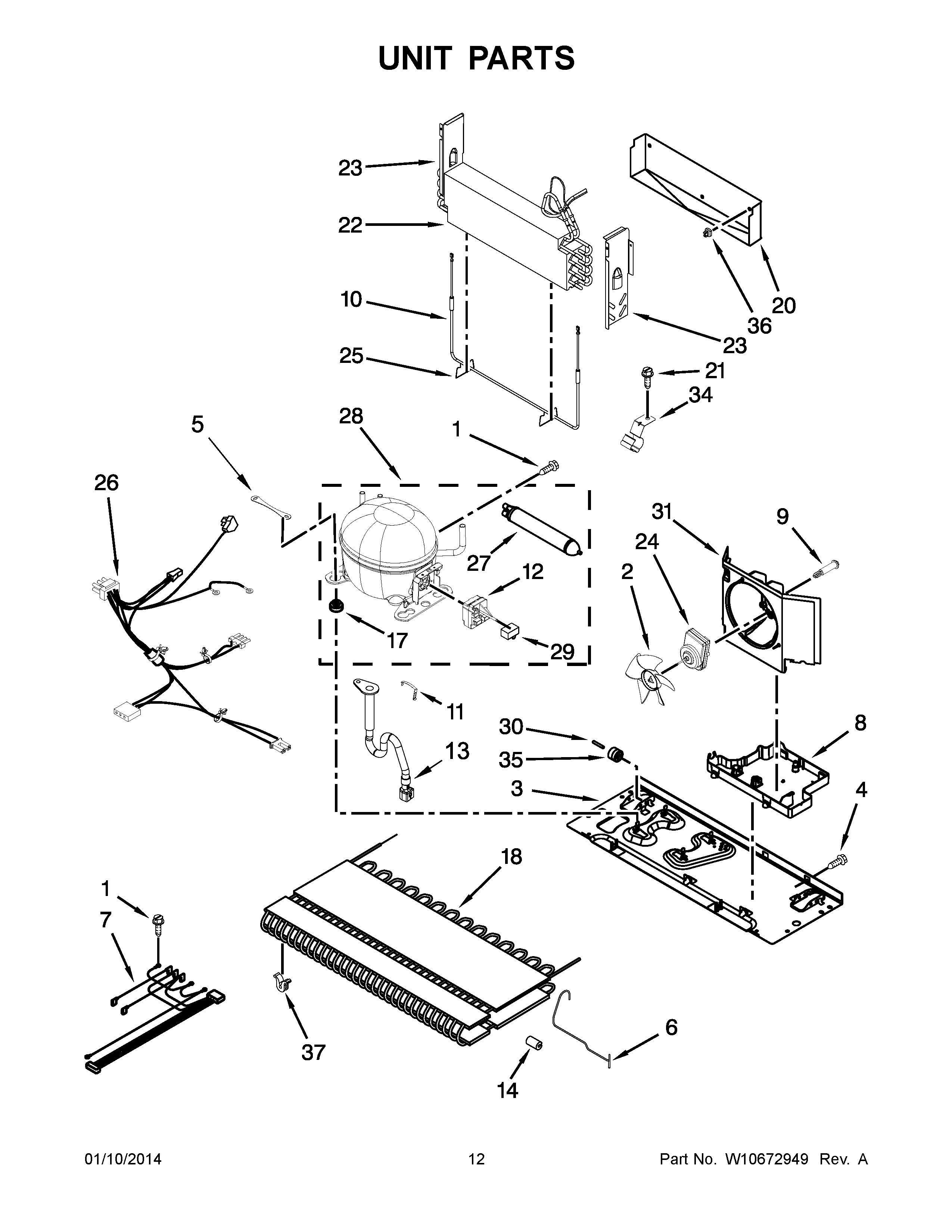

KBWS19KCWH00 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10236396 Whirlpool Refrigerator Strap
6	W10294014 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729127 Whirlpool Refrigerator Heater
11	W11661170 Whirlpool Clip
12	START-DEV
13	W10619951 Whirlpool Drain Tube with Grommet
14	W10852725 Whirlpool Refrigerator Grommet
17	WPW10169124 Whirlpool Refrigerator Grommet
18	W10346423 Whirlpool Refrigerator Condenser
20	TRAY, DRIP
21	WP33001882 Whirlpool Screw
22	W10920993 Whirlpool Refrigerator Evaporator
23	Dam (Left Side)
23	Dam (Right Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	WPW10679216 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
34	W10281329 Whirlpool Clamp
35	WP67005149 Whirlpool Roller
36	CLIP, EVAP (2)
37	WPW10137529 Whirlpool Refrigerator Grommet
