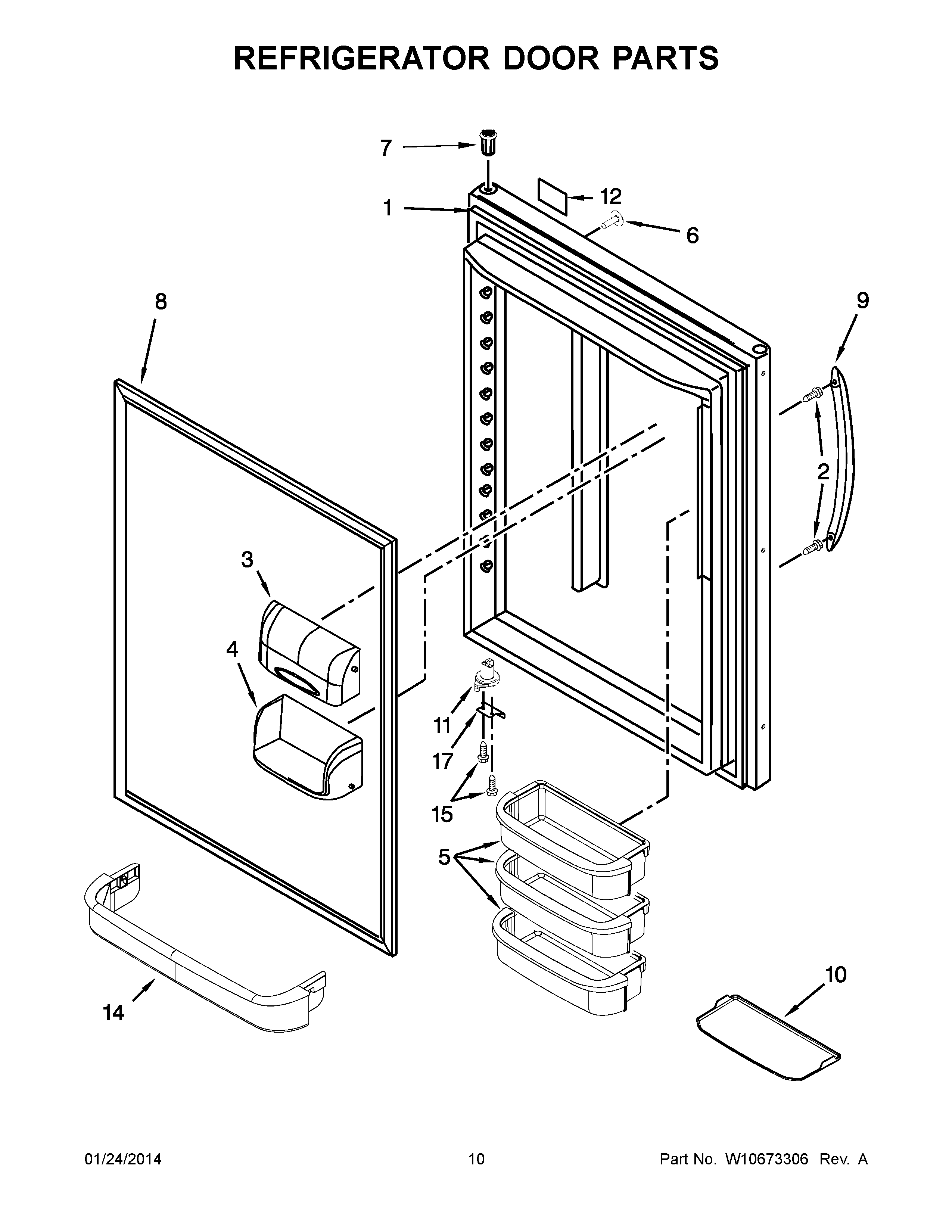

KBWS22KCBL00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13109401BQ Whirlpool Refrigerator DOR Foam In Place Black
1	13109401WQ Whirlpool Refrigerator FIP Door WH
1	13107554SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
2	WPW10661886 Whirlpool Refrigerator Door Handle Screw
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
6	WP12246610 Whirlpool Refrigerator Handle Plug
7	10961006AP Whirlpool Refrigerator Hinge Bushing
7	67004978 Whirlpool Refrigerator Black Door Bushing
7	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
8	W10443314 Whirlpool Refrigerator FIP Gasket
8	WPW10436248 Whirlpool Door Gasket
8	W10443313 Whirlpool Door Gasket
9	WPW10586526 Whirlpool Refrigerator Handle
9	HANDLE, DOOR (WHITE)
9	HANDLE, DOOR (BLACK)
10	WPW10450021 Whirlpool Refrigerator Mat
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
11	WP12028505AP Whirlpool Closing Cam
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	WPW10243392 Whirlpool Dishwasher Nameplate
12	WPW10243391 Whirlpool Refrigerator Nameplate
14	67001019 Whirlpool Door Shelf Trim
15	WP98165 Whirlpool Screw
17	W11401472 Whirlpool Refrigerator Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
