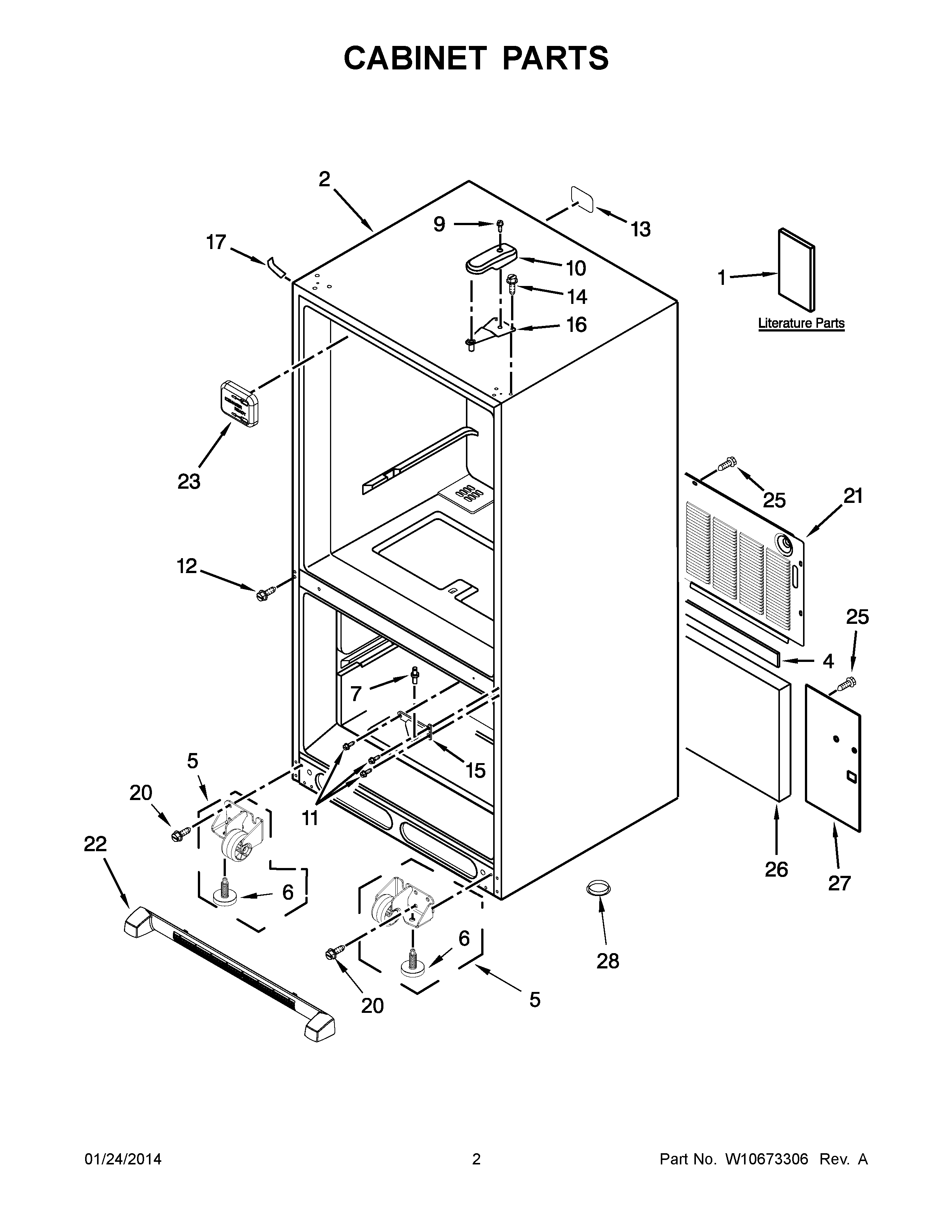

KBWS22KCWH00 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE AND CARE GUIDE
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
10W11106366 Whirlpool Refrigerator Door Hinge
1067001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11WP67006380 Whirlpool Screw
12WP98165 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
2067006564 Whirlpool Refrigerator Screw
21WPW10210979 Whirlpool Refrigerator Back Cover
22WPW10534161 Whirlpool Refrigerator Front Grille
22WPW10534162 Whirlpool Refrigerator Front Grille
22WPW10534160 Whirlpool Refrigerator Front Grille
23WP67001098 Whirlpool Refrigerator Tube Cover
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W11684617 Whirlpool Valve Cover
28A3076901 Whirlpool Refrigerator Plug
