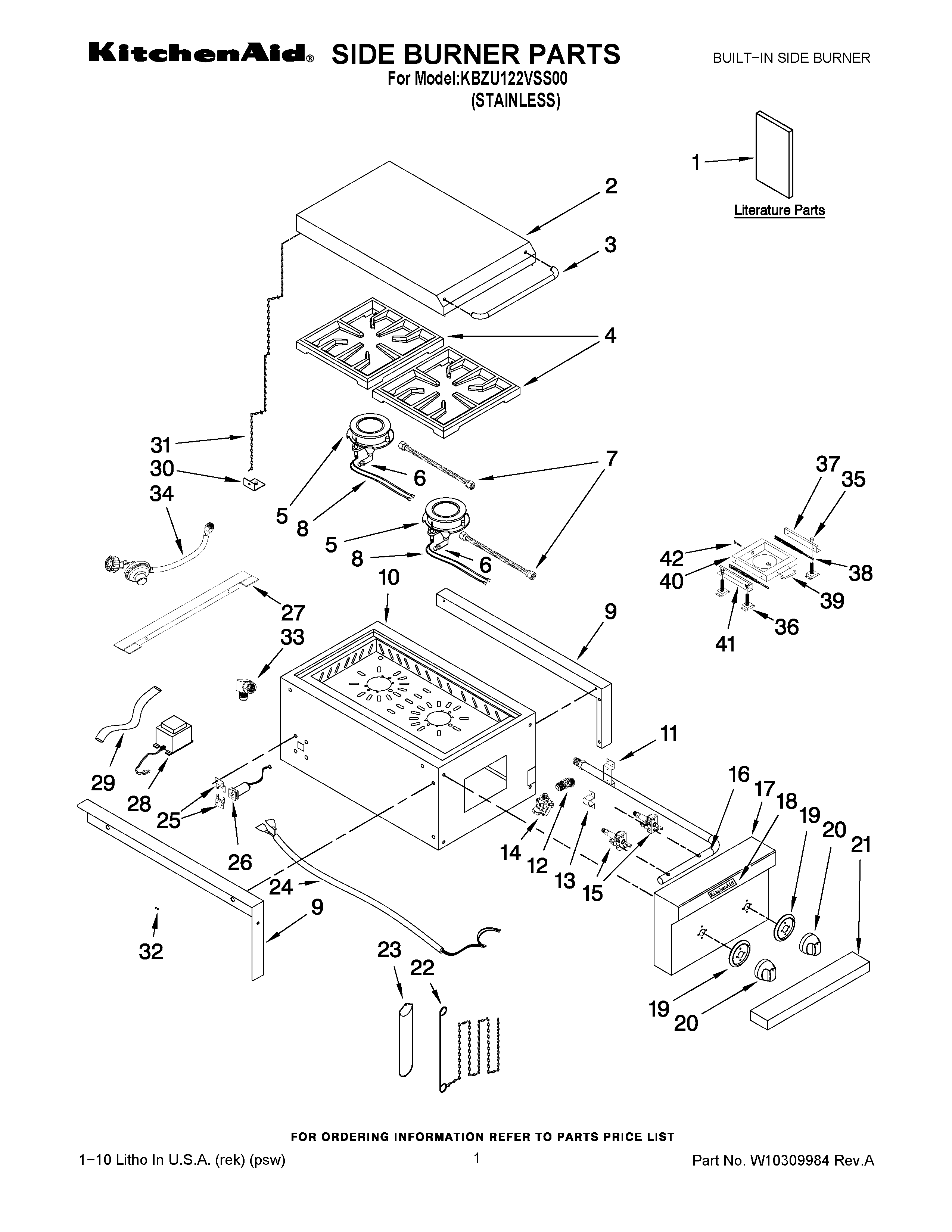

KBZU122VSS00 01 – SIDE BURNER PARTS
Written by
in
KBZU122VSS00 01 – SIDE BURNER PARTS
Products
Position
Product
1
U & C Guide / Instructions, Installation
2
Cover, Burner
3
Bar, Tool
4
Grate, Burner
5
BURNER
6
ORIFICE, BURNER ELBOW
7
Tubing (Front)
7
Tubing (Rear)
8
Ignitor, Surface (Front)
8
W10247025 Whirlpool Oven Surface Igniter
9
Flange (Right)
9
Flange (Left)
10
BOX-BURNER
11
WPL W10128749
12
CONN, BRASS NG
13
Fixture, Manifold
14
WPW10132702 Whirlpool Regulator
15
WPW10128764 Whirlpool Oven Main Valve
16
MANIFOLD
17
Panel, Control
18
Nameplate
19
Bezel, Knob
20
KNOB
21
Panel, Front
22
Rod, Lighting
23
Bag, Lighting Rod
24
Harness, Wire
25
BRACKET, TRANSFRMR
26
Outlet, Transformer
27
FLANGE, BACK
28
W10247117 Whirlpool Oven Transformer
29
Tube, Drain
30
Stator, Chain
31
CHAIN
32
ORIFICE, KIT
33
CONN, BRASS LP
34
REGULATOR (LP)
35
NUT, ADJUSTABLE
36
BRACKET, FIXING
37
BRACKET, LEFT
38
SLIDE, TRAY
39
HANDLE, TRAY
40
TRAY, TANK
41
BRACKET, RIGHT
42
BOLT, TANK
←
