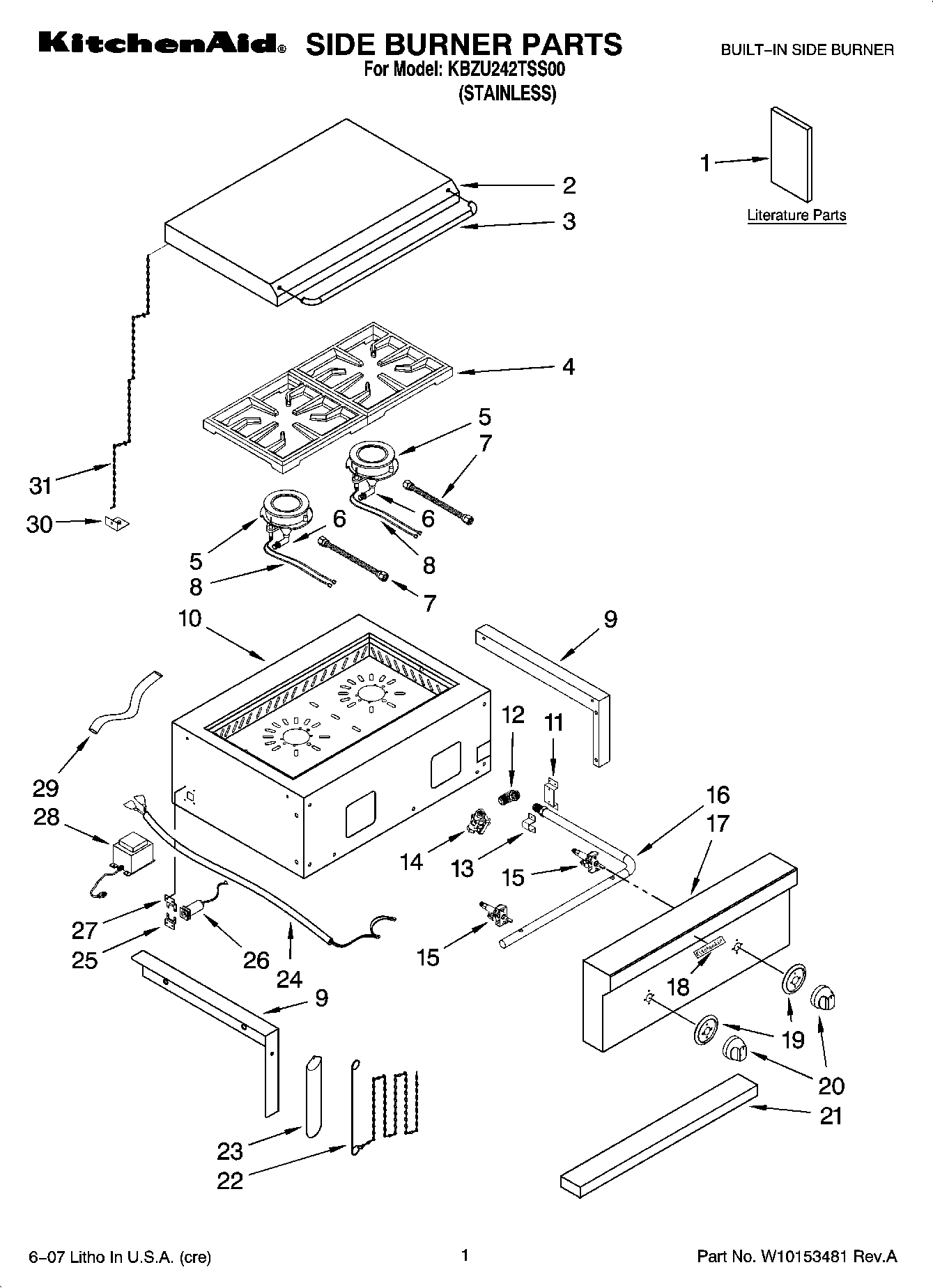

KBZU242TSS00 01 – SIDE BURNER PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Cover, Burner
3	Bar, Tool
4	Grate, Burner
5	BURNER
6	Orifice, Burner Elbow
7	Tubing
8	Ignitor, Surface
9	Flange (Left)
9	Flange (Right)
10	Box, Burner
11	WPL W10128749
12	CONNECTOR, NG
13	Fixture, Manifold
14	Regulator (NG)
15	WPW10128764 Whirlpool Oven Main Valve
16	MANIFOLD
17	Panel, Control
18	Nameplate
19	Bezel, Knob
20	KNOB
21	Panel, Front
22	Rod, Lighting
23	Bag, Lighting Rod
24	Harness, Wire
25	Brkt, Trnsfrmr (Top)
26	Outlet, Transformer
27	Brkt, Trnsfrmr (Btm)
28	W10247117 Whirlpool Oven Transformer
29	Tube, Drain
30	Stator, Chain
31	CHAIN
