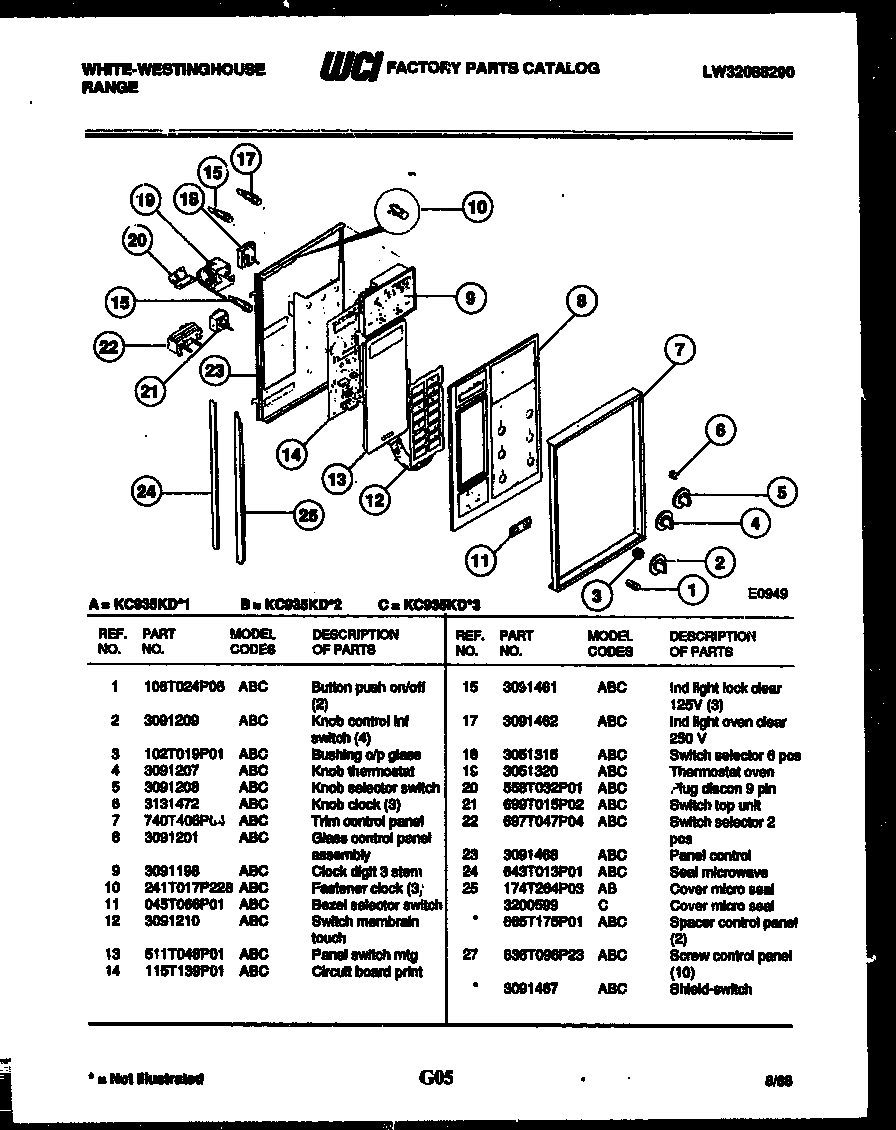

KC935KDD3 11 – UPPER BODY PARTS

Products

Position	Product
*14188	5303300265 Frigidaire Oven Screw
*14187	FASTNR. PUSH
*14186	PLUG BUTTN. RACK GLIDES (8)
*14185	FASTNR WIRE CLIP
*14187	NUT STIRRER SHAFT TO FAN
*14187	WCI 154T021P01
*14186	WCI 331T117P01
*14185	FASTNR-8A U-TYPE
*14189	WCI 508T026P02
*14186	WCI 241T017P154
*14188	WCI 508T004P01
*14186	FASTNR. HNG. MTG. (4)
*14187	SEAL, FOAM (4)
*14188	5303321319 Frigidaire Refrigerator White Touch Up Paint
*14189	WCI 508T020P02
2	SEAL
3	COVER - SEAL
4	WCI 123T82P01
5	TRIM - BOTTOM
6	MEDALLION DR STRIKE
7	GROMMET DOOR
8	TRIM, FRONT
9	TRAY GLASS
10	CLIP TRAY (4)
11	GLIDE TRAY (2)
12A	COVER, STIRRER
13	WCI 239T043S02
14	COVER DUCT EXT.
15	WCI 479T084P01
16	RECEPTACLE
17	WCI 008T480P01
18	WCI 008T378F11
19	WCI 136T321F02-18
20	WCI 211T044F04
21	BRACKET
22	COVER DUCT
23	SOCKET
24	BULB
25	WCI 115T463P01
26	WASHER
27	RETAINER TRIM
28	TRIM-VENT TOP
29	CAP END LH
29A	CAP END RH
30	WCI 655T307F02
30A	WCI 655T307F03-18
31	PANEL TOP
32A	RECEPT HOOD ASSY.
32	WCI 174T204F01
34	COVER LIGHT
35	WRAPPER
36A	WCI 3051263
36	WCI 3051260
37	WCI 740T309F01
37A	WCI 740T309F02
39	PLUG DISCONN. KIT OVN. ELMNT. WHITE
39A	PLUG KIT
40	WCI 115T563P03
41	FASTNR. STANDOFF (4)
42	BUSING
