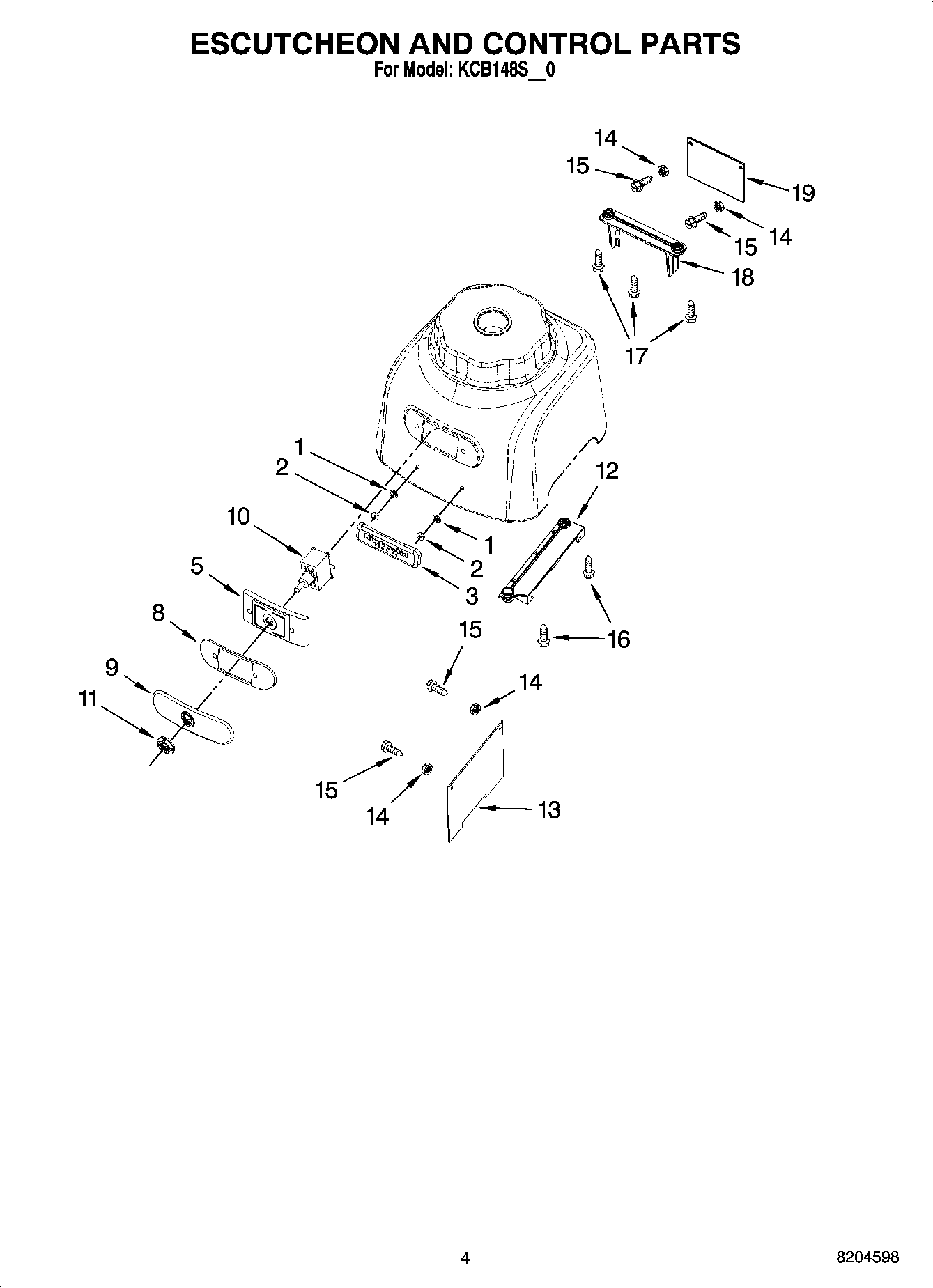

KCB148SGR0 03 – ESCUTCHEON AND CONTROL PARTS

Products

Position	Product
1	Seal, Nameplate
2	Nut, Washer
3	Nameplate
5	Plate, Switch
8	Seal, Escutcheon
9	Escutcheon
10	Switch, On/Off
11	Nut, Bezel
12	Mount, Main PCB
13	Main PCB, 1-speed
14	Nut, Plastic
15	Screw, Plastic
16	Screw, 10 x 16
17	Screw, 10 x 16
18	Mount, EMC
19	EMC-PC Board
