KCBC150X0 02 – SECTION

Products

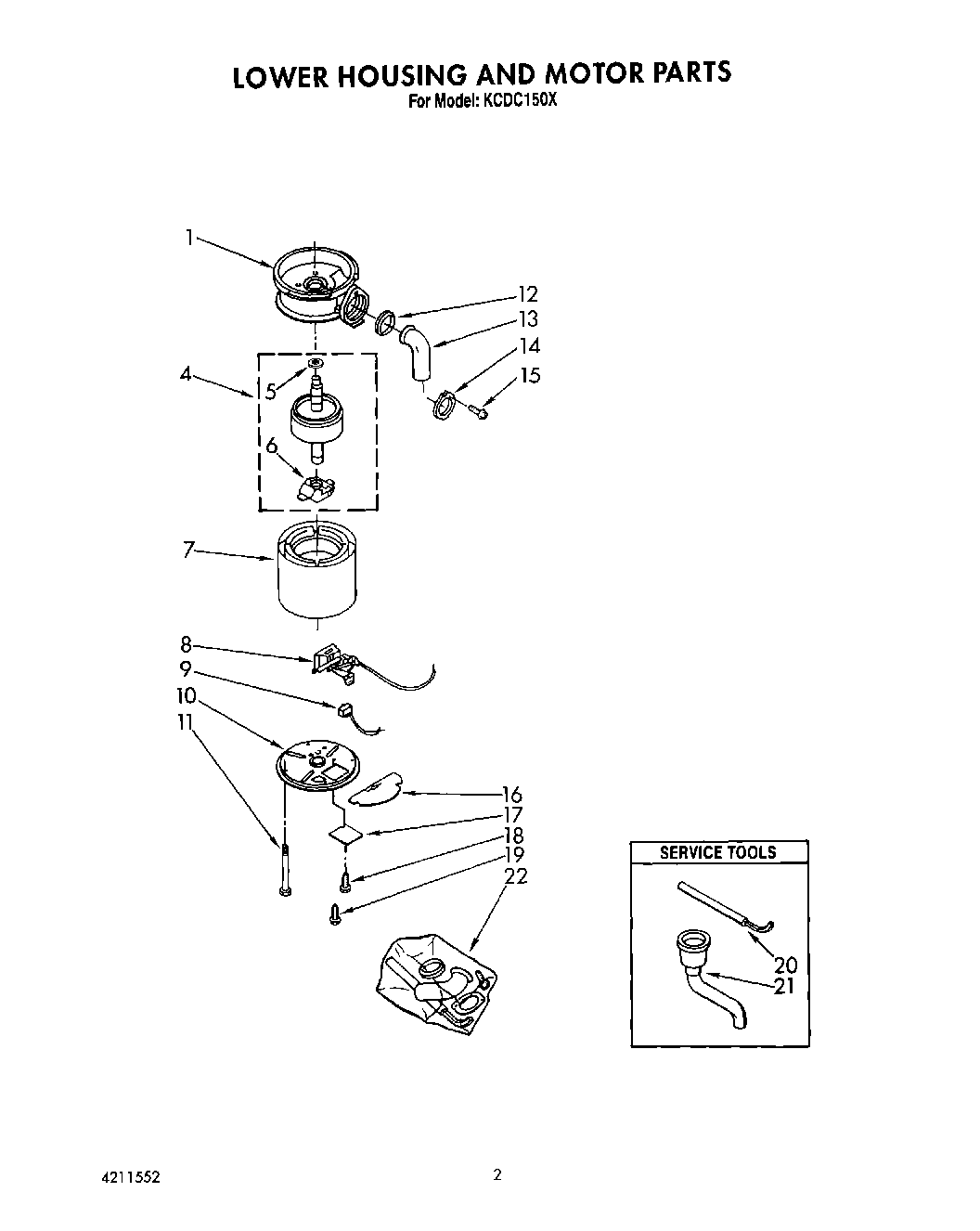

Position	Product
	Guide, Use and Care
	Repair Parts List
	Instructions, Installation
1	End Bell Assembly, Upper
4	Rotor & Shaft Assembly
5	4211321 Whirlpool Washer
6	4211322 Whirlpool Disposer Actuator
7	Stator Assembly
8	8174312 Whirlpool Disposer Switch
9	882726 Whirlpool Disposer Overload Protector
10	End Frame Assembly, Lower
11	Bolt, Thru
12	Gasket, Tailpipe
13	4211317 Whirlpool Disposer Tail Pipe
14	Flange, Tailpipe
15	WP8204624 Whirlpool Bolt
16	Shield, Wire
17	Cover, Terminal
18	WP7101P246-60 Whirlpool Screw
19	Screw, Tailpipe
20	WP8174310 Whirlpool Disposer Wrench
21	4211396 Whirlpool Disposer Adapter
22	Kit, Installation (Includes No. 11, 12, 13 14, 21, Instructions, and Use and Care Guide)
