KCBC250X0 02 – SECTION

Products

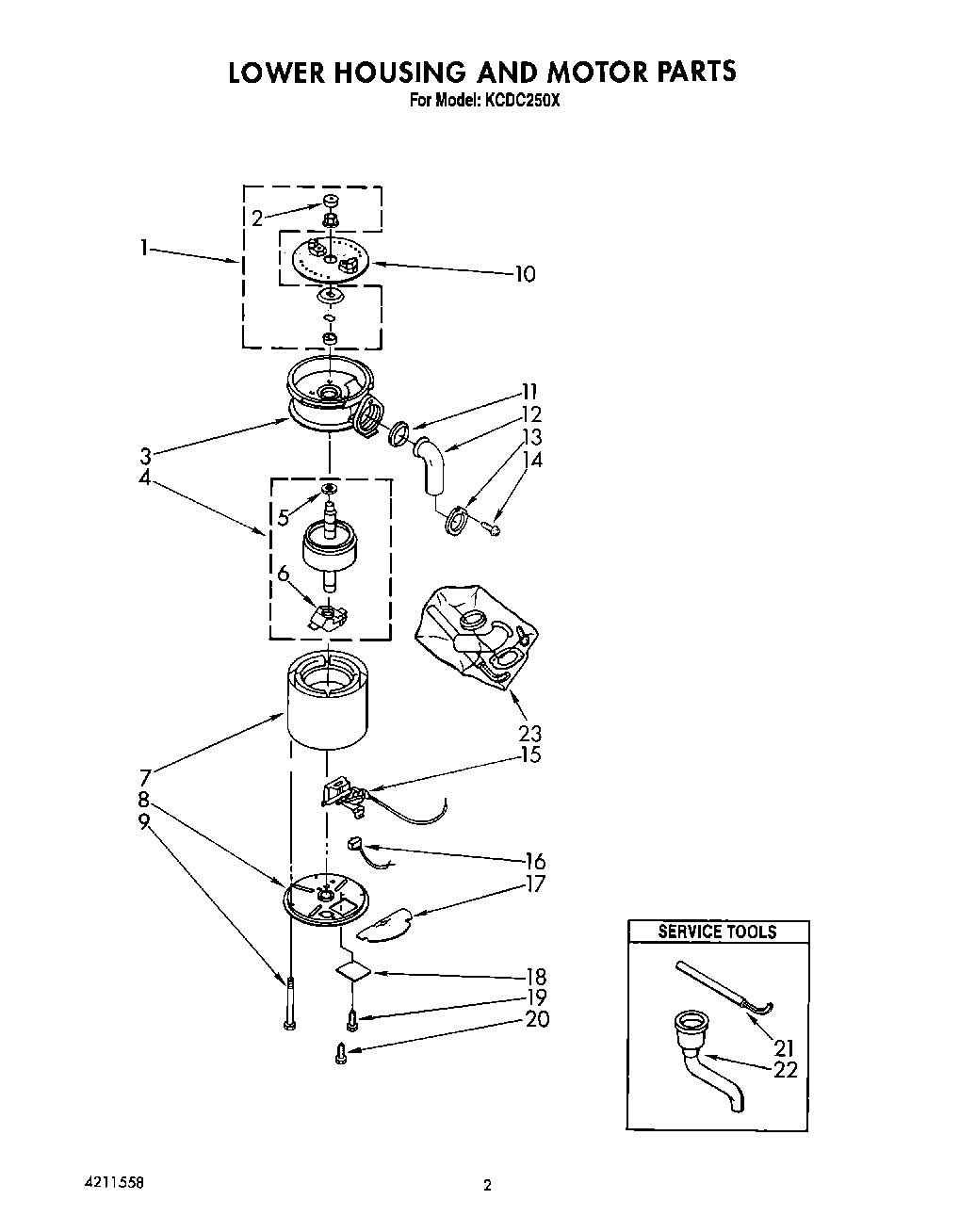

PositionProduct
Guide, Use and Care
Repair Parts List
Instructions, Installation
14211578 Whirlpool Disposer Sleeve
3End Bell Assembly, Upper
4Rotor And Shaft Assembly
54211321 Whirlpool Washer
64211322 Whirlpool Disposer Actuator
7Stator Assembly
8End Frame Assembly, Lower
9Bolt, Thru
10Shredder
11Gasket, Tailpipe
124211317 Whirlpool Disposer Tail Pipe
13Flange, Tailpipe
14WP8204624 Whirlpool Bolt
158174312 Whirlpool Disposer Switch
16882726 Whirlpool Disposer Overload Protector
17Shield, Wire
18Cover, Terminal
19WP7101P246-60 Whirlpool Screw
20Screw, Tailpipe
21WP8174310 Whirlpool Disposer Wrench
224211396 Whirlpool Disposer Adapter
23Kit, Installation (Includes No. 11, 12, 13 14, 21, Instructions, and Use and Care Guide)
