KCBM180FQYB 04 – SYSTEM

KCBM180FQYB 04 – SYSTEM

Written by

in

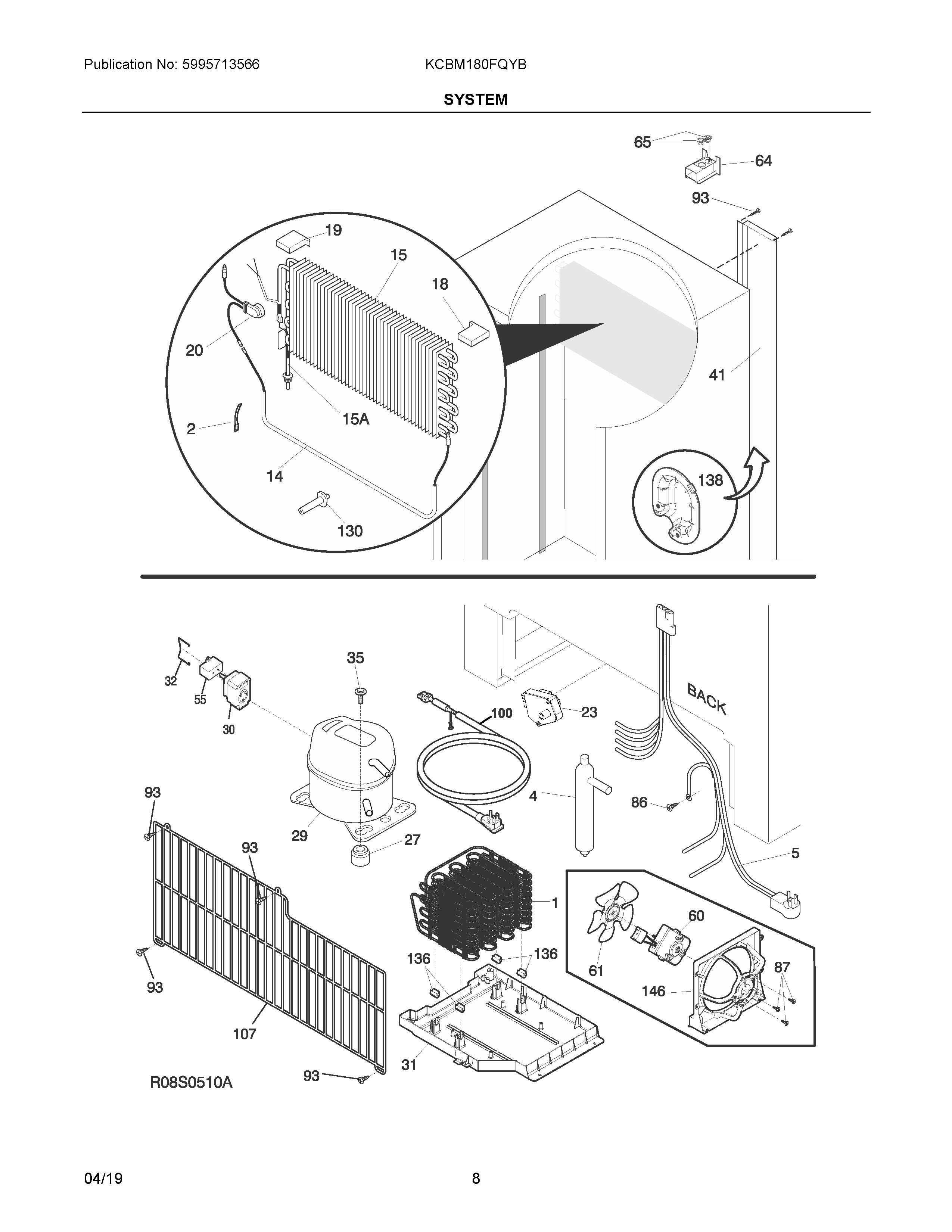

KCBM180FQYB 04 – SYSTEM

Products

PositionProduct
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI297315800 Frigidaire Refrigerator Clip
NI5304485759 Frigidaire Refrigerator Tape
NIA216987800 Frigidaire Harness-Adapter
NIWCI 5303311565
NI297111000 Frigidaire Standoff
NIA216337701 Frigidaire Refrigerator Screw
NIAWCI 297318700
NI216858001 Frigidaire Refrigerator Screw
NIWCI 297082300
NI241853202 Frigidaire Refrigerator Screw
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 297337301
14216730700 Frigidaire Refrigerator Defrost Heater
15AWCI 297219100
15297311300 Frigidaire Freezer Evaporator Assembly
16297139500 Frigidaire Refrigerator Socket
18297078701 Frigidaire Refrigerator Insulator-Evaporator
19297078801 Frigidaire Refrigerator Evaporator Insulator
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
27297293302 Frigidaire Refrigerator Grommet
29WCI 216966900
30216894200 Frigidaire Refrigerator Starter
31297165800 Frigidaire Refrigerator Drain Pan
31A216100126 Frigidaire Refrigerator Overload Protector
35216273000 Frigidaire Refrigerator Strap
41WCI 297070700
53WCI 216894500
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
64WCI 216578800
65Valve,breather ,door base
86216036601 Frigidaire Refrigerator Screw
100297366805 Frigidaire Refrigerator Cord
107WCI 297225501
116WCI 216383800
130297244700 Frigidaire Refrigerator Support
136240405201 Frigidaire Refrigerator Grommet
138COVER-DRAIN HOSE
146WCI 297164000
