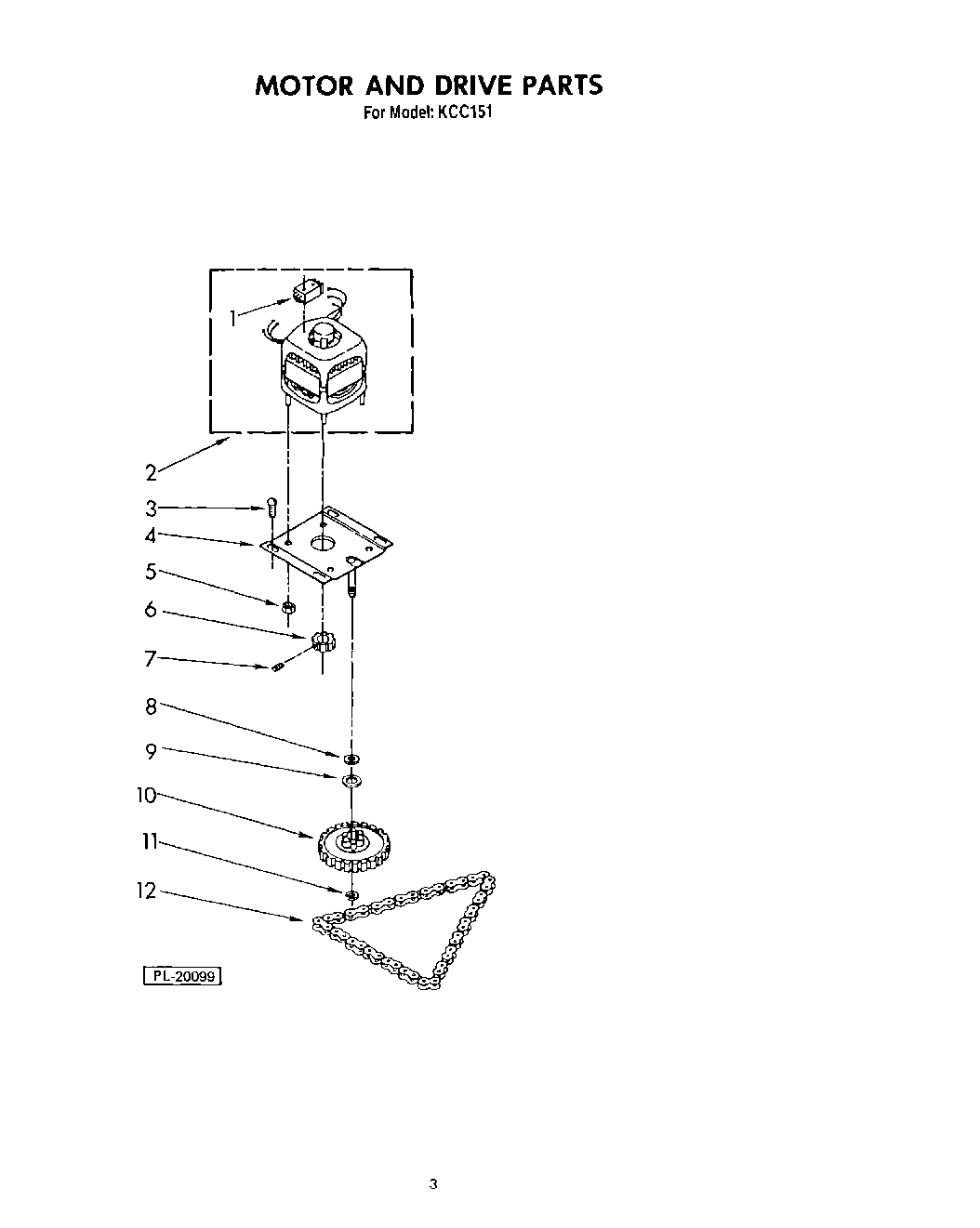

KCC150 03 – MOTOR AND DRIVE (KCC151)admin2025-04-26T12:29:10+00:00KCC150 03 – MOTOR AND DRIVE (KCC151) ProductsPositionProduct1Assembly (Use W/242744 Motor)1Switch Assembly (Use W/242743 Motor)2Motor (Includes Illus. 1)2Motor (Includes Illus. 1)3Screw, 1/4-20 x 1/2 (4)4Drive Mount Assembly5Locknut, 10-32 (4)6Gear, Drive7Pin, Slotted Spring8Washer, Wave9Washer, Thrust10Drive Gear Assembly11Clip, Ring12Chain, Drive
