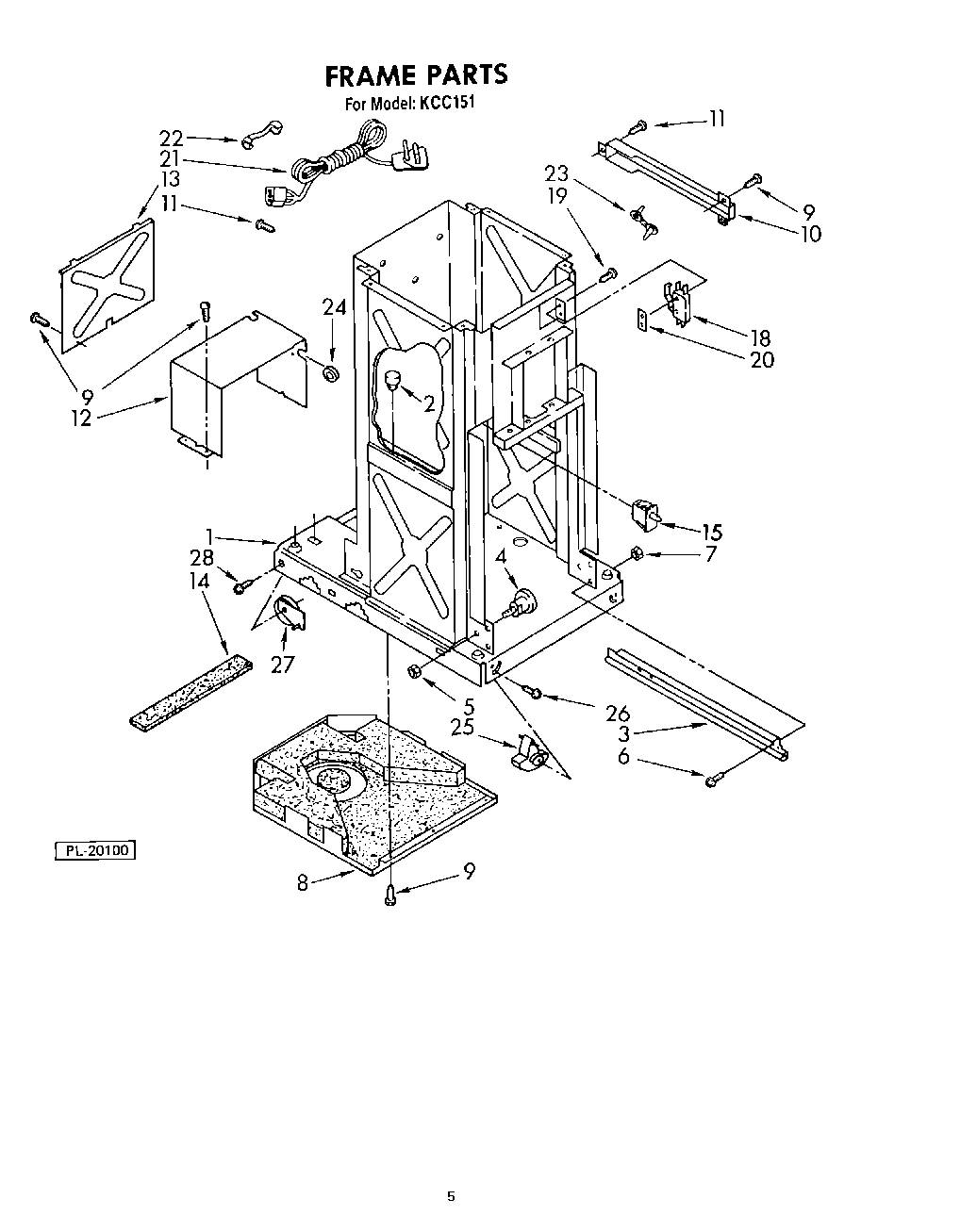

KCC150 05 – FRAME (KCC151)admin2025-04-26T12:30:00+00:00KCC150 05 – FRAME (KCC151)
Products
| Position | Product |
|---|
| 1 | Frame (Not a Serviceable Part) |
| 2 | Bumper (4) |
| 3 | Frame, Slide (L.H.) |
| 3 | Frame, Slide (R.H.) |
| 4 | Bearing, Roller (2) |
| 5 | Locknut, 3/8-24 (2) |
| 6 | Screw, 6-32 x 3/8 (4) |
| 7 | Nut, 6-32 (4) |
| 8 | Pan Assembly |
| 9 | Screw, 8 x 1/2AB |
| 10 | Shield, Harness |
| 11 | Screw, 8-32 x 5/16 |
| 12 | Cover, Motor |
| 13 | Plate, Motor Cover |
| 14 | Barrier, Glass |
| 15 | Switch, Drawer Safety |
| 18 | Switch, Top Limit & Directional |
| 19 | Screw, 6-20 x 1 (2) |
| 20 | Plate, Nut |
| 21 | Cord, Power |
| 22 | Bushing, Cord |
| 23 | Clamp, Wire |
| 24 | Grommet, Motor Cover |
| 25 | Leveler (2) |
| 26 | Screw & Washer Assembly (2) |
| 27 | Wheel Assembly, L.H. |
| 27 | Wheel Assembly, R.H. |
| 28 | Screw 10-24 x 3/8 (4) |
