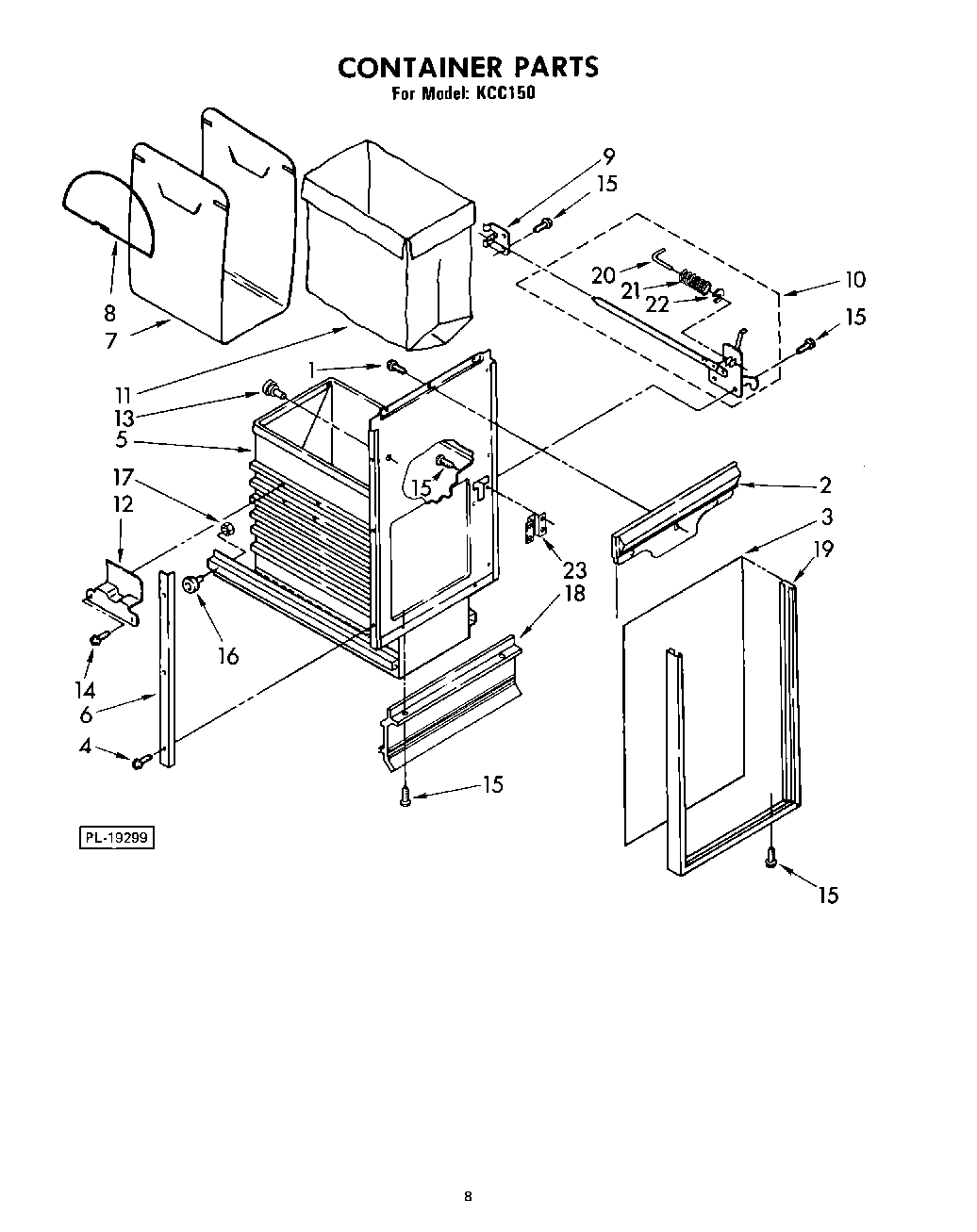

KCC150 08 – CONTAINER (KCC150)admin2025-04-26T12:29:59+00:00KCC150 08 – CONTAINER (KCC150)
Products
| Position | Product |
|---|
| 1 | Screw, 8-18 x 1/2 |
| 2 | Handle, Container |
| 3 | Panel (Harvest Gold & Almond) |
| 3 | Panel (White & Black) |
| 4 | Screw, 6-20 x 3/8 |
| 5 | Container Assembly |
| 6 | Plate, Trim |
| 7 | Carrier, Bag (Includes Illus. 8) |
| 8 | Handle, Bag Carrier |
| 9 | Guide, Rear Latch |
| 10 | Latch Assembly |
| 11 | Available At Local Dealer |
| 12 | Cam, Actuator |
| 13 | Bumper, Container (2) |
| 14 | Screw, 8-18 x 1/2 |
| 15 | Screw, 8 x 1/2AB |
| 16 | Container, Bearing Roller |
| 17 | Locknut, 3/8-24 |
| 18 | Toe Plate |
| 19 | Trim, Container (Front) |
| 20 | Pin (Included In No.10) |
| 21 | Spring Latch (Included In No.10) |
| 22 | Ring ``E`` (Included In No.10) |
| 23 | Plate, Latch |
