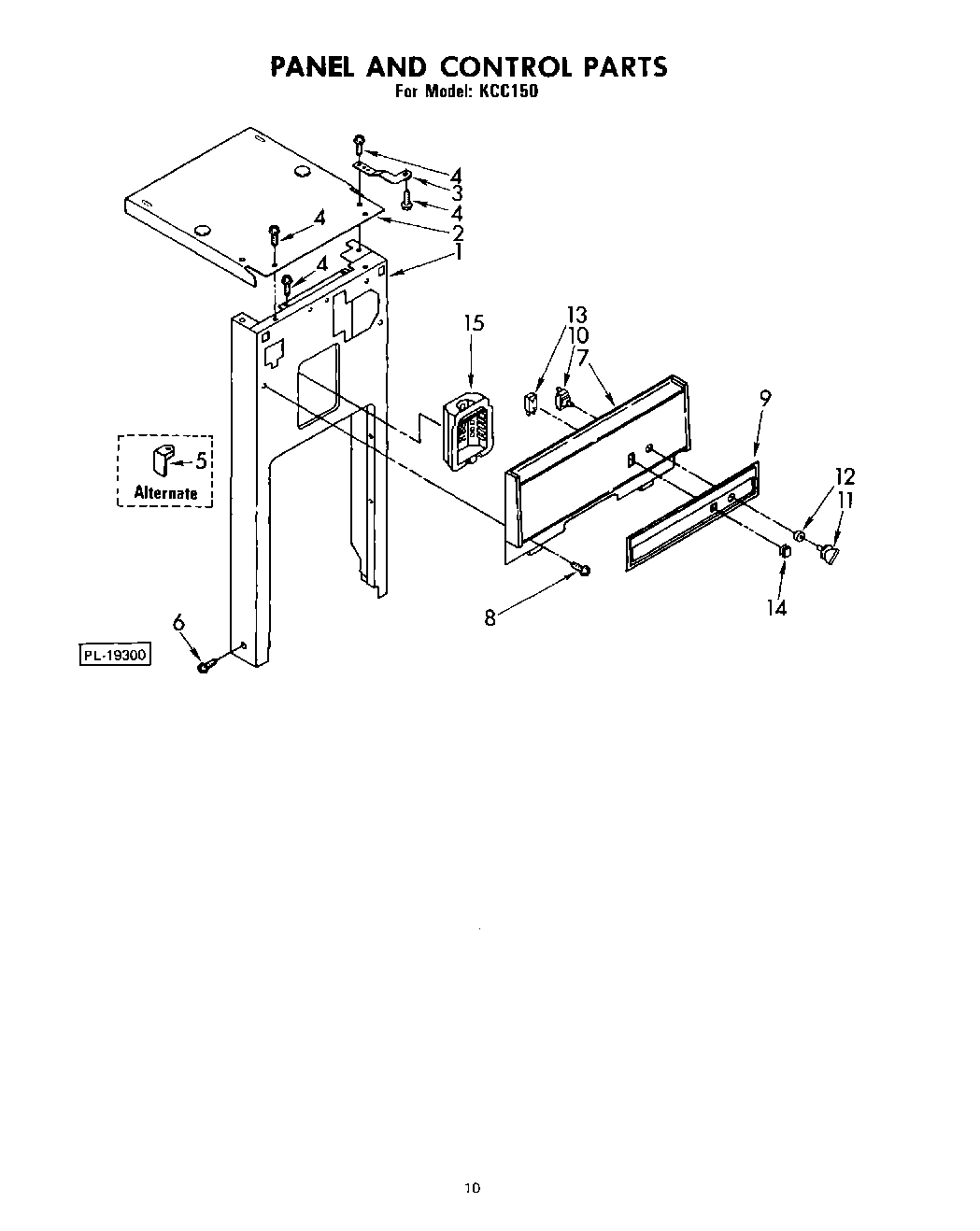

KCC150 10 – PANEL AND CONTROL (KCC150)admin2025-04-26T12:29:37+00:00KCC150 10 – PANEL AND CONTROL (KCC150)
Products
| Position | Product |
|---|
| 1 | Panel, Front Frame |
| 2 | Cover, Top (Recessed) |
| 3 | Bracket, Retainer (R.H.) |
| 3 | Bracket, Retainer (L.H.) |
| 4 | Screw, 8-18 x 1/2 |
| 5 | Bracket, Mounting (2) (Auxiliary) |
| 6 | Screw, 8 x 1/2AB |
| 7 | Escutcheon |
| 8 | Screw, 6-20 x 3/8 (2) |
| 9 | Insert, Escutcheon |
| 10 | Switch, Rotary Start-Run |
| 11 | Knob, Rotary Switch |
| 12 | Nut, Rotary Switch |
| 13 | Light, Indicator |
| 14 | Lens, Indicator |
| 15 | Compartment, Air Flow |
