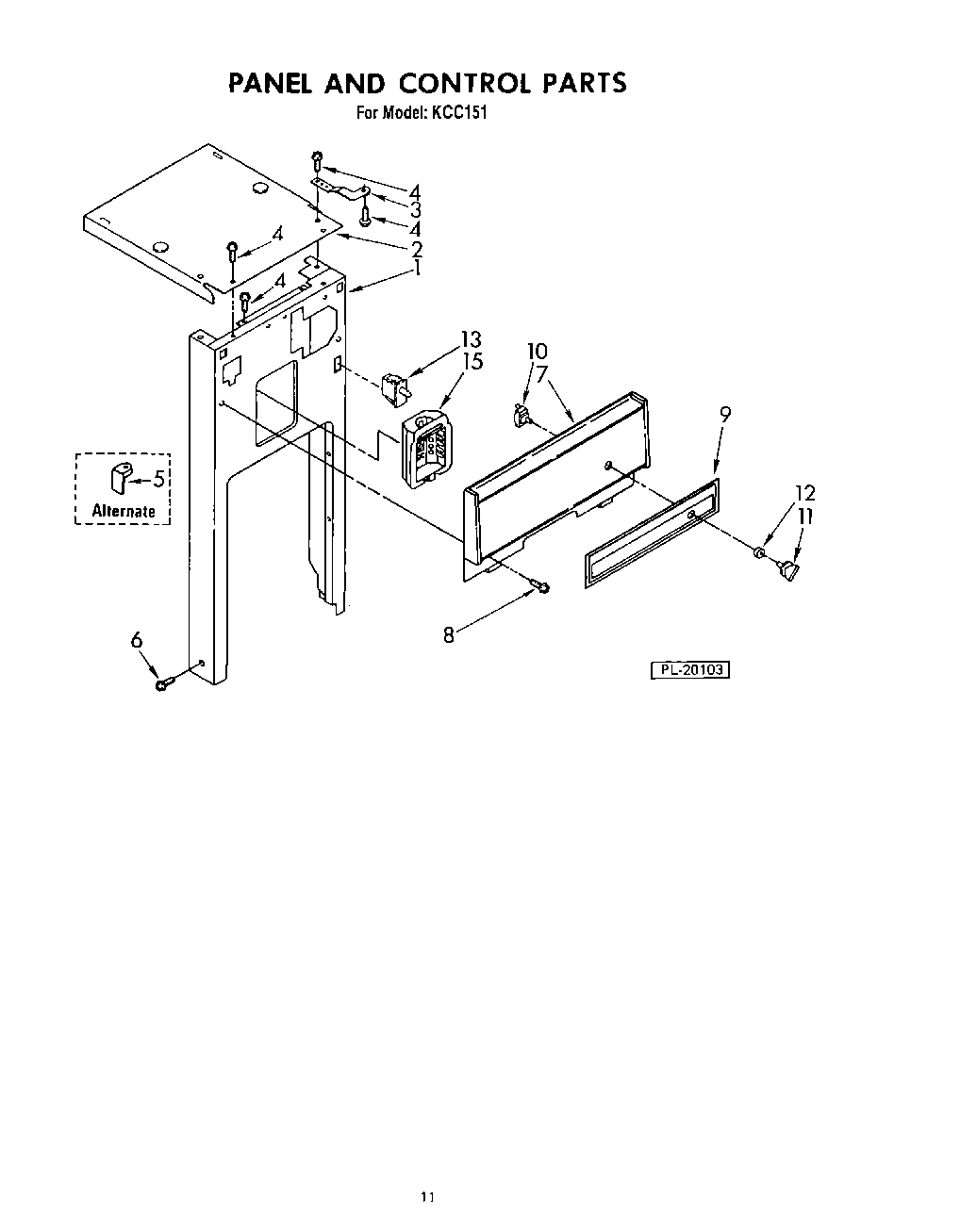

KCC150 11 – PANEL AND CONTROL (KCC151)

Products

PositionProduct
1Panel, Front Frame
2Cover, Top (Recessed)
3Bracket, Retainer (R.H.)
3Bracket, Retainer (L.H.)
4Screw, 8-18 x 1/2
5Bracket, Mounting (2) (Auxiliary)
6Screw, 8 x 1/2AB
7Escutcheon
8Screw, 6-20 x 3/8 (2)
9Insert, Escutcheon
10Switch, Rotary Start-Run
11Knob, Rotary Switch
12Nut, Rotary Switch
13Switch, Drawer Tilt
15Compartment, Air Flow
