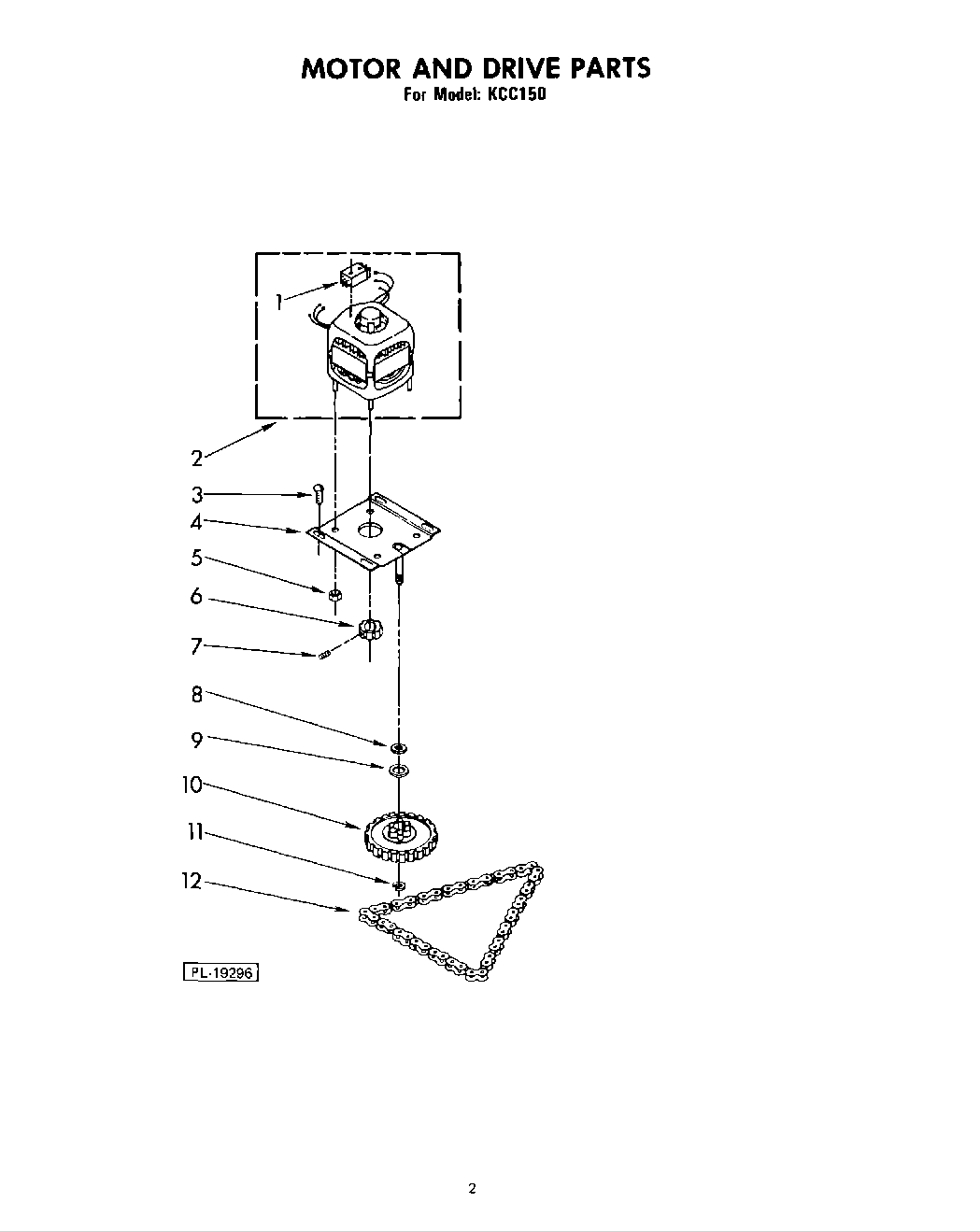

KCC151 02 – MOTOR AND DRIVE (KCC150)
Written by
in
KCC151 02 – MOTOR AND DRIVE (KCC150)
Products
Position
Product
1
Assembly (Use W/242744 Motor)
1
Switch Assembly (Use W/242743 Motor)
2
Motor (Includes Illus. 1)
2
Motor (Includes Illus. 1)
3
Screw, 1/4-20 x 1/2 (4)
4
Drive Mount Assembly
5
Locknut, 10-32 (4)
6
Gear, Drive
7
Pin, Slotted Spring
8
Washer, Wave
9
Washer, Thrust
10
Drive Gear Assembly
11
Clip, Ring
12
Chain, Drive
←
