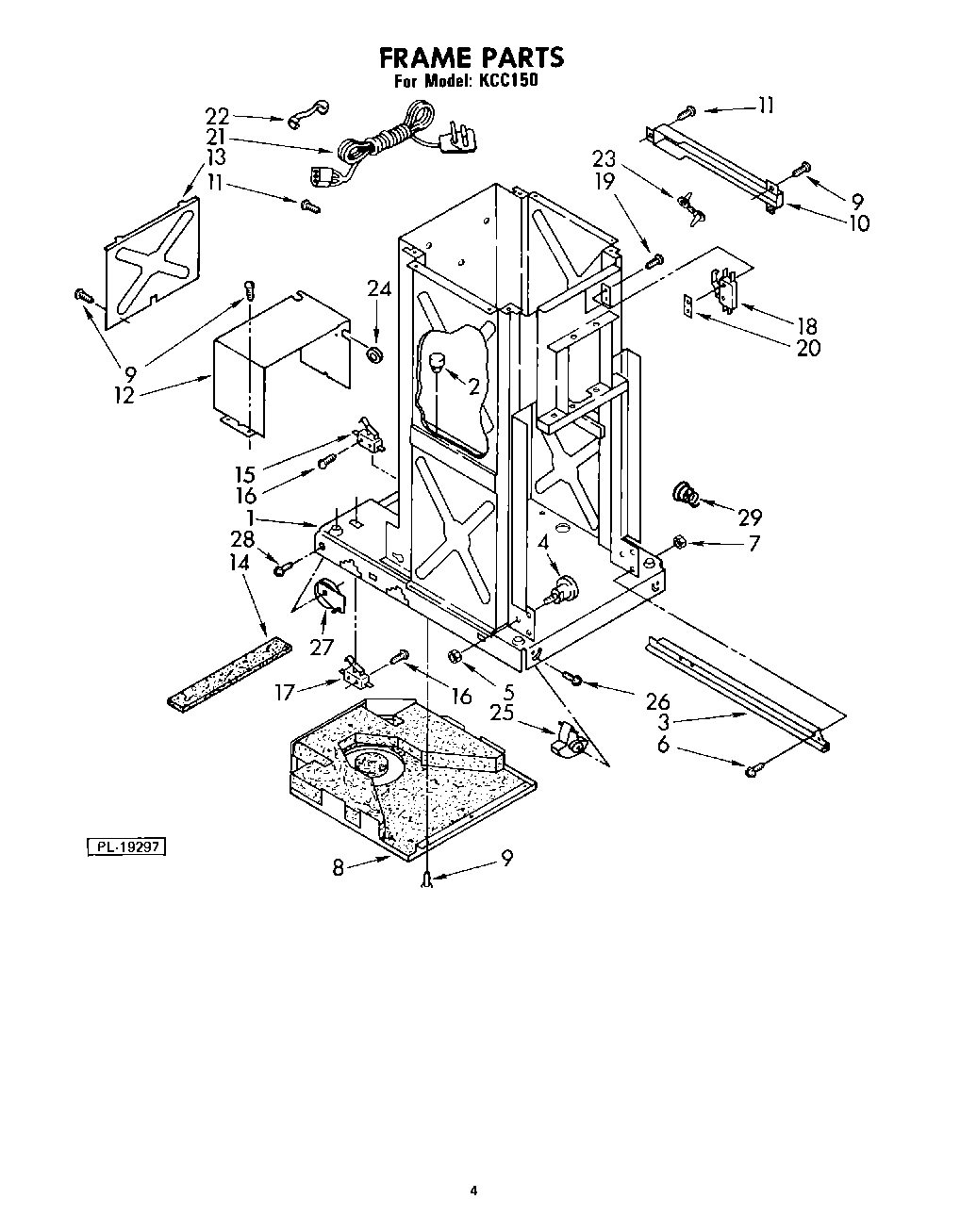

KCC151 04 – FRAME (KCC150)

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	Bumper (4)
3	Frame, Slide (R.H.)
3	Frame, Slide (L.H.)
4	Bearing, Roller (2)
5	Locknut, 3/8-24 (2)
6	Screw, 6-32 x 3/8 (4)
7	Nut, 6-32 (4)
8	Pan Assembly
9	Screw, 8 x 1/2AB
10	Shield, Harness
11	Screw, 8-32 x 5/16
12	Cover, Motor
13	Plate, Motor Cover
14	Barrier, Glass
15	Switch, Drawer Safety
16	Screw, 6-32 x 7/8
17	Switch, Drawer Tilt
18	Switch, Top Limit & Directional
19	Screw, 6-20 x 1 (2)
20	Plate, Nut
21	Cord, Power
22	Bushing, Cord
23	Clamp, Wire
24	Grommet, Motor Cover
25	Leveler (2)
26	Screw & Washer Assembly (2)
27	Wheel Assembly, R.H.
27	Wheel Assembly, L.H.
28	Screw 10-24 x 3/8 (4)
29	Spring, Container
