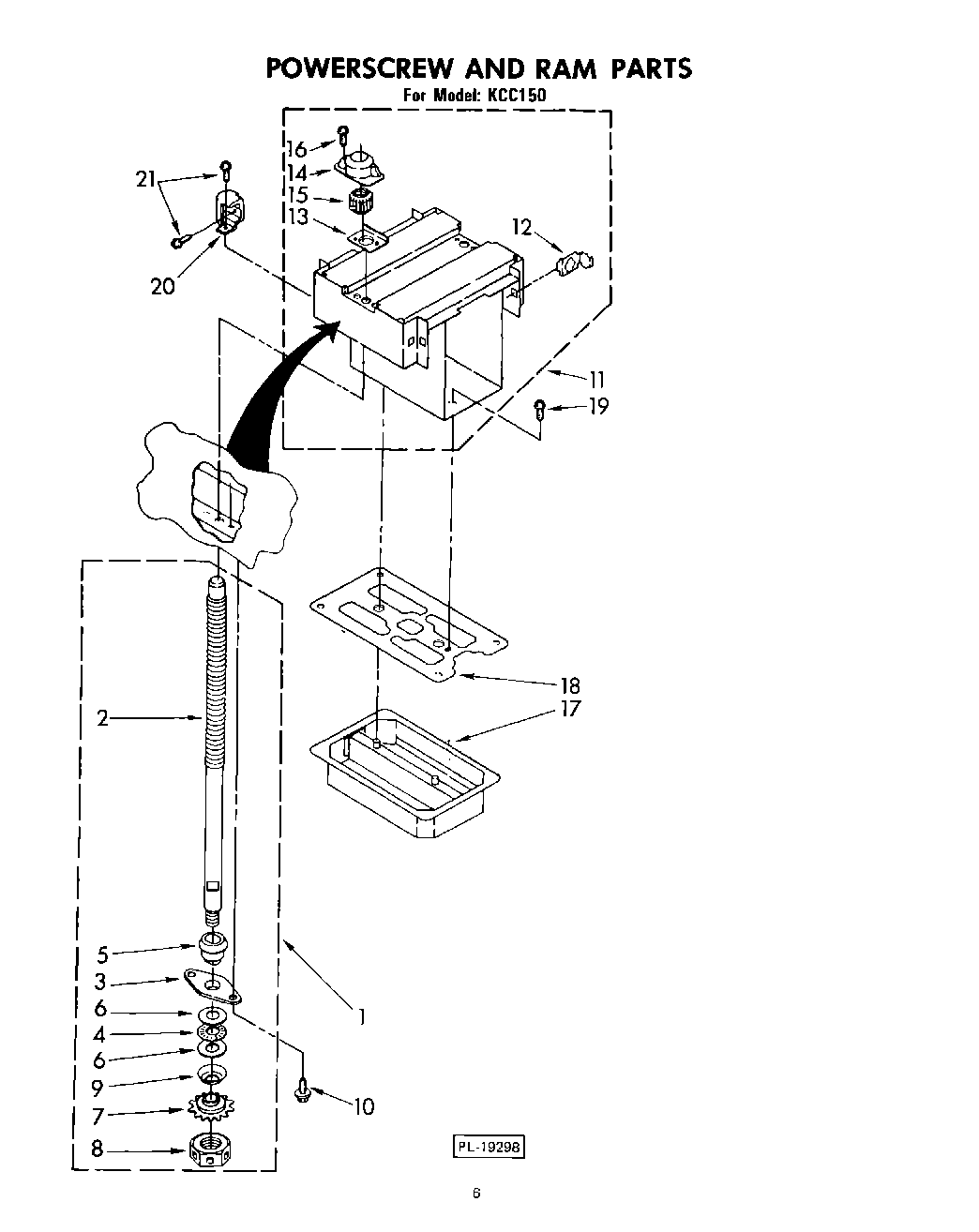

KCC151 06 – POWERSCREW AND RAM (KCC150)

Products

Position	Product
1	Screw, Power Complete Assembly (2)
2	Screw, Power (Available Only As Complete Assembly) Included in No. 1
3	Plate, Bearing (2) Included in No. 1
4	Bearing, Needle (2) Included in No. 1
5	Hub, Power Screw (2) Included in No. 1
6	Race, Thrust (4) Included in No. 1
7	Sprocket Washer (2) Included in No. 1
8	Nut, Power Screw (2) Included in No. 1
9	Washer, Cone (2) Included in No. 1
10	Screw, 10-24 x 3/4 (4) Included in No. 1
11	Ram Assembly
12	Pad, Ram (8) Included in No. 11
13	Plate, Doubler (2) Included in No. 11
14	Retainer, Nut (2) Included in No. 11
15	Nut, Power (2) Included in No. 11
16	Screw 10-24 x 3/8 (4)
17	Cover, Ram
18	Wiper, Ram
19	Screw, 10-16 x 1/2
20	Block, Container Stop
21	Screw, 8-18 x 3/8 (2)
