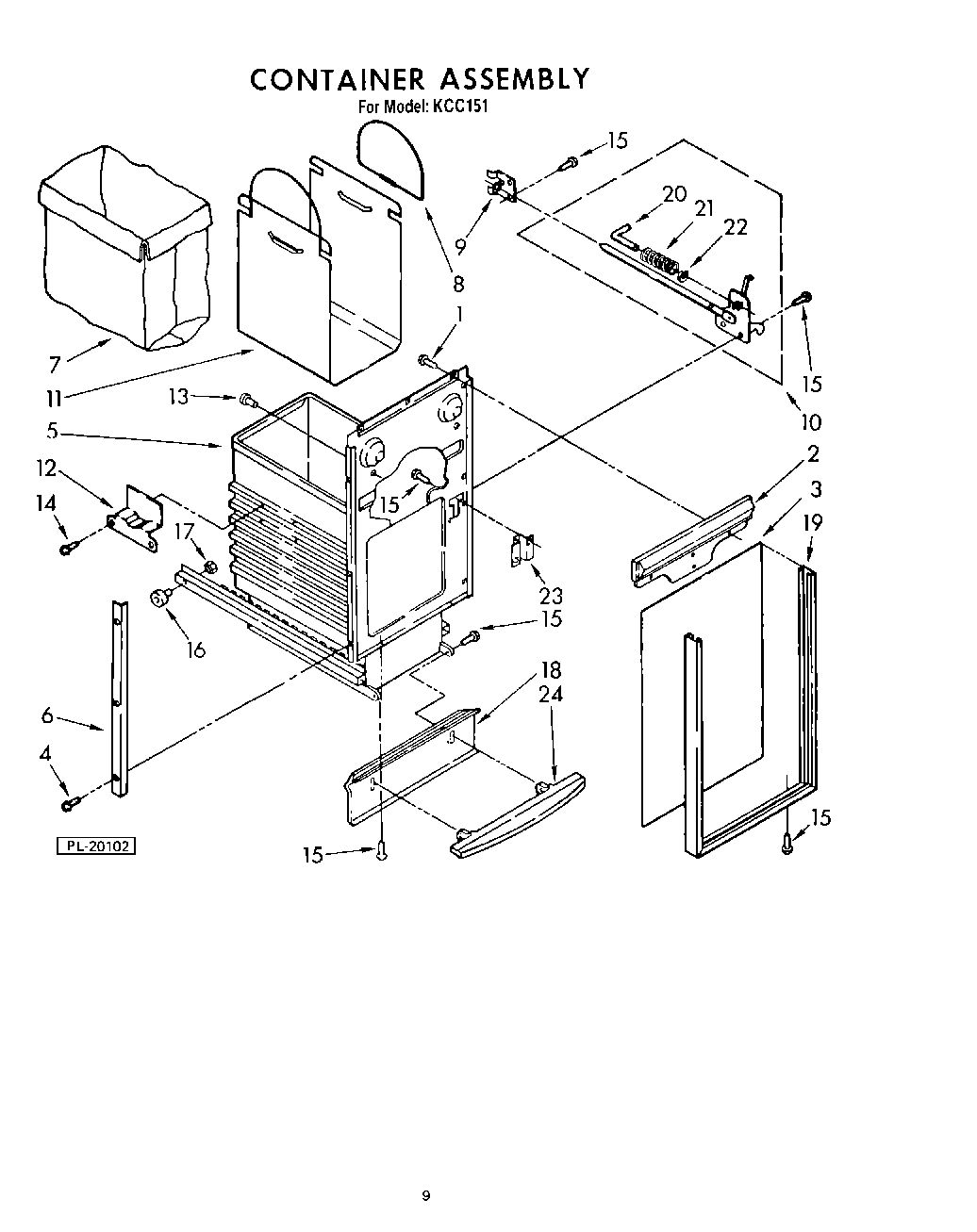

KCC151 09 – CONTAINER (KCC151)

KCC151 09 – CONTAINER (KCC151)

Written by

in

KCC151 09 – CONTAINER (KCC151)

Products

PositionProduct
1Screw, 8-18 x 1/2
2Handle, Container
3Panel (White & Black)
3Panel (Harvest Gold & Almond)
4Screw, 6-20 x 3/8
5Container Assembly
6Plate, Trim
7Carrier, Bag (Includes Illus. 8)
8Handle, Bag Carrier
9Guide, Rear Latch
10Latch Assembly
11Available At Local Dealer
12Cam, Actuator
13Bumper, Container (2)
14Screw, 8-18 x 1/2
15Screw, 8 x 1/2AB
16Container, Bearing Roller
17Locknut, 3/8-24
18Toe Plate
19Trim, Container (Front)
20Pin (Included In No.10)
21Spring Latch (Included In No.10)
22Ring “E“ (Included In No.10)
23Plate, Latch
24Pedal, Foot
