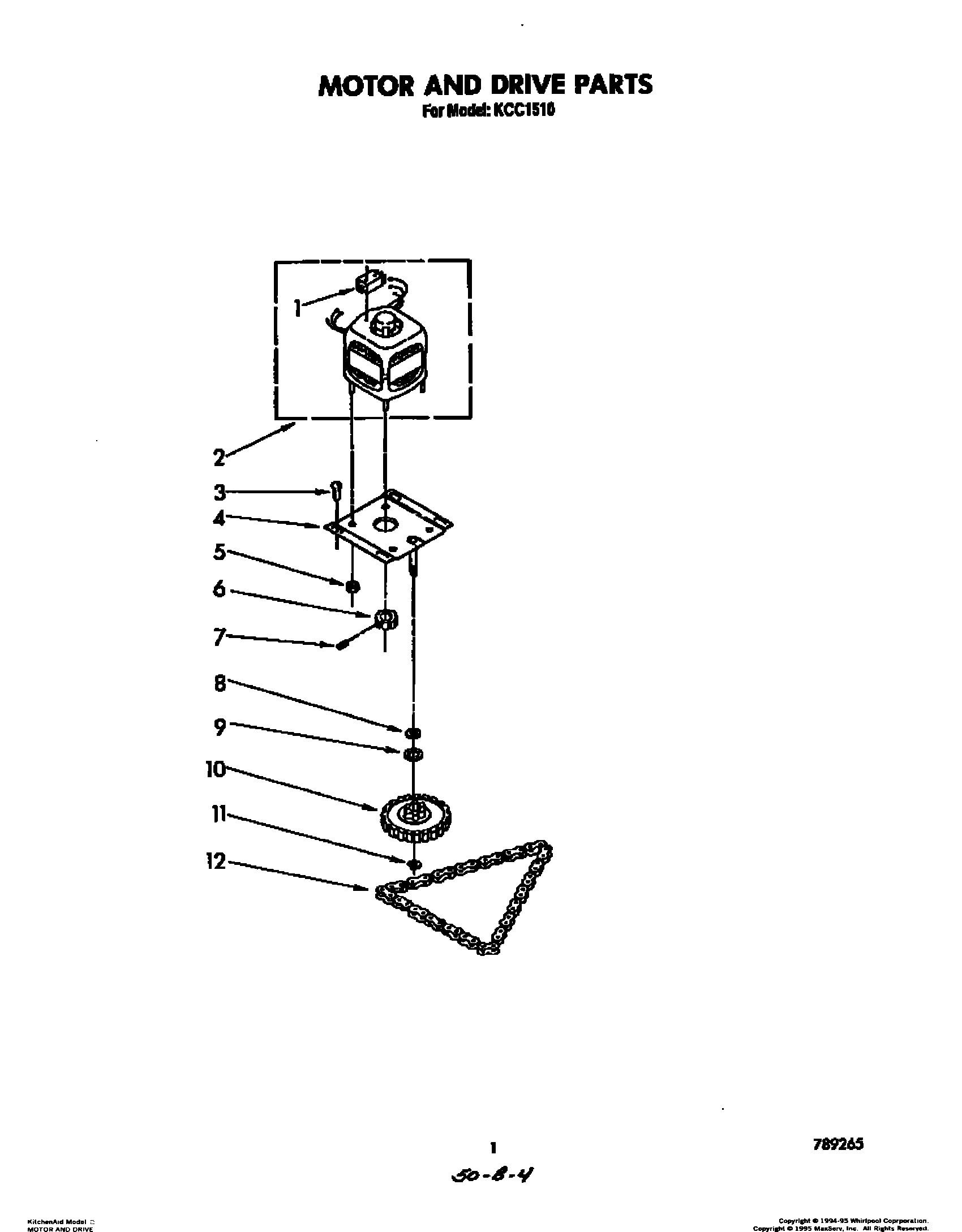

KCC1510 02 – MOTOR AND DRIVE, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instructions, Installation (French)
	Instructions, Installation (English)
	Manual, Owner`s
	Diagram, Wiring
1	W10439651 Whirlpool Air Conditioner Motor Drive
3	Screw. 1/4-20 x 1/2 (4)
4	776327 Whirlpool Compactor Motor Plate
5	WP776338 Whirlpool Compactor Nut
6	GEAR KIT COMPACTOR
7	WP454512 Whirlpool Compactor Spring Pin
8	776035 Whirlpool Compactor Washer
9	W11214485 Whirlpool Compactor Washer
11	WP776036 Whirlpool Compactor Clip
12	CHAIN-DRVE
