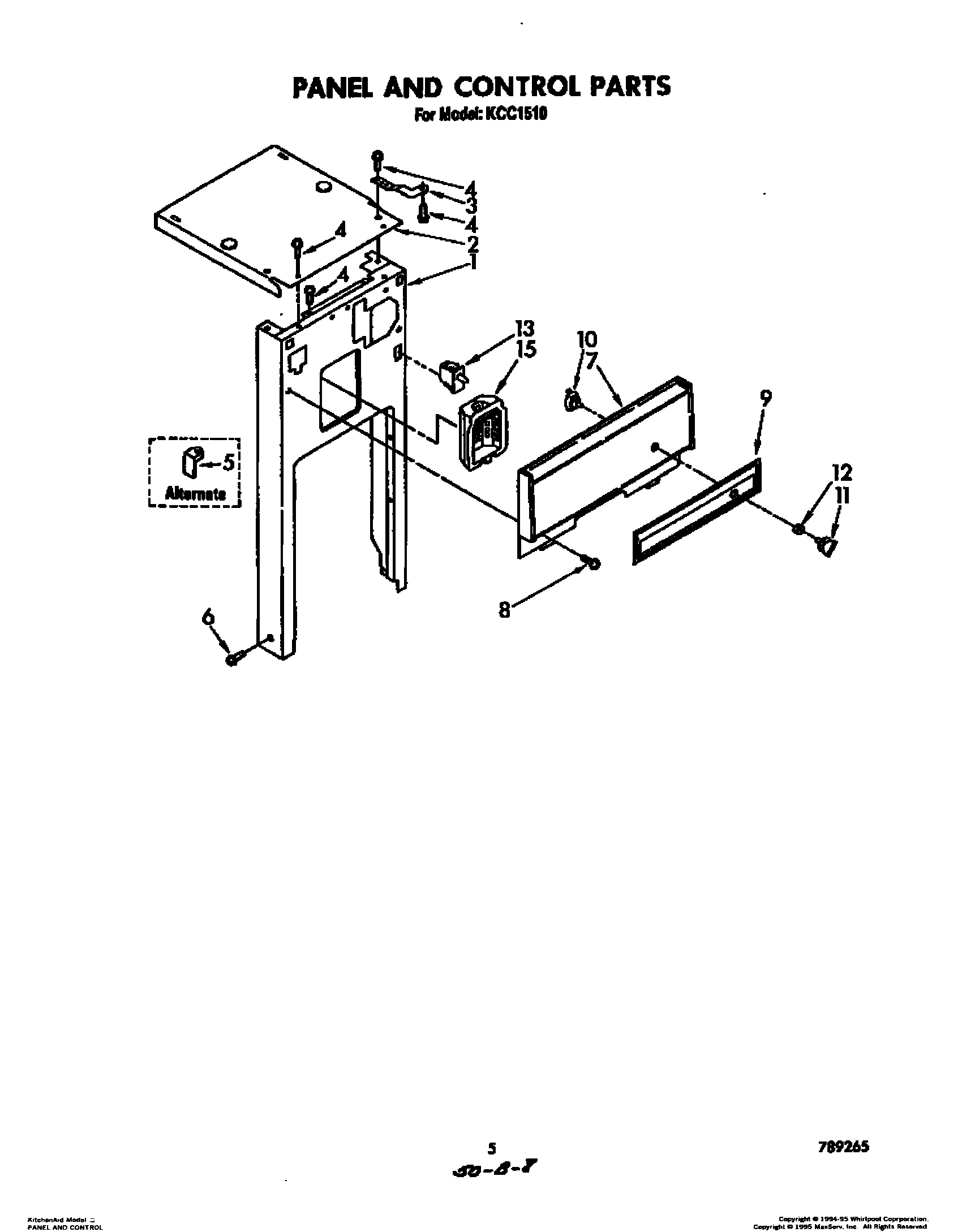

KCC1510 06 – PANEL AND CONTROL

Products

Position	Product
1	Panel, Front Frame
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	WP302868 Whirlpool Screw
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control
8	Screw, 6-20 x 3/8 (2)
9	Insert, Escutcheon
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	776594 Whirlpool Power Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	Switch, Drawer Tilt
15	Paint, Spray 13 Oz. (Stanford Brown)
15	Paint, Touch-Up 1/2 Oz. (Stanford Brown)
15	WPL 675167
15	Holder, Deodorant Storage
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	350956 Whirlpool Spray Assembly
15	72017 Whirlpool Appliance Touch-Up Paint White
15	WP72107 Whirlpool Touchup
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	72113 Whirlpool Touch-Up Paint
15	Golden Harvest
15	Toast
15	Paint, Spray (13 Oz.) (Platinum)
15	WPL 72112
15	285006 Whirlpool Spray
15	72032 Whirlpool Touch Up Paint Black
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	350930 Whirlpool White Spray Paint
