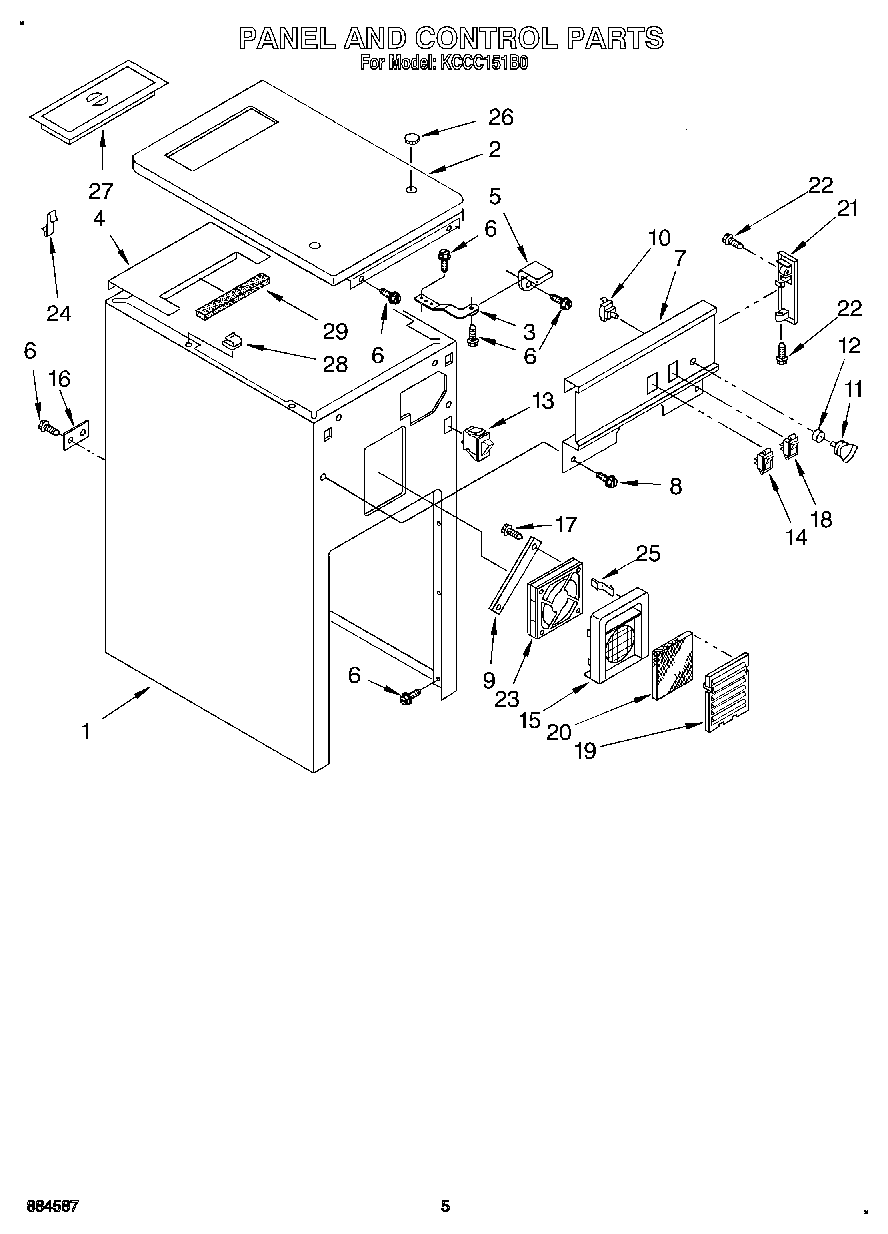

KCCC151B0 05 – PANEL AND CONTROL

KCCC151B0 05 – PANEL AND CONTROL

Written by

in

KCCC151B0 05 – PANEL AND CONTROL

Products

PositionProduct
1Cabinet
2Top, Cabinet
3W11729437 Whirlpool Retaining Bracket
4Plate, Bag Storage
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11776594 Whirlpool Power Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
14WP4314961 Whirlpool Lite Switch
159871893 Whirlpool Compactor Fan Filter
16Plate, Power Cord
17WP3351614 Whirlpool Screw
19Cover, Air Freshener (Black)
20WP4151750 Whirlpool Charcoal Air Filter
21End Cap, Escutcheon (L.H.)
21End Cap, Escutcheon (R.H.)
254151897 Whirlpool Compactor Clip
26Plug, Hole
27Frame & Lid Assembly
28Clip, Top Mount (2)
29Barrier, Glass
