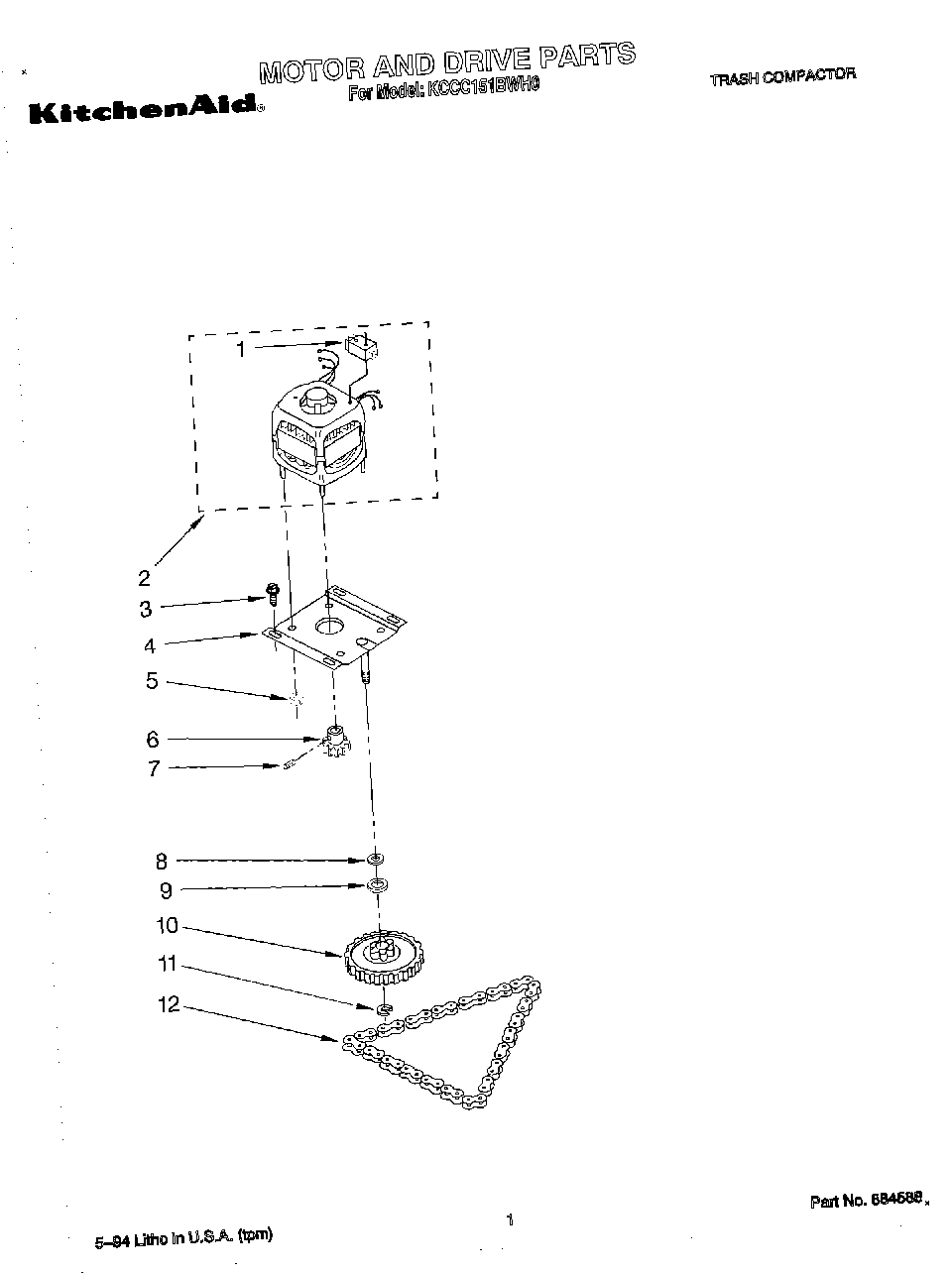

KCCC151BWH0 01 – MOTOR AND DRIVE, LIT/OPTIONAL

KCCC151BWH0 01 – MOTOR AND DRIVE, LIT/OPTIONAL

Products

PositionProduct
Instructions, Installation
Guide, Use & Care
Sheet, Tech
Wiring Diagram
1W10439651 Whirlpool Air Conditioner Motor Drive
3WP8204624 Whirlpool Bolt
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
129870118A Whirlpool Compactor Bracket Kit
12CHAIN-DRVE
12Harness, Wiring
