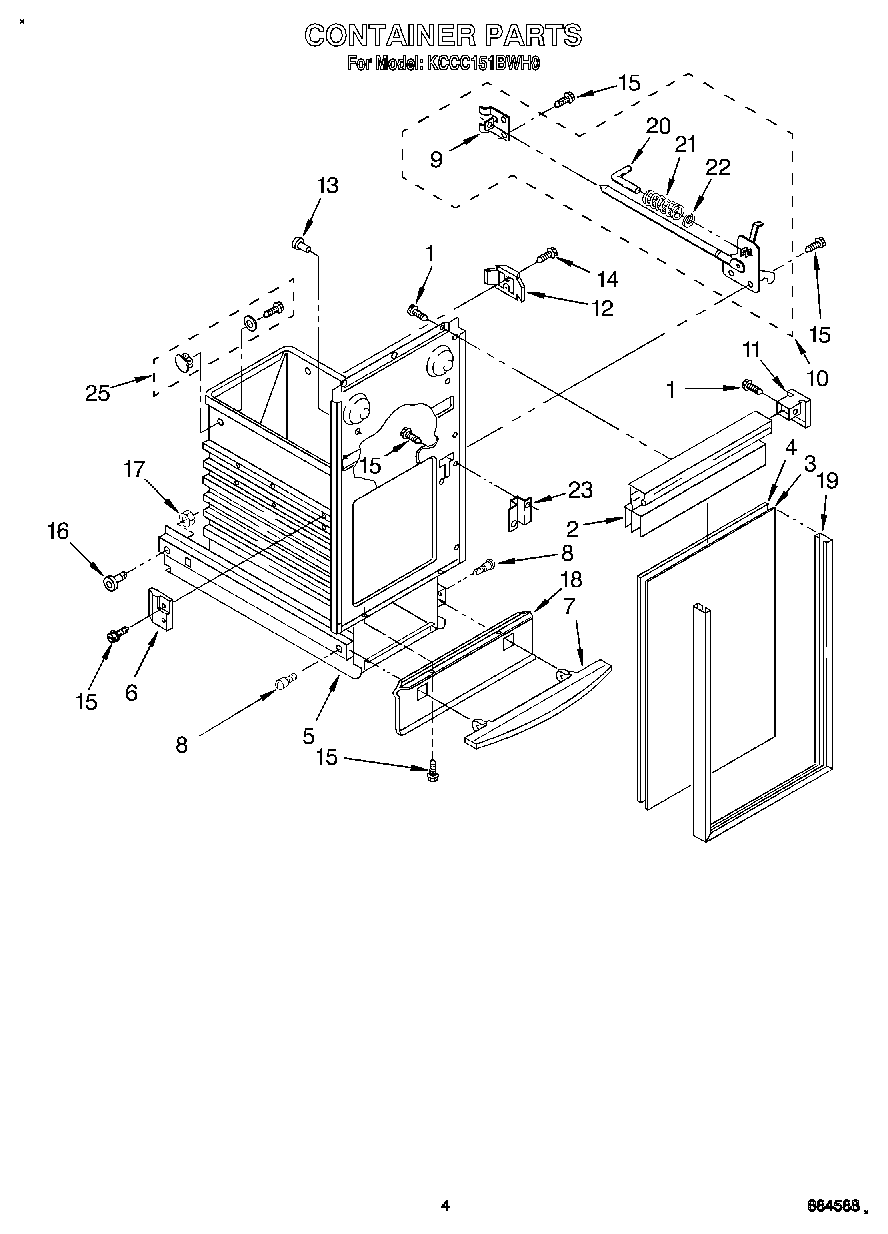

KCCC151BWH0 04 – CONTAINER

Products

PositionProduct
1WPW10139210 Whirlpool Screw
2Handle, Container
3Panel, Container (White & Black)
4Panel, Spacer
5WPW10451276 Whirlpool Compactor Container
6Guide, Container (2)
7WP9871031 Whirlpool Compactor Foot Pedal
8WP780263 Whirlpool Compactor Screw
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
11End Cap, Handle (R.H.)
11End Cap, Handle (L.H.)
129871125 Whirlpool Compactor Actuator
13Bumper, Container (2)
14Screw (2)
15WP489069 Whirlpool Compactor Screw
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18W10917704 Whirlpool Compactor Guard
19Trim, Container (Front)
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
23775665 Whirlpool Compactor Plate Latch
25RETAINER, BAG
