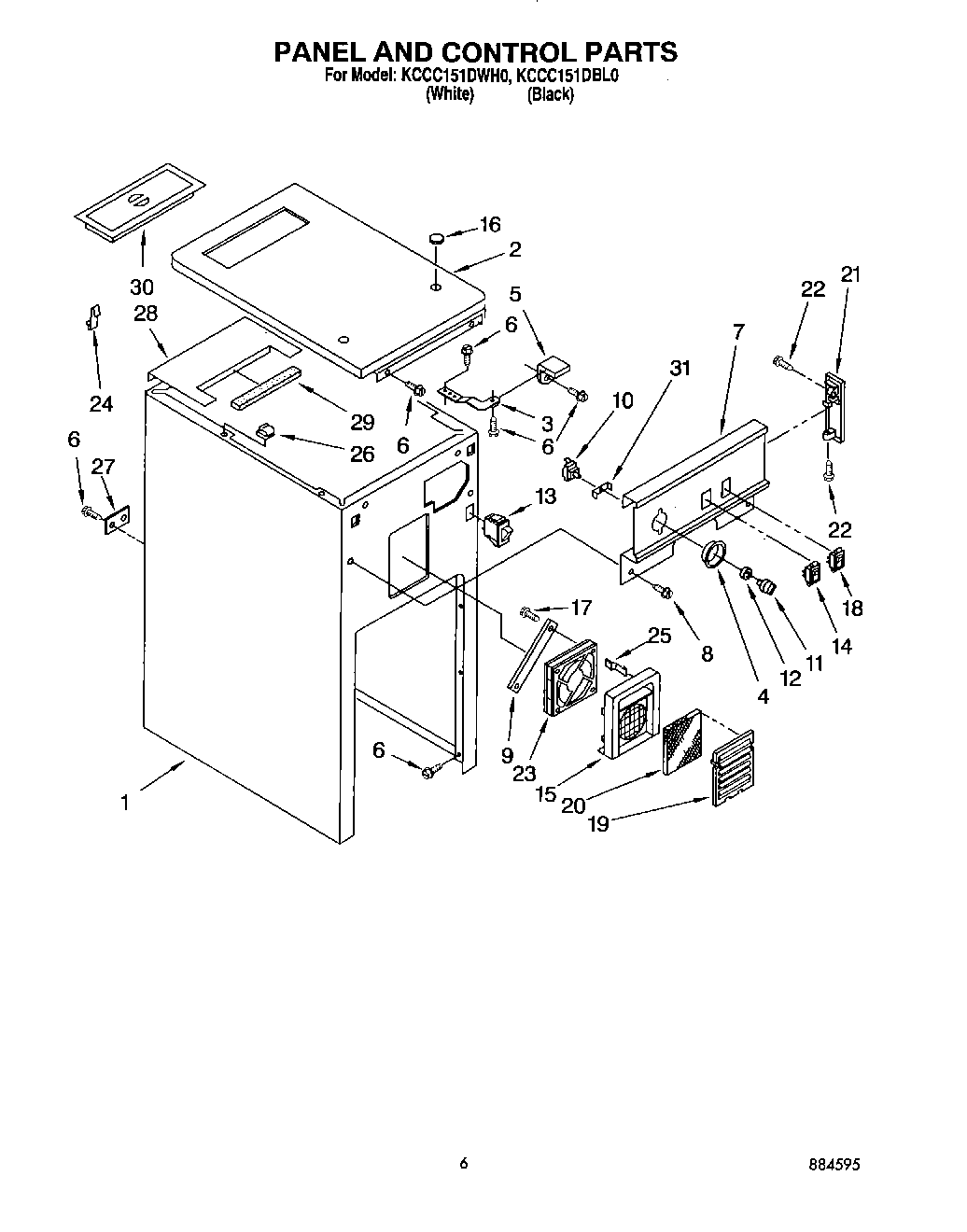

KCCC151DBL0 06 – PANEL AND CONTROL

Products

PositionProduct
1Cabinet (Black)
1Cabinet
2Top, Cabinet (Black)
2Top, Cabinet (White)
3W11729437 Whirlpool Retaining Bracket
4Bezel (White)
4Bezel
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control (White)
7Escutcheon, Control (Black)
8Screw, 6-20 x 3/8 (2)
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11WP9871800 Whirlpool Compactor Switch Knob
11WP9871799 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
14WP9872161 Whirlpool Compactor Switch Off
159871893 Whirlpool Compactor Fan Filter
16Plug, Hole
164151479 Whirlpool Compactor Button Plug
17WP3351614 Whirlpool Screw
18Switch, Air Freshener (Black)
18Switch, Air Freshener (White)
19WP9871099 Whirlpool Air Freshener Cover
19Cover, Air Freshener (White)
20WP4151750 Whirlpool Charcoal Air Filter
21End Cap, Left Hand (Black)
21End Cap, Left Hand (Black Right Hand)
21End Cap, Left Hand (White)
21End Cap (White, LH)
254151897 Whirlpool Compactor Clip
26Clip, Top Mount (2)
27Plate, Power Cord
28Plate, Bag Storage
29Barrier, Glass
30Lid, Bag Storage (White)
30Lid, Bag Storage (Black)
31Bracket, Switch
