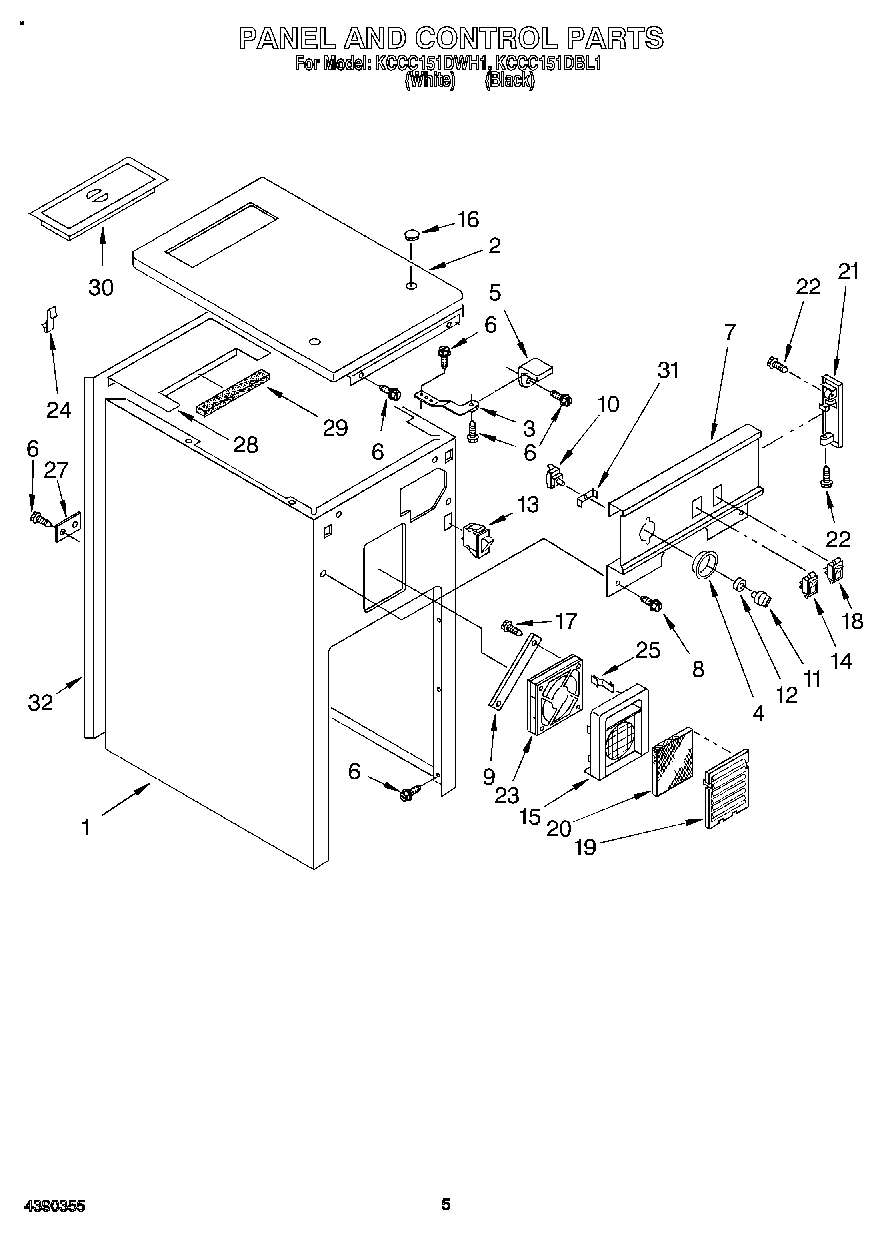

KCCC151DWH1 05 – PANEL AND CONTROL

Products

Position	Product
1	Cabinet
1	WP9870913 Whirlpool Cabinet
2	Top, Cabinet (White)
2	Top, Cabinet (Black)
3	W11729437 Whirlpool Retaining Bracket
4	Bezel (White)
4	Bezel
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control (Black)
7	Escutcheon, Control (White)
8	Screw, 6-20 x 3/8 (2)
9	4152703 Whirlpool Fan Strap
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	WP9871800 Whirlpool Compactor Switch Knob
11	WP9871799 Whirlpool Compactor Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	WP4387911 Whirlpool Refrigerator Switch
14	WP9872161 Whirlpool Compactor Switch Off
15	9871893 Whirlpool Compactor Fan Filter
16	4151479 Whirlpool Compactor Button Plug
16	Plug, Hole
17	WP3351614 Whirlpool Screw
18	Switch, Air Freshener (Black)
18	Switch, Air Freshener (White)
19	Cover, Air Freshener (White)
19	WP9871099 Whirlpool Air Freshener Cover
20	WP4151750 Whirlpool Charcoal Air Filter
21	End Cap (White, LH)
21	End Cap, Left Hand (White)
21	End Cap, Left Hand (Black Right Hand)
21	End Cap, Left Hand (Black)
25	4151897 Whirlpool Compactor Clip
27	Plate, Power Cord
28	Plate, Bag Storage
29	Barrier, Glass
30	Lid, Bag Storage (White)
30	Lid, Bag Storage (Black)
31	Bracket, Switch
32	Panel, Back
