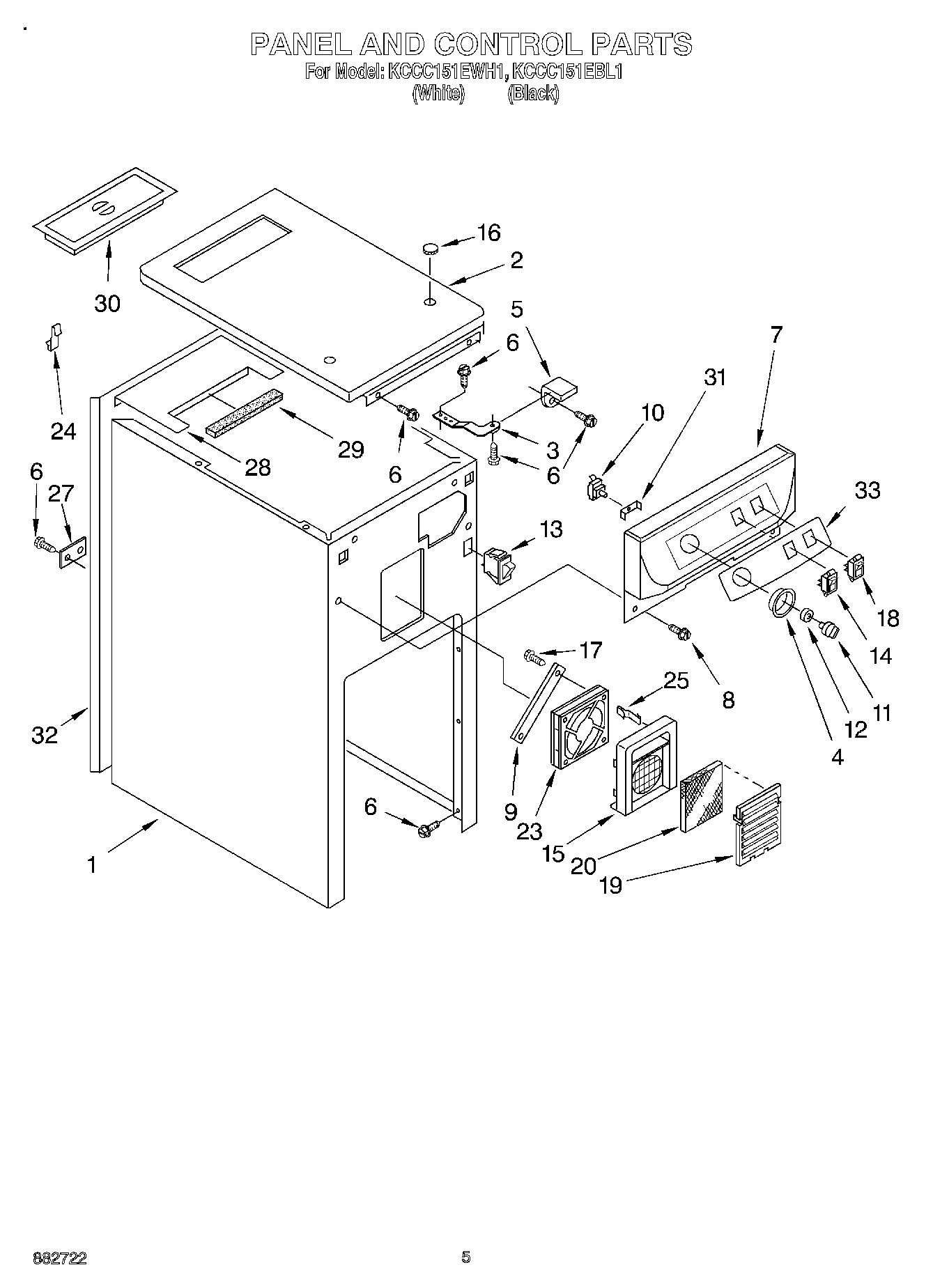

KCCC151EWH1 05 – PANEL AND CONTROLadmin2025-04-26T12:29:02+00:00KCCC151EWH1 05 – PANEL AND CONTROL
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 1 | WP9870913 Whirlpool Cabinet |
| 2 | Top, Cabinet (White) |
| 2 | Top, Cabinet (Black) |
| 3 | W11729437 Whirlpool Retaining Bracket |
| 4 | Bezel |
| 4 | Bezel (White) |
| 5 | WP780239 Whirlpool Compactor Bracket Retainer |
| 6 | WP489478 Whirlpool Refrigerator Screw |
| 7 | Escutcheon, Control (Black) |
| 7 | Escutcheon, Control (White) |
| 8 | Screw |
| 9 | 4152703 Whirlpool Fan Strap |
| 10 | 675382 Whirlpool Trash Compactor On Off Start Top Limit Switch |
| 11 | WP9871800 Whirlpool Compactor Switch Knob |
| 12 | WP777383 Whirlpool Compactor Nut |
| 13 | WP4387911 Whirlpool Refrigerator Switch |
| 14 | WP9872161 Whirlpool Compactor Switch Off |
| 15 | 9871893 Whirlpool Compactor Fan Filter |
| 16 | Plug, Hole |
| 16 | 4151479 Whirlpool Compactor Button Plug |
| 17 | WP3351614 Whirlpool Screw |
| 18 | Switch, Air Freshener (White) |
| 18 | Switch, Air Freshener (Black) |
| 19 | WP9871099 Whirlpool Air Freshener Cover |
| 19 | Cover, Air Freshener (White) |
| 20 | WP4151750 Whirlpool Charcoal Air Filter |
| 25 | 4151897 Whirlpool Compactor Clip |
| 27 | Plate, Power Cord |
| 28 | Plate, Bag Storage |
| 29 | Barrier, Glass |
| 30 | Lid, Bag Storage (White) |
| 30 | Lid, Bag Storage (Black) |
| 31 | Bracket, Switch |
| 32 | Panel, Back |
| 33 | Insert, Escutcheon (White) |
| 33 | Insert, Escutcheon (Black) |
