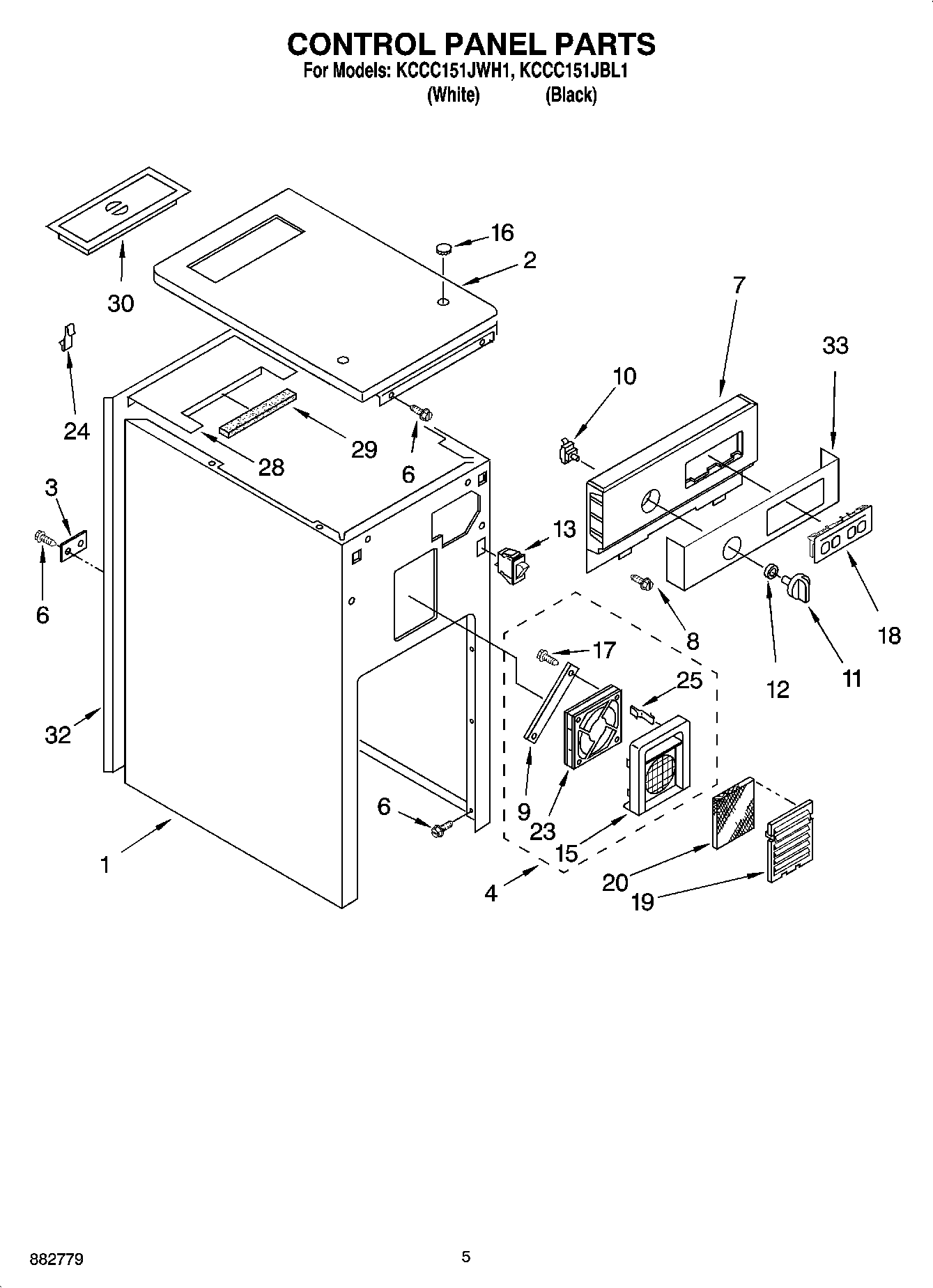

KCCC151JWH1 05 – CONTROL PANEL PARTS

Products

PositionProduct
1Cabinet
1WP9870913 Whirlpool Cabinet
2Top, Cabinet (White)
2Top, Cabinet (Black)
3Plate, Power Cord
6WP489478 Whirlpool Refrigerator Screw
7Escutcheon, Control (White)
7Escutcheon, Control (Black)
8Screw
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11WP9871800 Whirlpool Compactor Switch Knob
11WP9871799 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
159871893 Whirlpool Compactor Fan Filter
16Plug, Hole
164151479 Whirlpool Compactor Button Plug
17WP3351614 Whirlpool Screw
18Switch Assembly (White)
18Switch Assembly (Black)
19WP9871099 Whirlpool Air Freshener Cover
19Cover, Air Freshener (White)
20WP4151750 Whirlpool Charcoal Air Filter
254151897 Whirlpool Compactor Clip
28Plate, Bag Storage
29Barrier, Glass
30Lid, Bag Storage (White)
30Lid, Bag Storage (Black)
32Panel, Back
33Insert, Escutcheon (Black)
33Insert, Escutcheon (White)
