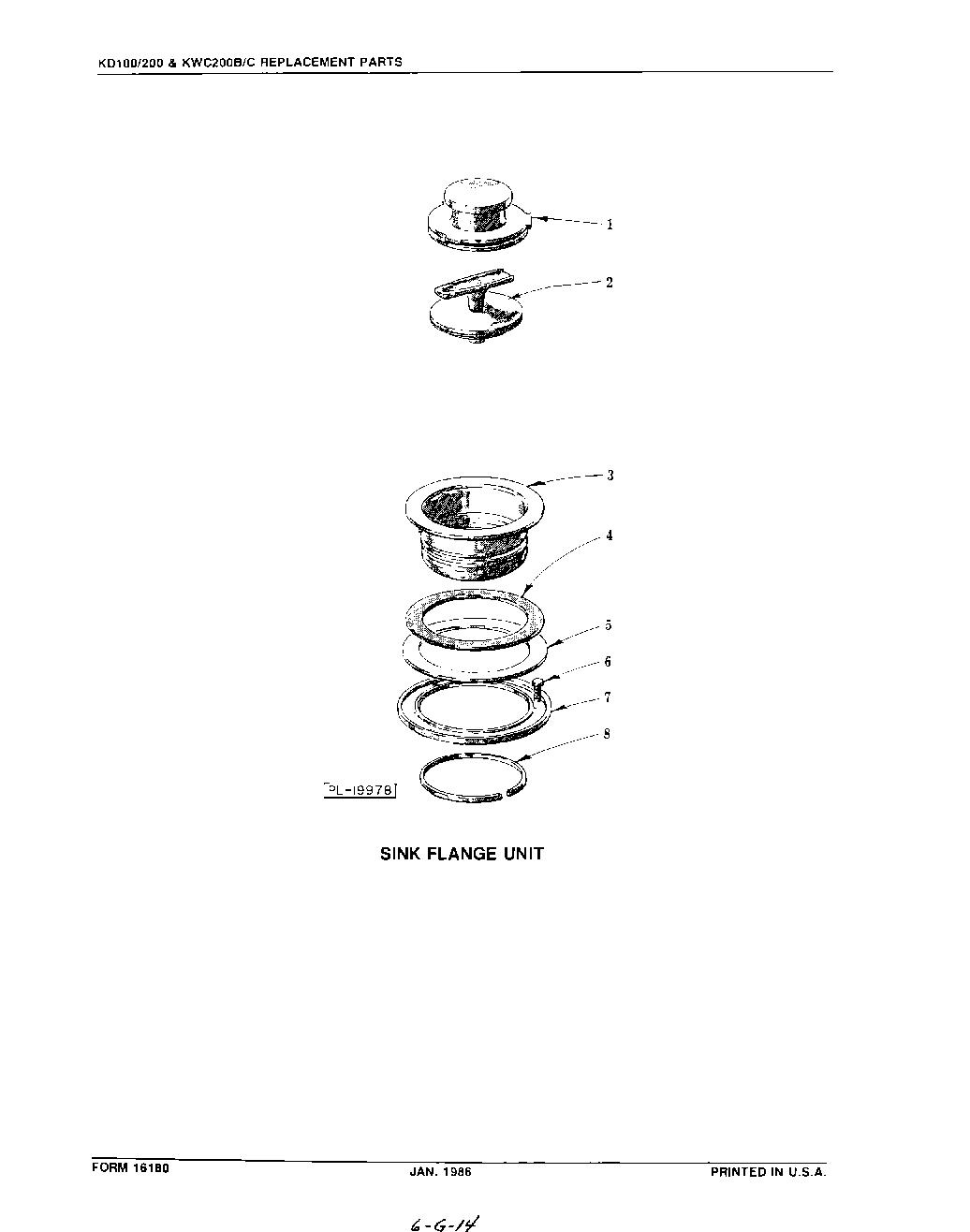

KCDB200S0 03 – SECTION

Products

Position	Product
1	Closure - Vinyl (KD100/KD200)
2	Seal - Closure
3	Flange - Sink
4	Seal - Sink Flange
5	Washer - Pressure
6	Screw - Jack
7	Plate - Support
8	Sink Flange Assy. (Incls. items 3 thru 8)
8	Ring - Snap
8	Closure Assy. (Incls. item 2) (KWC200B/C)
