KCDB250G 01 – SECTION

KCDB250G 01 – SECTION

Written by

in

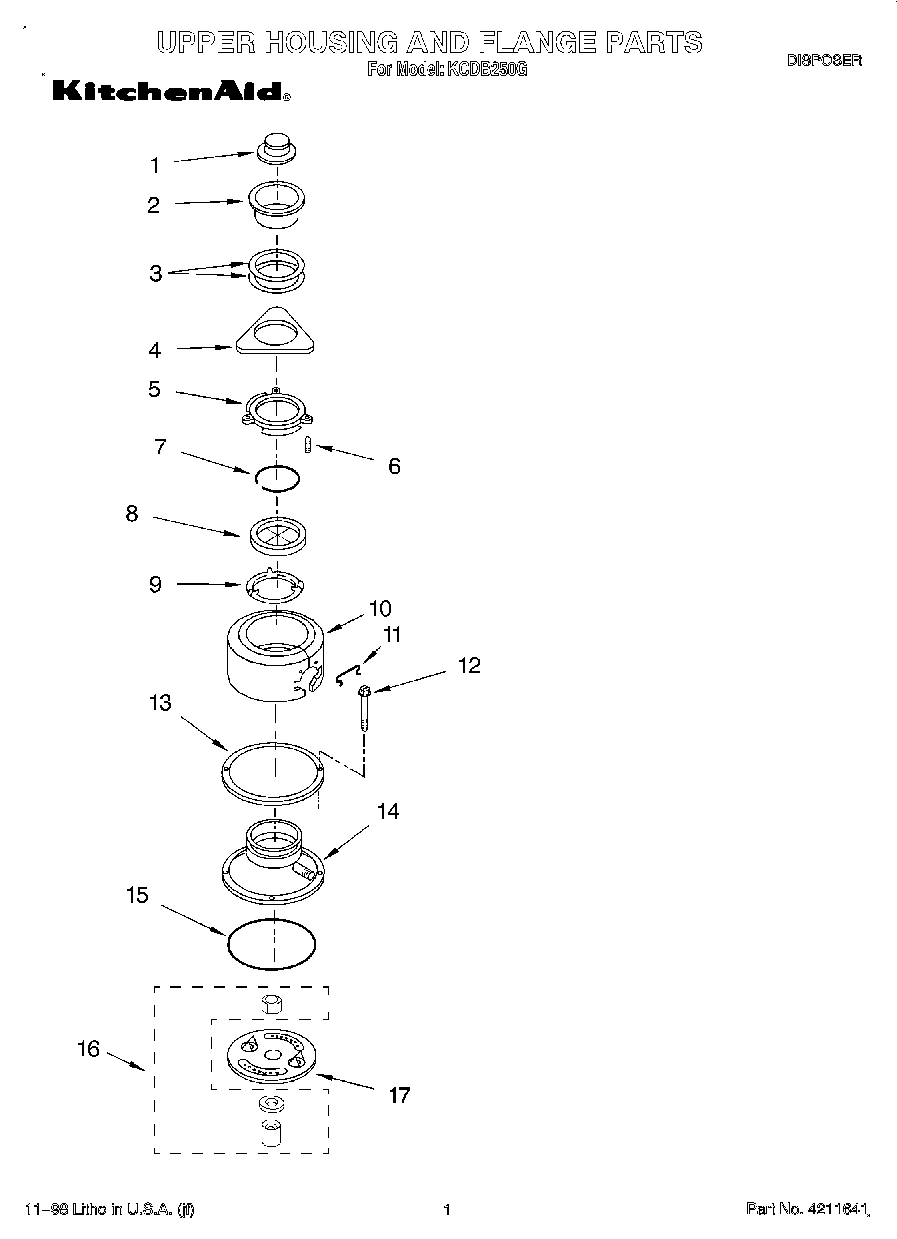

KCDB250G 01 – SECTION

Products

PositionProduct
14211300 Whirlpool Disposer Stopper
24211301 Whirlpool Disposer Flange
3WP4211302 Whirlpool Disposer Seal
44211303 Whirlpool Disposer Flange
54211304 Whirlpool Flange Disposer
64211305 Whirlpool Disposer Screw
74211306 Whirlpool Disposer Ring
84211615 Whirlpool Disposer Gasket
9Flange, Body
10Trim, Shell Asm.
11Clip, Trim Shell
12Bolt, thru
13Ring, Clamping
14Container, Body Asm. (incl.13)
15O-Ring
164211578 Whirlpool Disposer Sleeve
17Shredder Assembly, Rotating
