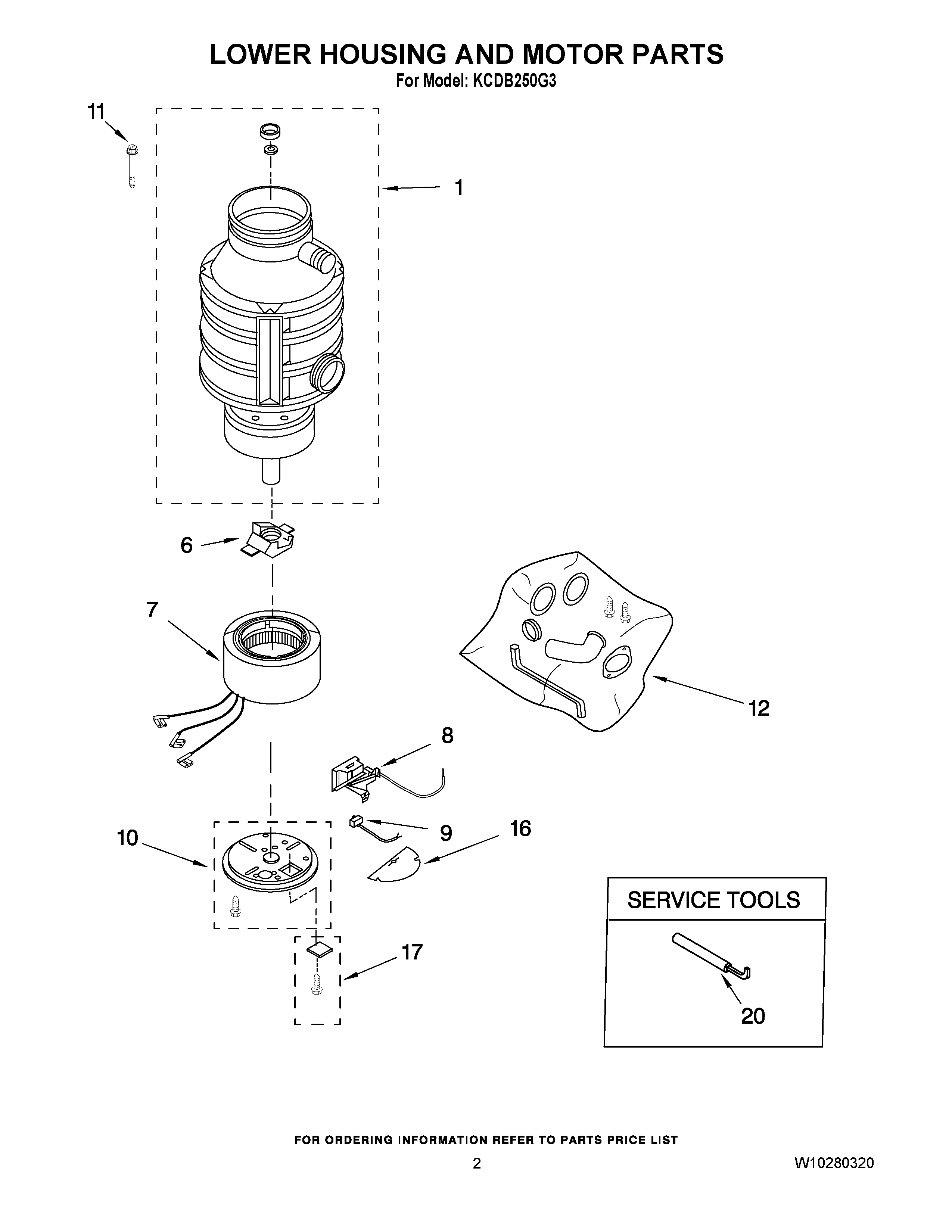

KCDB250G3 02 – LOWER HOUSING AND MOTOR PARTS

KCDB250G3 02 – LOWER HOUSING AND MOTOR PARTS

Written by

in

KCDB250G3 02 – LOWER HOUSING AND MOTOR PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
64211322 Whirlpool Disposer Actuator
78174316 Whirlpool Disposer Stator
88174312 Whirlpool Disposer Switch
9882726 Whirlpool Disposer Overload Protector
108174345 Whirlpool Frame
11Bolt, Thru
128174355A Whirlpool Disposer Installation Kit
164211351 Whirlpool Shield
17Cover, Terminal
20WP8174310 Whirlpool Disposer Wrench
