KCDB250S0 01 – SECTION

KCDB250S0 01 – SECTION

Written by

in

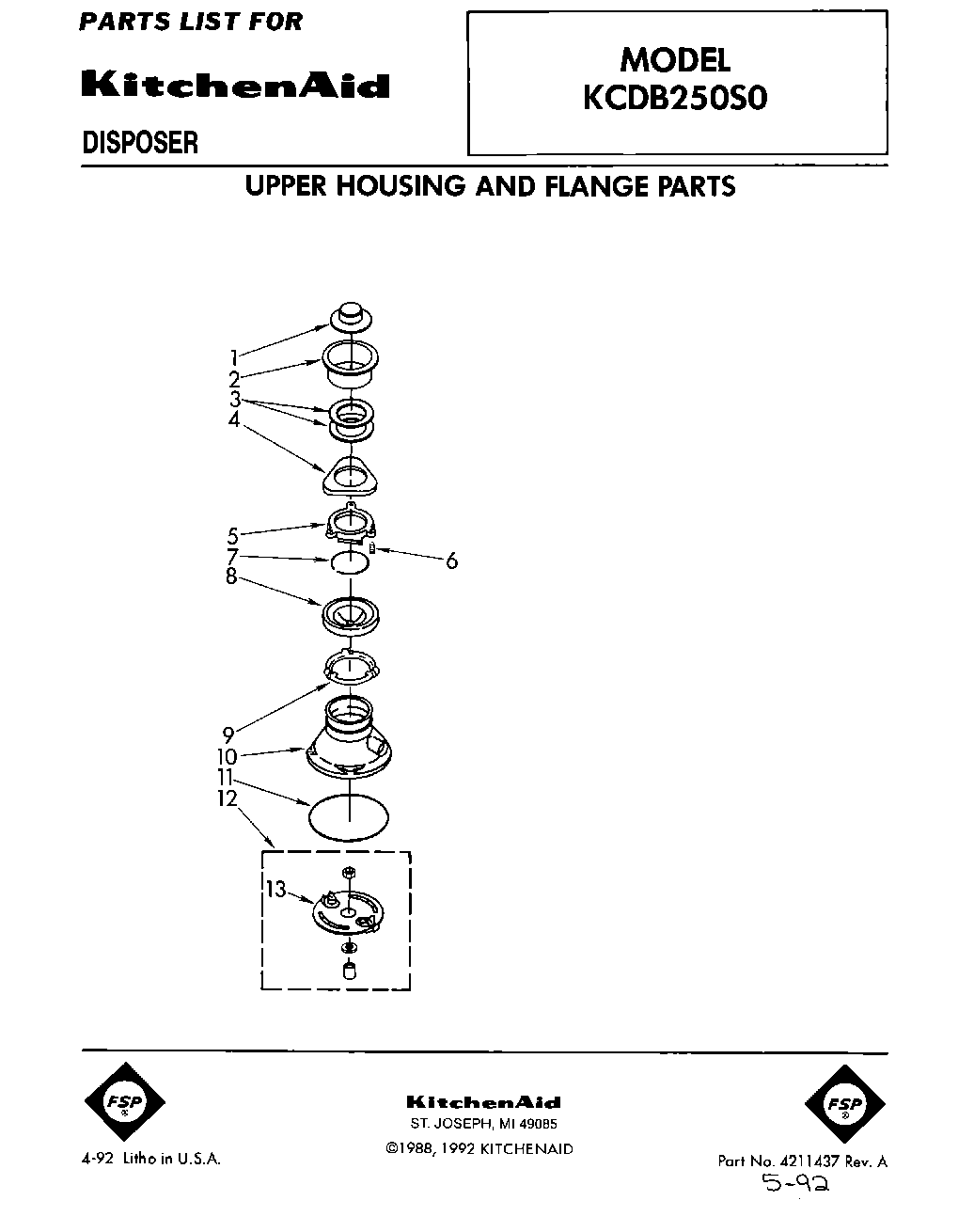

KCDB250S0 01 – SECTION

Products

PositionProduct
14211300 Whirlpool Disposer Stopper
24211301 Whirlpool Disposer Flange
3WP4211302 Whirlpool Disposer Seal
44211303 Whirlpool Disposer Flange
54211304 Whirlpool Flange Disposer
64211305 Whirlpool Disposer Screw
74211306 Whirlpool Disposer Ring
84211615 Whirlpool Disposer Gasket
9Flange, Body
10Container, Body Assembly
11O-Ring
124211578 Whirlpool Disposer Sleeve
13Shredder Assembly, Rotating
